RF-HZ100L
Superisys
| Availability: | |
|---|---|
| Quantity: | |

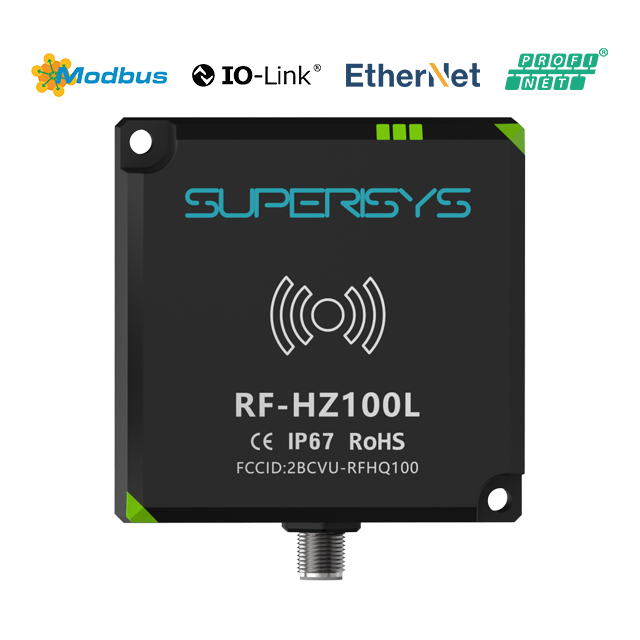

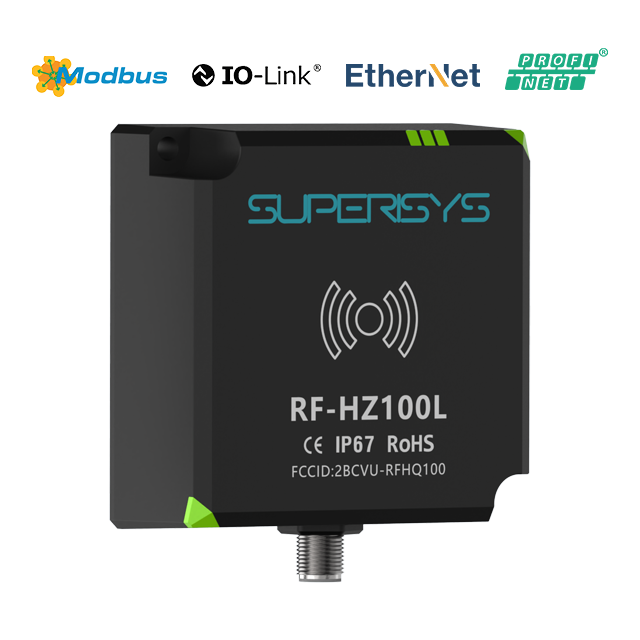

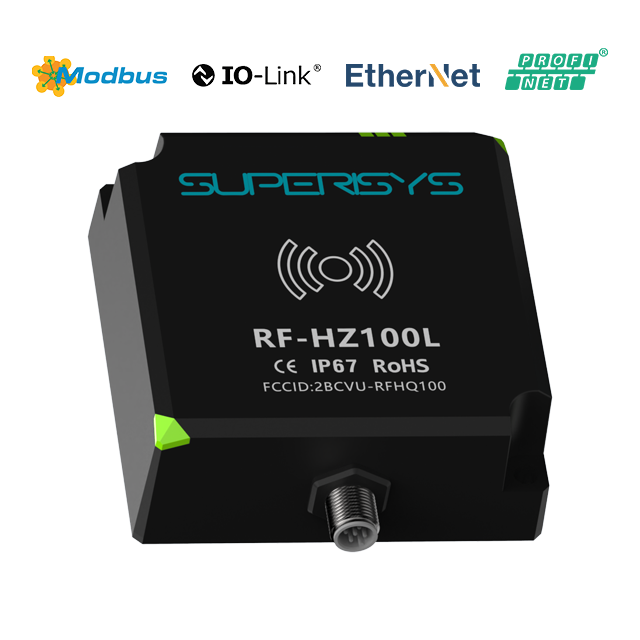

RF-HZ100L is a high-performance, compact integrated UHF RFID Reader designed for industrial automation.
IP67 Protection level. 0-10cm read distance.

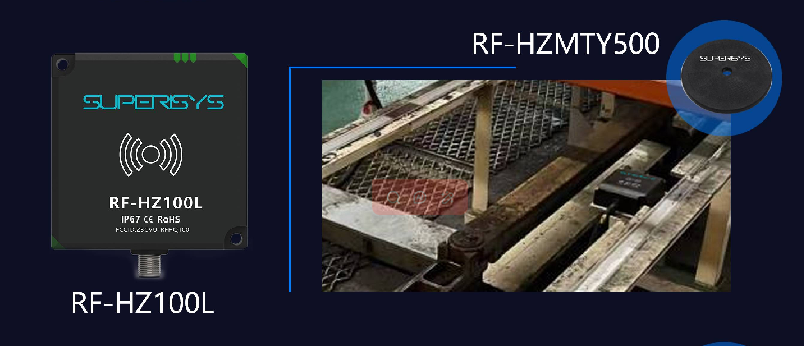

Application case
3C electronics industry
PAD packaging production line
A mobile phone packaging production line
Logistics AGVs and vehicle tracking
Pallet/carton management: Metal or plastic pallets are embedded with anti-metal HF tags, and readers are used to scan in batches at the forklift channel or conveyor belt entrance to update inventory locations in real time.
AGV/robot guidance: AGV locates the path through HF tags embedded in the ground, or recognizes shelf tags to achieve automatic loading and unloading.
High-value material management: Labeling of assets such as precision instruments and molds, combined with fixed readers to monitor the status of in and out of the warehouse.

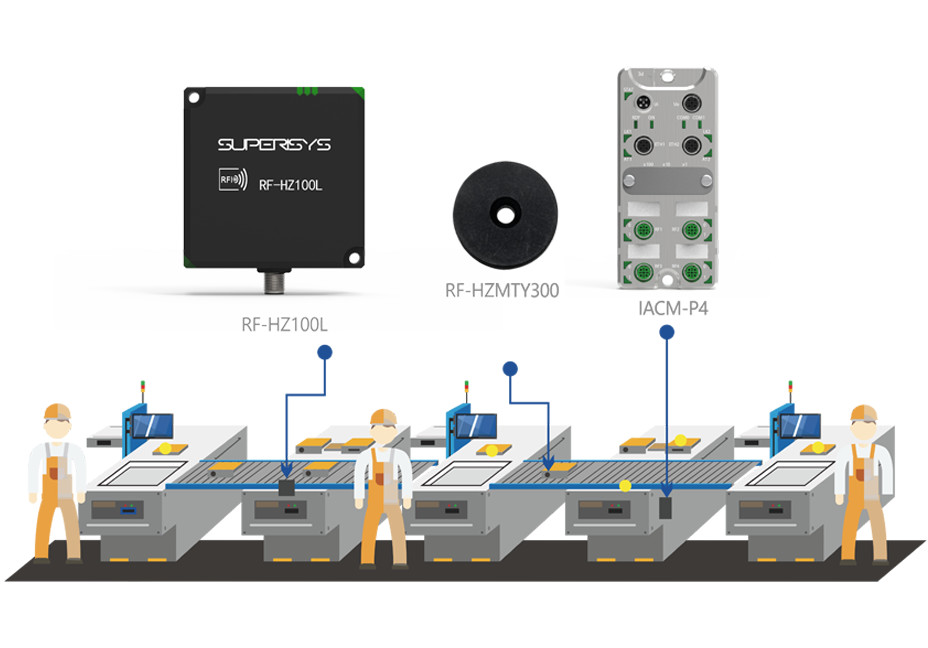

Flexible packaging or production line
RF-HZ100L is a high-performance, compact integrated UHF RFID Reader designed for industrial automation.
IP67 Protection level. 0-10cm read distance.
Application case
3C electronics industry
PAD packaging production line
A mobile phone packaging production line
Logistics AGVs and vehicle tracking
Pallet/carton management: Metal or plastic pallets are embedded with anti-metal HF tags, and readers are used to scan in batches at the forklift channel or conveyor belt entrance to update inventory locations in real time.
AGV/robot guidance: AGV locates the path through HF tags embedded in the ground, or recognizes shelf tags to achieve automatic loading and unloading.
High-value material management: Labeling of assets such as precision instruments and molds, combined with fixed readers to monitor the status of in and out of the warehouse.
Flexible packaging or production line
Product parameters
| Model | RF-HZ100L-R4 | RF-HZ100L-TP | RF-HZ100L-IOL |
| Wireless protocol | ISO 15963 | ||
| Working frequency | 13.56MHz | ||
| Output power | 27.5dBm | ||
| Communication interface | RS485 | Ethernet | IO Link |
| Communication protocol | MODBUS RTU | MODBUS TCP | IO Link V1.1 |
| Communication rate | 9600 ~ 115200bit/s | 10/100M adaptive | 230.4kbps |
| mains input | 9-30V DC | ||
| Average current | < 0.07A (24V DC) | ||
| Indicator light | 5* LED Light | ||
| Boundary dimension | 100*100*41.5mm | ||
| Fixture type | 2Pcs*M6 screw hole | ||
| Canning material | PC +ABS | ||
| Shell color | Black | ||
| Total weight | 350g | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | Contact discharge, 8KV, over Class A/air discharge, 15KV, over class A | ||
| Certificate | FCC , CE | ||
| ROHS Standard | 2011/65/EU, 2015/863/EU | ||
Payment & Shipping Terms
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Product parameters
| Model | RF-HZ100L-R4 | RF-HZ100L-TP | RF-HZ100L-IOL |
| Wireless protocol | ISO 15963 | ||
| Working frequency | 13.56MHz | ||
| Output power | 27.5dBm | ||
| Communication interface | RS485 | Ethernet | IO Link |
| Communication protocol | MODBUS RTU | MODBUS TCP | IO Link V1.1 |
| Communication rate | 9600 ~ 115200bit/s | 10/100M adaptive | 230.4kbps |
| mains input | 9-30V DC | ||
| Average current | < 0.07A (24V DC) | ||
| Indicator light | 5* LED Light | ||
| Boundary dimension | 100*100*41.5mm | ||
| Fixture type | 2Pcs*M6 screw hole | ||
| Canning material | PC +ABS | ||
| Shell color | Black | ||
| Total weight | 350g | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | Contact discharge, 8KV, over Class A/air discharge, 15KV, over class A | ||
| Certificate | FCC , CE | ||
| ROHS Standard | 2011/65/EU, 2015/863/EU | ||
Payment & Shipping Terms
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
