RFID Gateway for PLC Integration

The Superisys IACM-P4 series industrial gateway is an RFID controller designed for industrial automation and field data collection. It supports standard industrial bus protocols, including PROFINET, EtherCAT, and EtherNet/IP, helping RFID systems connect smoothly with different PLC platforms.

The IACM-P4 series includes two M12 T-CODE power supply interfaces, two M12 D-CODE 4-PIN bus interfaces, and four M12 A-CODE RFID read/write head interfaces. With an industrial Ethernet transmission rate of up to 100Mbps, multiple bus modules can be cascaded to the PLC, providing strong on-site data collection capability for smart manufacturing lines.

The housing is made of lightweight and sturdy engineering plastic. It offers a wide connection range, strong communication capability, good environmental adaptability, and high protection performance, making it suitable for demanding industrial environments.

Key Features

✅ Connect up to 4 RFID read/write heads
The IACM-P4 series can connect four RFID read/write heads at the same time. Each RFID port can work independently, making it suitable for multi-station reading and writing in production lines.

✅ Supports major industrial protocols
The gateway supports PROFINET, EtherCAT, and EtherNet/IP protocols. It can be used with different PLC systems and industrial Ethernet environments.

✅ IP67 protection level
With IP67 protection, the gateway can adapt to harsh working conditions such as oil, dust, moisture, and other common industrial site challenges.

✅ Dual network ports with integrated switch function
The dual network port design supports integrated switch functionality. It can help form star or tree network structures, making system wiring and expansion more flexible.

✅ Reliable circuit protection
The power input supports reverse connection protection and 3000W surge protection. The RFID port also supports anti-reverse connection, overvoltage, and overcurrent protection, helping improve system stability.

RFID System Architecture

The main components of the RFID architecture system include the PLC controller, gateway bus controller, RFID read/write heads, and RFID tag carriers.

The controller, usually a PLC, sends commands to control the RFID read/write head.

The gateway bus controller communicates with the PLC and indirectly controls the RFID read/write head.

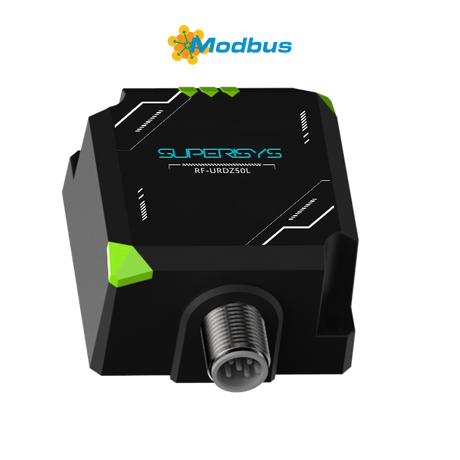

The RFID read/write head, including UHF or HF RFID readers, receives the controller command and performs data reading or writing operations on the RFID tag.

The RFID tag carrier is used to store data. For HF RFID tags, the storage area usually includes a UID area and a USER area. The UID area is generally read-only and unique, while the USER area can be read and written depending on the tag model.

For related RFID products, you can visit the RFID Read/Write page.

Universal Compatibility for PLC Integration

Superisys RFID systems can support direct integration with major PLC platforms, including:

▸ Omron NX/NJ Series with EtherNet/IP
▸ Siemens S7-1200 Series with PROFINET

With one RFID gateway solution, manufacturers can build flexible RFID data collection systems for different PLC environments.

Key Benefits for Industrial Automation

✅ Native protocol support
The system supports mainstream industrial Ethernet protocols, allowing RFID devices to communicate with PLCs more efficiently.

✅ Simplified configuration
With matching configuration files and function blocks, engineers can reduce setup complexity and improve project deployment efficiency.

✅ Flexible system expansion
Multiple RFID readers and bus modules can be connected according to the application needs. This makes the solution suitable for both small workstations and larger automated production lines.

✅ Stable on-site data collection
The IACM-P4 industrial gateway helps collect RFID data from production sites and send it to the PLC system for process control, traceability, and automation management.

Typical Applications

• Omron PLC-controlled smart assembly lines
• Siemens PLC-managed automated warehouses
• Flexible production lines with mixed PLC brands
• Multi-station RFID tag reading and writing
• Smart manufacturing data collection
• Production process traceability
• Workpiece, fixture, and carrier identification

Recommended Superisys Solution

For PLC-based RFID integration, Superisys recommends the IACM-P4 industrial RFID gateway and related industrial RFID read/write products.

For Siemens PLC applications, you can also refer to the guide on multi-port RFID tag read/write via PLC and PROFINET gateway.

For Omron PLC applications, Superisys provides a technical guide for RFID integration with Omron NX/NJ PLC using EtherNet/IP gateway.

Configuration files such as EDS files can be provided according to project requirements. Please contact Superisys for detailed technical support and product selection.
