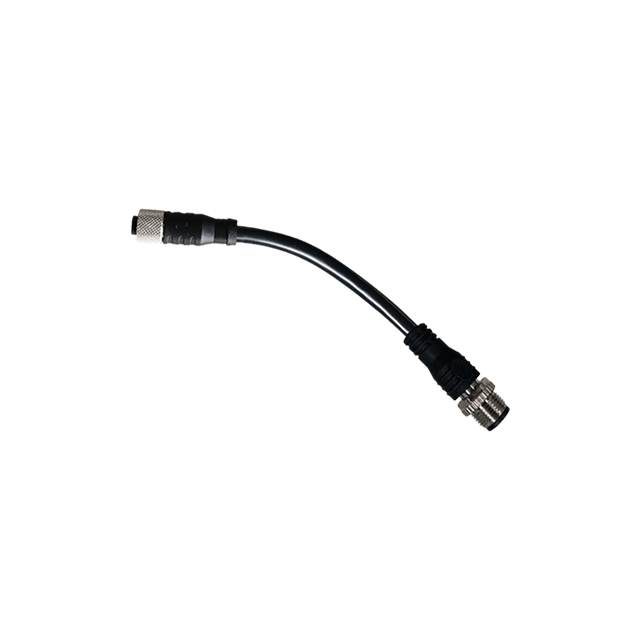

Double-ended IO Link Connection Cable with Straight End

Introduction

IO-Link Cable for IO-Link Master and RFID Reader Connection

This 3 m IO-Link cable is designed for reliable communication between an 8-port IO-Link master and RFID reader, ensuring stable data transmission in industrial automation systems. Built with durable industrial materials and high-quality shielding, it provides excellent resistance to interference and long-term performance in demanding factory environments.

The cable is ideal for industrial RFID identification systems, PLC control systems, conveyor systems, and automated production lines, enabling efficient device communication within smart manufacturing networks.

Key Features

• 3 m IO-Link cable for industrial automation

• Designed for 8-port IO-Link master to RFID reader connection

• Reliable IO-Link communication and data transmission

• Industrial-grade shielding for strong anti-interference performance

• Suitable for PLC systems, RFID readers, sensors, and automation equipment

Product Parameters

Type	CBIOL-AFAM-03	CBR4-AFAM-03-G1
Length	3 Meters	3 Meters
Connector type	M12A female elbow- M12A type male straight head	M12A female elbow- M12A type male straight head
Number of pins	5	5
Cable  diameter	4.2mm	4.2mm
Core size	3*24AWG	3*24AWG
Color	black	black
Cable material	PUR	PUR
Operating temperature	-25℃~80℃	-25℃~80℃
Other options	CBIOL-AFAM-05-RA           5m	CBIOL-AFAM-05RA-G1               5m
	CBIOL-AFAM-10-RA         10m	CBIOL-AFAM-10RA-G1                10m
Bending times	/	5 million times  (G2: 10 million times  G3: 15 million times  G4: 20 million times)

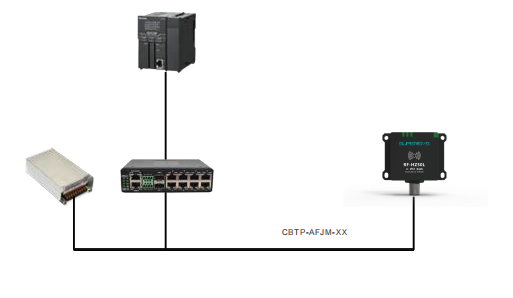

Application the Diagram
