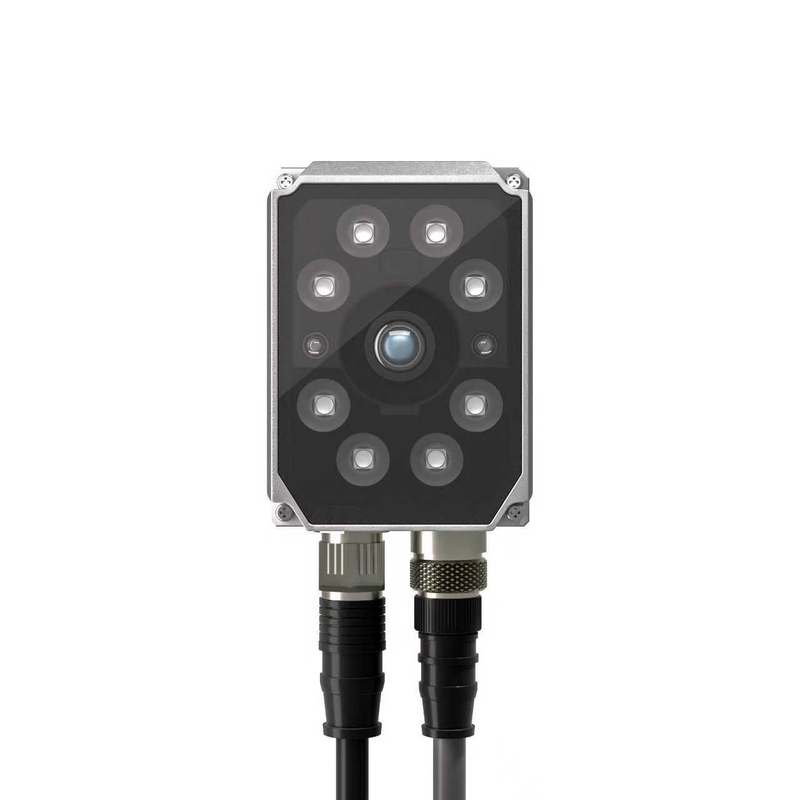

CR-RS210
Superisys
| Availability: | |
|---|---|
| Quantity: | |
2. Long-distance, high- speed mobile reading
For industries such as logistics warehousing, automobile assembly and packaging, it is suitable for long-distance and high-speed mobile reading, especially for strong reflective curved surfaces (engine curve codes/electroplating wheel hubs/high-speed production line can inkjet), high-speed logistics labels and other code reading scenarios.
3.Ultra-long distance, ultra-large field of view reading
For industries such as logistics and warehousing, new energy, etc., it is suitable for reading in ultra-long distance, ultra-large field of view, and ultra-large depth of field, especially for reading scenarios such as express sorting, warehousing and palletizing.
A new generation of one-click debugging +/AI decoding technology
X-Scan™ Modular Code Reading Platform
Advanced Autofocus
| Minimum Order Quantity | 1 |
| Delivery Time | 8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Model | CR-RS210 | |||
| Supported code system | 2D: DataMatrix (EC C200), QR Code 1D: Code39, Code93, Code128, EAN13, EAN8, UP CE, Interleaved 2 of 5 | |||
| Image sensor | 2048*1200Pixel | |||
| Max. capture frame rate | 60fps | |||
| Light source | Light source type: direct light (D), polarized light (P), uniform light (U), ultraviolet light (UV), infrared light (IR) Light source color: red light (R), blue light (B), white light (W) | |||
| Lens focal length | 8mm:20-2000mm 12mm:60-2000mm 16mm:85-2000mm 25mm:220-2000mm | |||
| Fouce system | Motor autofocus | |||
| Instruct | Two green LED dots aiming | |||
| Communication interface | Ethernet@100Mbps, RS232 | |||
| Communication protocol | TCP/IP, RS232, EIP, Profinet, FTP, Modbus TCP, MELSEC | |||
| Input/Output | Non-polarized 2-channel isolated I/O input + Non-polarized 2-channel isolated I/O output | |||
| Barcode level verification | ISO/ IEC 15415, ISO/IEC 16022, ISO/IEC TR29158(AIM DPM-1-2006) | |||
| Power supply | 24VDC±10% | |||
| Temperature | -10°C~45°C | |||
| Protection grade | IP65 | |||
| Certification | CE,FCC,RoHs | |||
Automotive parts traceability
Read the QR code of parts on the welding/assembly line, bind production data to the MES system, and achieve full life cycle tracking.
Express logistics sorting
Integrated in the sorting machine, high-speed identification of the parcel surface single barcode, improve sorting accuracy and throughput.
Healthcare
Healthcare
Express logistics sorting
Automotive parts traceability
