The device adopts storage and forwarding, no fan, low power consumption design, with easy to use, small size, simple maintenance and other advantages. Product design in line with Ethernet standards, add lightning protection, anti-static protection measures, -40℃ ~ +85℃ wide range of operating temperature, stable and reliable performance, can be widely used in intelligent transportation, telecommunications, security, financial securities, customs, shipping, electricity, water conservancy and oil fields and other broadband data transmission fields.

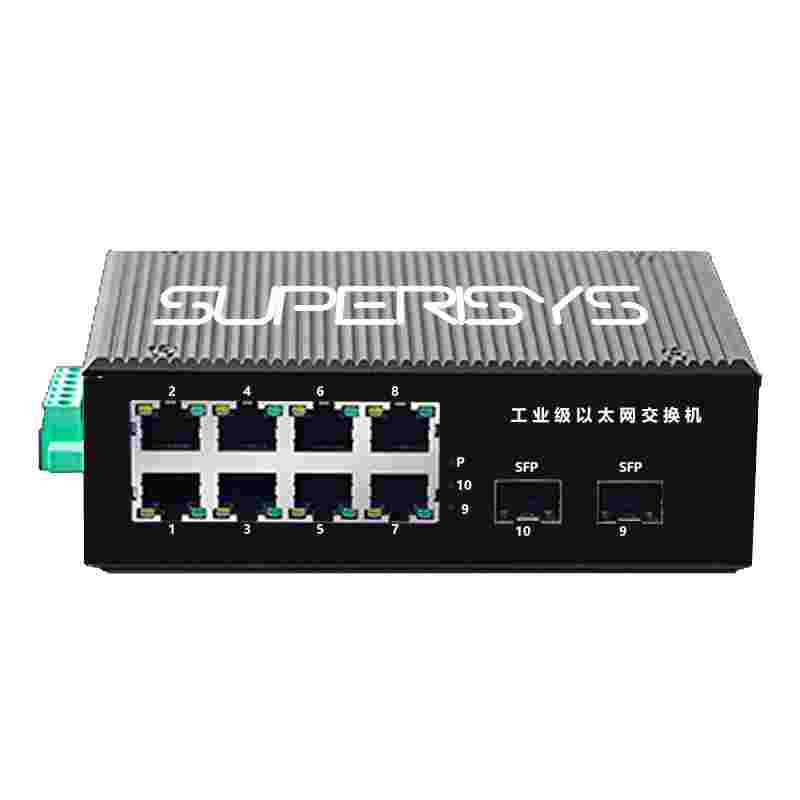

| Model | SW-T05 | SW-T08 | SW-T16 |
| Number of ports | 5 RJ45 Ports | 8 RJ45 ports | 16 RJ45 Ports |
| Port specification | 10/100/1000 BaseT (X) Automatic detection, full/half duplex MDI/MDI-X adaptive | ||
| Ethernet standard | IEEE802.310BASE-T; | ||
| IEEE802.3i 10Base-T； | |||
| IEEE802.3u 100Base-TX/FX； | |||
| IEEE802.3ab1000Base-T； | |||
| IEEE802.3z1000Base-X； | |||
| IEEE802.3x； | |||
| MACaddress table | 1K | 1K | 8K |
| Packet cache | 512kbit | 512kbit | 4Mbit |
| Backplane bandwidth | 10G | 20G | 56G |
| conversion rate | 7.4Mpps | 11.9Mpps | 23.80Mpps |
| mains input | DC12-52V | DC12-52V | DC12-52V |
| Power supply protection | (Dual power supply redundancy backup, support built-in overcurrent 4.0A protection, support reverse protection) | ||
| overall power consumption | <3W | <3W | <15W |
| size | 130x95x33.5mm | 156x113x48mm | 191x144x46mm |
| Bare weight | 0.35KG | 0.55KG | 0.9KG |
| Proprietary function | / | ||
| Installation | DIN rail | ||
| heat-dissipating method | Natural heat dissipation, no fan | ||
| Shell Material | metal shell | ||
| entrench | IP40 | ||
| operating temperature | -40～85°C(-40～185°F) | ||
| storage temperature | -40～85°C(-40～185°F) | ||
| relative humidity | 5% ~ 95% (no condensation) | ||
| Mean free error time | 300,000hours | ||
| Warranty | 3 years | ||
| Intallation Size |  | ||
