TCP Cable with Angle Right End

Product Introduction

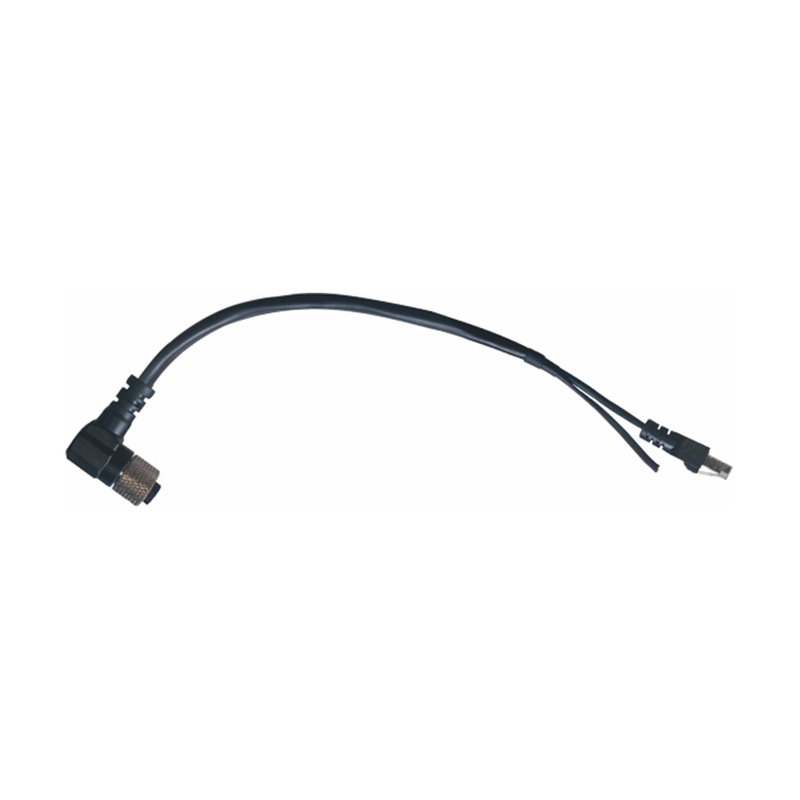

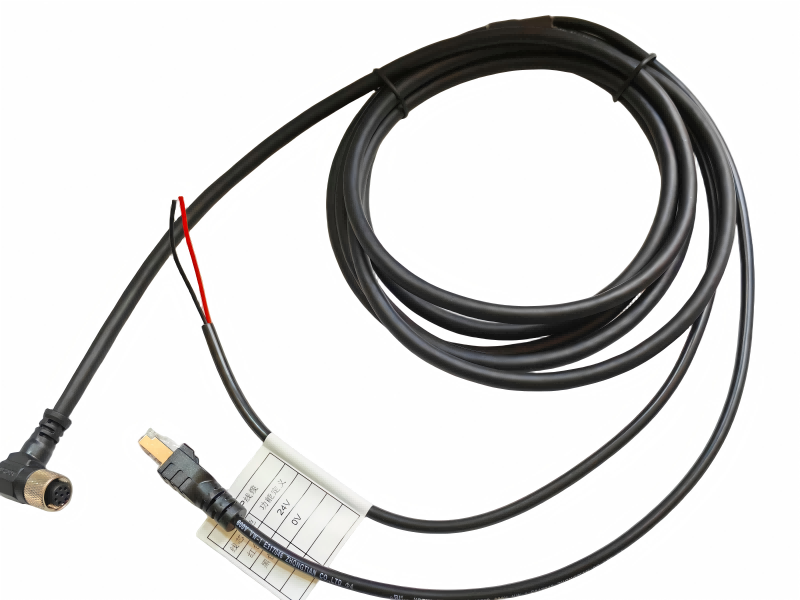

TCP Cable – M12 A-Coded Female Right Angle to RJ45 + Flying Leads

This industrial TCP cable features an M12 A-coded female right-angle connector on one side and an RJ45 male with flying leads on the other side, designed for reliable communication between PLC and RFID readers. The cable has a 7 mm outer diameter and high-flex construction supporting up to 2 million bending cycles, making it ideal for dynamic industrial environments.

With industrial-grade shielding and durable materials, it ensures stable Ethernet signal transmission in factory automation systems. It is widely used in RFID identification systems, PLC control networks, automated production lines, and industrial communication applications.

TCP Cable Parameters

Type	CBTP-AFJM-03-RA	CBTP-AFJM-03-RA-G1
Length	3 Meters	3 Meters
Connector type	M12A female straight connector-RJ45 loose wire	M12A female straight connector with RJ45loose wire
Number of pins	8	8
Cable  diameter	7mm	7mm
Core size	2P*26AWG（cat5e） + 2C*20AWG	2P*26AWG（cat5e） + 2C*20AWG
Color	Black	black
Cable material	PVC	PVC
Cable shield	Yes	Yes
Operating temperature	-25℃~80℃	-25℃~80℃
Other options	CBTP-AFJM--RA-05 5m	CBTP-AFJM--GA-05-G1           5m
	CBTP-AFJM--RA-10 10m	CBTP-AFJM-RA-05-G1           10m
Bending times	/	5 million times  (G2: 10 million times  G3: 15 million times  G4: 20 million times)

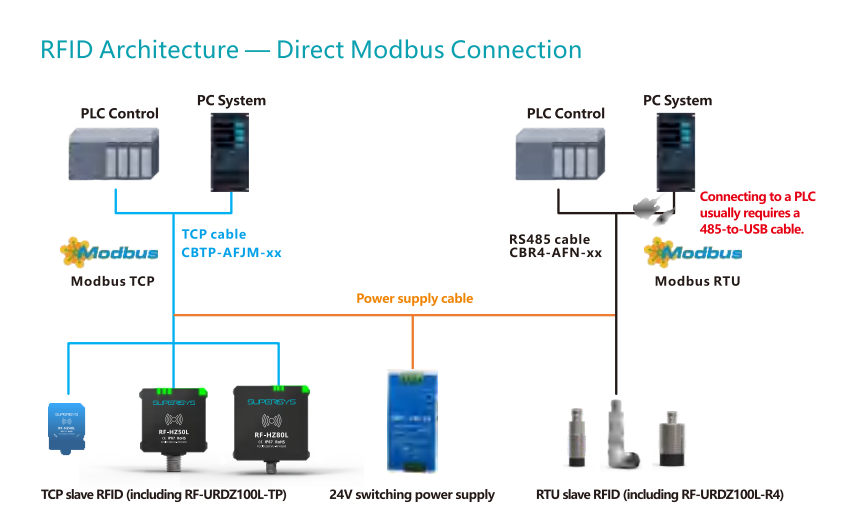

TCP Cable Application the Diagram
