TCP cable is a twisted pair Ethernet communication cable designed for industrial environments and complies with the following standards:
IEC 61158 (Industrial communication network standard)
Use for Automobile welding line in the field of intelligent manufacturing
| Min. Order Quantity | 1PCS |
| Price | Large quantity price negotiable |
| Delivery Time | 3 work days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |

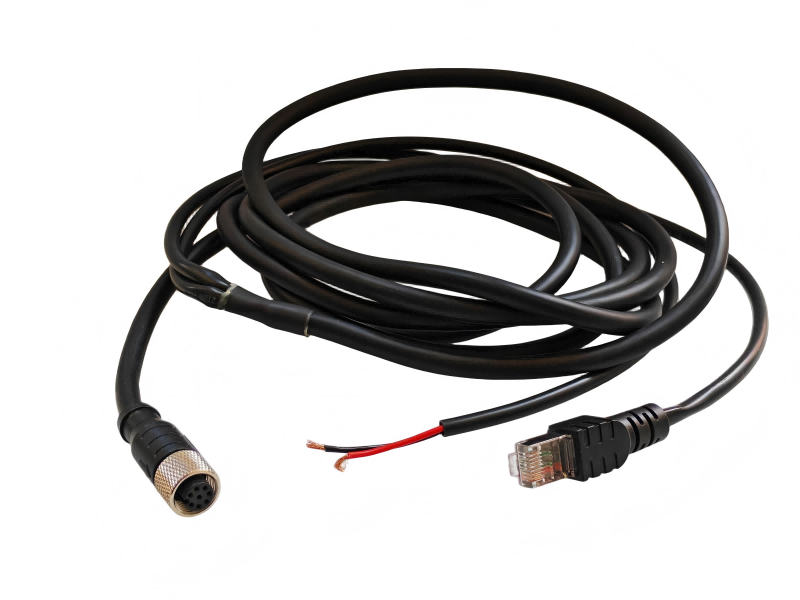

| Type | CBTP-AFJM-03 | CBTP-AFJM-03-G1 |
Picture |  |   |
| Length | 3 Meters | 3 Meters |
Connector type | M12A female straight connector-loose wire | M12A female straight connector-loose wire |
| Number of pins | 5 | 5 |
| Cable diameter | 5.6mm | 5.6mm |
| Core size | 2P*24AWG | 2P*24AWG |
| Color | Black | black |
| Cable material | PUR | PUR |
| Cable shield | Yes | Yes |
| Operating temperature | -25℃~80℃ | -25℃~80℃ |
| Other options | CBTP-AFJM-05 5m | CBTP-AFJM-05-G1 5m |
CBTP-AFJM-10 10m | CBTP-AFJM-05-G1 10m | |
| Bending times | / | 5 million times (G2: 10 million times G3: 15 million times G4: 20 million times) |
TCP Cable Application the Diagram
TCP cable is a twisted pair Ethernet communication cable designed for industrial environments and complies with the following standards:
IEC 61158 (Industrial communication network standard)
Use for Automobile welding line in the field of intelligent manufacturing
| Min. Order Quantity | 1PCS |
| Price | Large quantity price negotiable |
| Delivery Time | 3 work days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Type | CBTP-AFJM-03 | CBTP-AFJM-03-G1 |
Picture | | |
| Length | 3 Meters | 3 Meters |
Connector type | M12A female straight connector-loose wire | M12A female straight connector-loose wire |
| Number of pins | 5 | 5 |
| Cable diameter | 5.6mm | 5.6mm |
| Core size | 2P*24AWG | 2P*24AWG |
| Color | Black | black |
| Cable material | PUR | PUR |
| Cable shield | Yes | Yes |
| Operating temperature | -25℃~80℃ | -25℃~80℃ |
| Other options | CBTP-AFJM-05 5m | CBTP-AFJM-05-G1 5m |
CBTP-AFJM-10 10m | CBTP-AFJM-05-G1 10m | |
| Bending times | / | 5 million times (G2: 10 million times G3: 15 million times G4: 20 million times) |
TCP Cable Application the Diagram
