Configurable input and output modes
IO-Link multi-level expansion, modules can be freely matched
Input/output photoelectric isolation, overvoltage and short-circuit protection functions
Designed with IO-Link V1.1 specifications, COM3 communication rate
| Minimum Order Quantity | one |
| Delivery Time | 5 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |

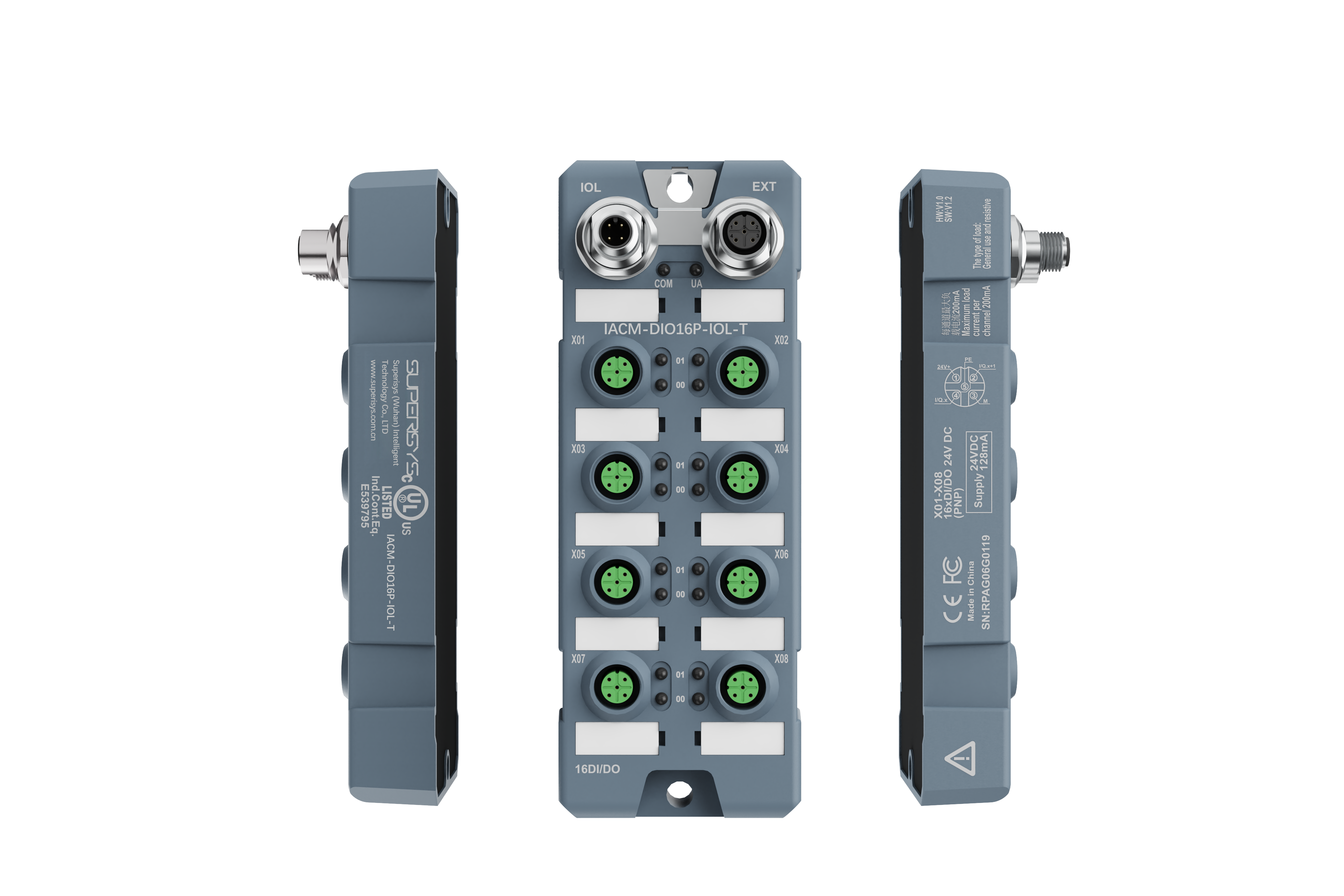

Model | IACM-DIO16P-IOL-T | IACM-DIO16N-IOL-T |
Description | 16 DI/DO, PNP, 8*M12 | 16 DI/DO, NPN, 8*M12 |
Certifications |
| |
Interface Type | ||
Expansion connection (IN) | 1 * M12 A-code 4pin Needle end | |
Expansion connection (OUT) | 1 * M12 A-code 5pin Hole end | |
Auxiliary supply current | 24V, 2A | |
Signal Connection | 8 * M12 A-code 5pin | |
Electrical parameters | ||
Supply voltage | 24 VDC (18…30V) | |
Module current consumption | Max. 50mA | |
Number of input channels | Max. 16, PNP input | Max. 16, NPN input |
Input signal type | Sensors, travel switches, dry contacts, etc. | |
Number of output channels | Max. 16, PNP output | Max.16, NPN output |
Output signal type | Actuators, indicator lights, micro solenoid valves, etc. | |
Output supply current | Max.0.5A per channel, total not exceeding 2A | |
Output switching frequency | Resistive load 100Hz, inductive load 5Hz | |
Expansion Capacity and Distance | Maximum IO-Link four-level expansion, total expansion cable length 80 meters | |
IO - Link parameters | ||
IO - Link interface type | CLASS B | |
IO - Link Version | IO-Link V1.1 | |
IO - Link transfer rate | COM3 (230.4 kbps) | |
IO - Link process data bytes | 2 input bytes, 2 output bytes | |
Diagnosis | ||
Communication status | LED indication, communication message | |
Power supply monitoring | Yes, low voltage alarm | |
Short circuit and overload protection | Yes, LED indication | |
General Data | ||
Protection level | IP67 (IP65 can be customized) | |
Temperature range | Working environment temperature -20 ~ 60 ℃ (storage temperature -40 ~ 85 ℃ ) | |
Shell material | Plastic | |
Configurable input and output modes
IO-Link multi-level expansion, modules can be freely matched
Input/output photoelectric isolation, overvoltage and short-circuit protection functions
Designed with IO-Link V1.1 specifications, COM3 communication rate
| Minimum Order Quantity | one |
| Delivery Time | 5 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |

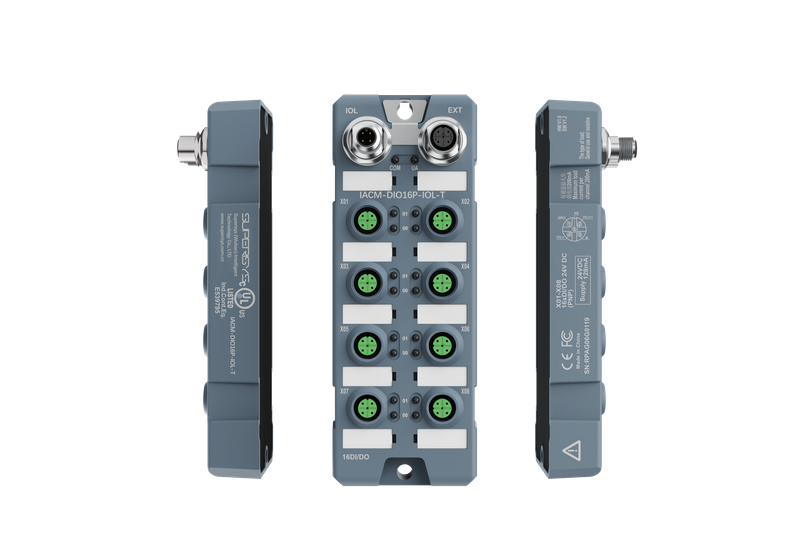

Model | IACM-DIO16P-IOL-T | IACM-DIO16N-IOL-T |
Description | 16 DI/DO, PNP, 8*M12 | 16 DI/DO, NPN, 8*M12 |
Certifications |
| |
Interface Type | ||
Expansion connection (IN) | 1 * M12 A-code 4pin Needle end | |
Expansion connection (OUT) | 1 * M12 A-code 5pin Hole end | |
Auxiliary supply current | 24V, 2A | |
Signal Connection | 8 * M12 A-code 5pin | |
Electrical parameters | ||
Supply voltage | 24 VDC (18…30V) | |
Module current consumption | Max. 50mA | |
Number of input channels | Max. 16, PNP input | Max. 16, NPN input |
Input signal type | Sensors, travel switches, dry contacts, etc. | |
Number of output channels | Max. 16, PNP output | Max.16, NPN output |
Output signal type | Actuators, indicator lights, micro solenoid valves, etc. | |
Output supply current | Max.0.5A per channel, total not exceeding 2A | |
Output switching frequency | Resistive load 100Hz, inductive load 5Hz | |
Expansion Capacity and Distance | Maximum IO-Link four-level expansion, total expansion cable length 80 meters | |
IO - Link parameters | ||
IO - Link interface type | CLASS B | |
IO - Link Version | IO-Link V1.1 | |
IO - Link transfer rate | COM3 (230.4 kbps) | |
IO - Link process data bytes | 2 input bytes, 2 output bytes | |
Diagnosis | ||
Communication status | LED indication, communication message | |
Power supply monitoring | Yes, low voltage alarm | |
Short circuit and overload protection | Yes, LED indication | |
General Data | ||
Protection level | IP67 (IP65 can be customized) | |
Temperature range | Working environment temperature -20 ~ 60 ℃ (storage temperature -40 ~ 85 ℃ ) | |
Shell material | Plastic | |
