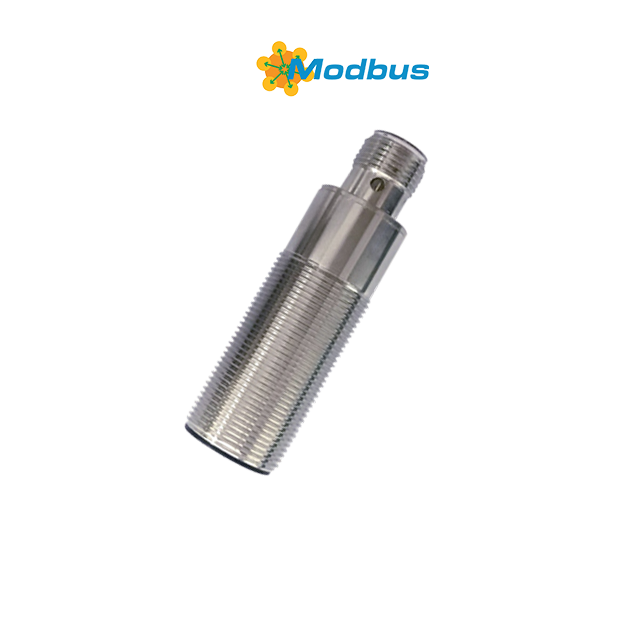

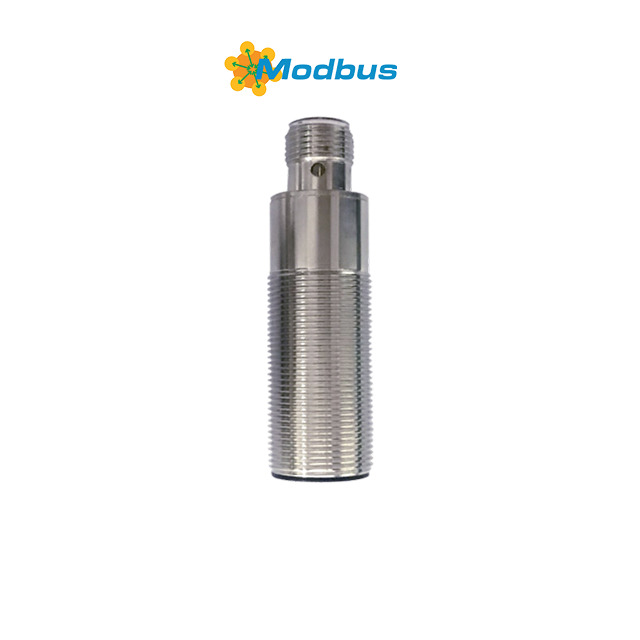

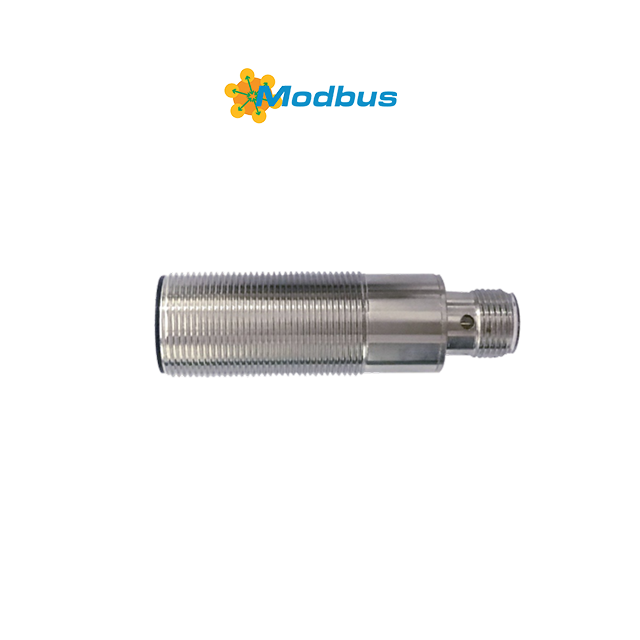

RF-HY18RE
Superisys
| Availability: | |
|---|---|
| Quantity: | |
Product Features
2cm read distance, precision and installation in small spaces
| product model | RF-HY18RE-R4 | RF-HY18RE-R2 |
| wireless protocol | ISO15693 | |
| Operating frequency [MHz] | 13.56MHz | |
| output power | 27.5dBm | |
| wireless speed | 26.48Kbit/s | |
| Distance write/read head [mm] | 0~20mm(Related to the loaded code body) | |
| communication interface | RS485 | RS232 |
| communication protocol | MODBUS RTU | |
| Communication rate | 9600~115200bit/s | |
| mains input | 9-30VDC | |
| average current | ＜0.05A@24VDC | |
| indicator light | 1 LED indicator | |
| boundary dimension | M18*62mm | |
| Product interface | M12 Acode 4PIN male head | |
| Installation | Screwing with M18*1.0 | |
| Material | Brass plated with nickel +ABS | |
| Shell color | Silver + Black | |
| total weight | 30g | |
| operating temperature | ~25℃~+70℃ | |
| storage temperature | ~25℃~+85℃ | |
| humidity | 5%~95%RH(without condensation) | |
| Waterproof and dustproof grade | IP67, EN 60529 | |
| Resistance to vibration | 2 mm (f= 5…29.5 Hz ) , | |
| EN 60068-2-6 | ||
| 7 gn (f= 29.5…150 Hz) , | ||
| EN 60068-2-6 | ||
| Conduction immunity (CS) | 3V, Class A (including main frequency) | |
| 10V, Class A (except main frequency) | ||
| Electrostatic discharge immunity ESD | Contact discharge, 8KV, Class A air discharge, | |
| 15KV, class A IEC61000-4-2 | ||
| Certificate | CE | |
| FCC | ||
| ROHS instruct | 2011/65/EU,2015/863/EU | |
Product Features
2cm read distance, precision and installation in small spaces
| product model | RF-HY18RE-R4 | RF-HY18RE-R2 |
| wireless protocol | ISO15693 | |
| Operating frequency [MHz] | 13.56MHz | |
| output power | 27.5dBm | |
| wireless speed | 26.48Kbit/s | |
| Distance write/read head [mm] | 0~20mm(Related to the loaded code body) | |
| communication interface | RS485 | RS232 |
| communication protocol | MODBUS RTU | |
| Communication rate | 9600~115200bit/s | |
| mains input | 9-30VDC | |
| average current | ＜0.05A@24VDC | |
| indicator light | 1 LED indicator | |
| boundary dimension | M18*62mm | |
| Product interface | M12 Acode 4PIN male head | |
| Installation | Screwing with M18*1.0 | |
| Material | Brass plated with nickel +ABS | |
| Shell color | Silver + Black | |
| total weight | 30g | |
| operating temperature | ~25℃~+70℃ | |
| storage temperature | ~25℃~+85℃ | |
| humidity | 5%~95%RH(without condensation) | |
| Waterproof and dustproof grade | IP67, EN 60529 | |
| Resistance to vibration | 2 mm (f= 5…29.5 Hz ) , | |
| EN 60068-2-6 | ||
| 7 gn (f= 29.5…150 Hz) , | ||
| EN 60068-2-6 | ||
| Conduction immunity (CS) | 3V, Class A (including main frequency) | |
| 10V, Class A (except main frequency) | ||
| Electrostatic discharge immunity ESD | Contact discharge, 8KV, Class A air discharge, | |
| 15KV, class A IEC61000-4-2 | ||
| Certificate | CE | |
| FCC | ||
| ROHS instruct | 2011/65/EU,2015/863/EU | |
Product Advantages
Working frequency 13.56MHz, support ISO15693 and ISO14443A protocols, communication mode CAN RS485, IO-Link, CAN, support MODBUS RTU, CANOPEN protocols, easy to integrate.
Brass nickel-plated shell, IP67 protection grade, can be applied to oil, dust, wet harsh conditions
Power supply with over current and over voltage protection and filtering function, can be applied to harsh electromagnetic interference environment
Using 2 nuts to fix, small and diverse size, suitable for the size requirements are relatively high, precision manufacturing links to automatic identification scenes.
| Minimum Order Quantity | one |
| Price | receive bargaining |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |

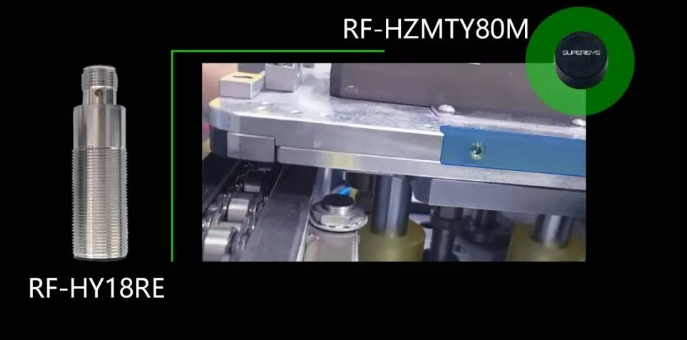

Products in process/tooling fixtures/fixtures/accessories are installed or embedded with RFID code tags.
RFID reading and writing devices are deployed on the stations of automated nodes, and multi-variety
and large-scale production methods are realized through interaction with products in process, automatic
Real-time identification of single-grade products, automatic series automation equipment and robots, and
personalized process transmission are realized. Scenarios such as automatic parameter definition and
automatic device detection.
Product Advantages
Working frequency 13.56MHz, support ISO15693 and ISO14443A protocols, communication mode CAN RS485, IO-Link, CAN, support MODBUS RTU, CANOPEN protocols, easy to integrate.
Brass nickel-plated shell, IP67 protection grade, can be applied to oil, dust, wet harsh conditions
Power supply with over current and over voltage protection and filtering function, can be applied to harsh electromagnetic interference environment
Using 2 nuts to fix, small and diverse size, suitable for the size requirements are relatively high, precision manufacturing links to automatic identification scenes.
| Minimum Order Quantity | one |
| Price | receive bargaining |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Products in process/tooling fixtures/fixtures/accessories are installed or embedded with RFID code tags.
RFID reading and writing devices are deployed on the stations of automated nodes, and multi-variety
and large-scale production methods are realized through interaction with products in process, automatic
Real-time identification of single-grade products, automatic series automation equipment and robots, and
personalized process transmission are realized. Scenarios such as automatic parameter definition and
automatic device detection.
