RF-URDZ215L
Superisys
| Availability: | |
|---|---|
| Quantity: | |

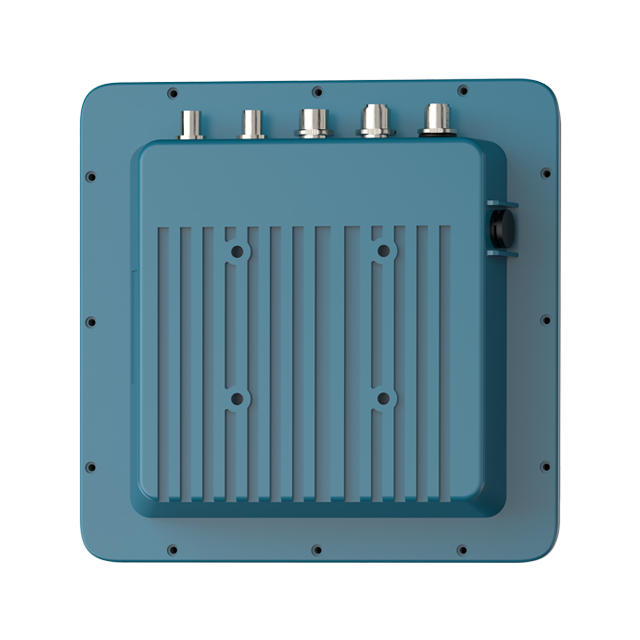

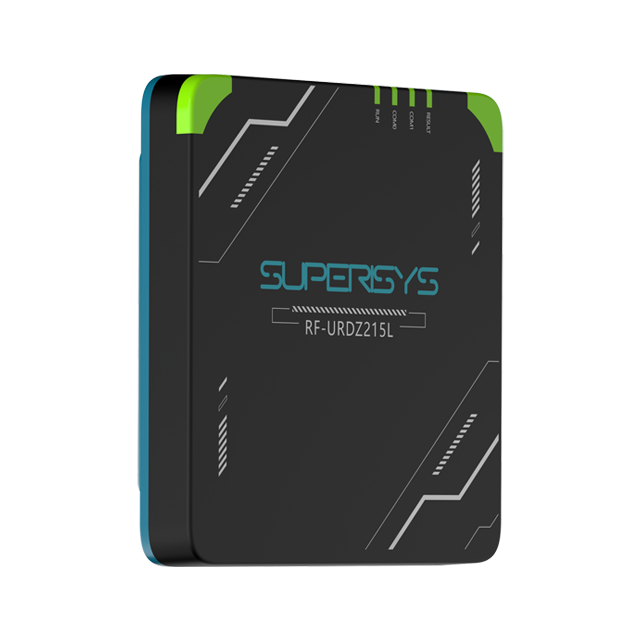

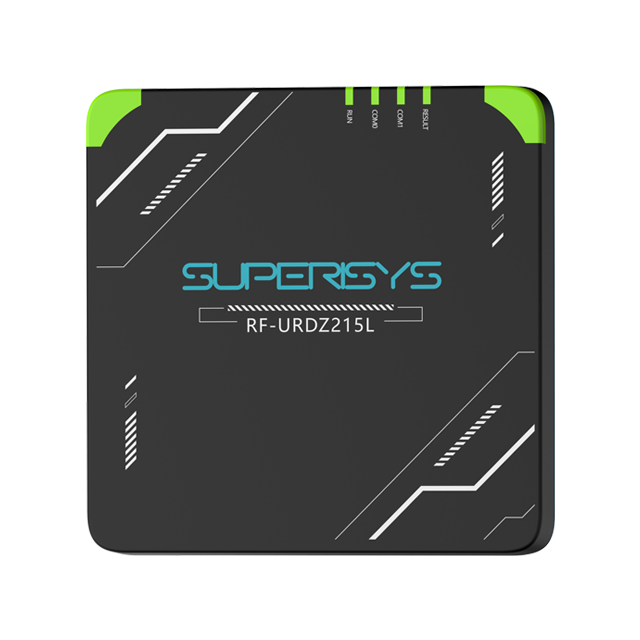

RF-URDZ215L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | RF-URDZ215L-PN | RF-URDZ215L-EIP | RF-URDZ215L-ECT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | ||
| Working frequency | CN：920-925MHz（SRRC） | ||
| Output power | 5-30dBm adjust(Stepping 1dbm) | ||
| Communication interface | RS485*1 Ethernet*2 | ||
| Communication protocol | ProfiNet | Ethernet/IP | EtherCAT |
| Communication rate | 10/100M adaptive | ||
| mains input | 9-30V DC | ||
| Average current | < 0.5A (24V DC) | ||
| Indicator light | 6* LED Light | ||
| Boundary dimension | 215*215*58mm | ||
| Fixture type | 4Pcs*M6 screw hole | ||
| Canning material | Base: Aluminum Alloy, Top: PC +ABS | ||
| Shell color | Black | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | IEC610000-4-2 | ||
| Certificate | FCC , CE,SRRC,ROHS | ||
RF-URDZ215L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | RF-URDZ215L-PN | RF-URDZ215L-EIP | RF-URDZ215L-ECT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | ||
| Working frequency | CN：920-925MHz（SRRC） | ||
| Output power | 5-30dBm adjust(Stepping 1dbm) | ||
| Communication interface | RS485*1 Ethernet*2 | ||
| Communication protocol | ProfiNet | Ethernet/IP | EtherCAT |
| Communication rate | 10/100M adaptive | ||
| mains input | 9-30V DC | ||
| Average current | < 0.5A (24V DC) | ||
| Indicator light | 6* LED Light | ||
| Boundary dimension | 215*215*58mm | ||
| Fixture type | 4Pcs*M6 screw hole | ||
| Canning material | Base: Aluminum Alloy, Top: PC +ABS | ||
| Shell color | Black | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | IEC610000-4-2 | ||
| Certificate | FCC , CE,SRRC,ROHS | ||
1. Excellent read and write performance
High receiving sensitivity (≤-85dBm): Support stably read weak signals and improve long-distance recognition capabilities.
8dBi high-gain antenna: enhance signal coverage and improve recognition accuracy.
Recognition distance up to 5M (passive tag), suitable for fast inventory at medium and long distances.
2. Multi-tag high-speed reading
Supports reading 120pcs/s, suitable for automobile production lines, logistics sorting, and warehouse management.
Adopts advanced anti-collision algorithm (based on ISO18000-6C protocol) to avoid multi-tag conflicts.
3. Global frequency band compatibility
Supports 860~960MHz ultra-high frequency band, which can adapt to frequency band specifications of different countries:
China (920~925MHz)
Europe (865~868MHz)
USA (902~928MHz)
4. Industrial-grade protection design
IP65 protection level: dustproof and waterproof, suitable for outdoor or harsh industrial environments.
Wide operating temperature range (-20℃~60℃), adaptable to different climatic conditions.
Automobile automation,
Logistics sorting
Warehousing management
1. Excellent read and write performance
High receiving sensitivity (≤-85dBm): Support stably read weak signals and improve long-distance recognition capabilities.
8dBi high-gain antenna: enhance signal coverage and improve recognition accuracy.
Recognition distance up to 5M (passive tag), suitable for fast inventory at medium and long distances.
2. Multi-tag high-speed reading
Supports reading 120pcs/s, suitable for automobile production lines, logistics sorting, and warehouse management.
Adopts advanced anti-collision algorithm (based on ISO18000-6C protocol) to avoid multi-tag conflicts.
3. Global frequency band compatibility
Supports 860~960MHz ultra-high frequency band, which can adapt to frequency band specifications of different countries:
China (920~925MHz)
Europe (865~868MHz)
USA (902~928MHz)
4. Industrial-grade protection design
IP65 protection level: dustproof and waterproof, suitable for outdoor or harsh industrial environments.
Wide operating temperature range (-20℃~60℃), adaptable to different climatic conditions.
Automobile automation,
Logistics sorting
Warehousing management
