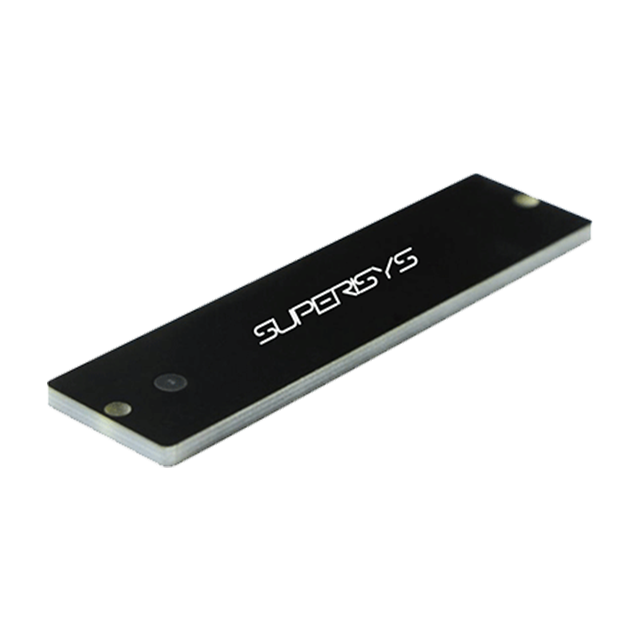

The tags have built-in high-performance antennas. The design and production processes have been strictly tested. Advanced production technology is used in the manufacturing process.
They are metal-resistant, have accurate reading and writing distances.
Product Family Parameter
Model
RF-UZMTC8020M-H3
Air mouth agreement
SO 18000-6C
Class 1 Gen 2
Working frequency
860-9608 MHz
Chip
Alien H3
EPC memory size
96 bits
USER memory size
512bits
TID
64bits
Size (mm)
80*20*3.5mm
Canning material
PCB
Way to install
Gluing/Screwing
Class
IP67
Weight
12g
Operating temperature
-25℃~70℃
Storage temperature
-40℃~85℃
Metal resistance
Anti-metal
Read distance
0-4m
Delivery and Payments
Parameter
Specification
Minimum Order Quantity
one
Price
Large quantity price negotiable
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union
Supply Ability
1000 per day
Product Inroduction:
The tags have built-in high-performance antennas. The design and production processes have been strictly tested. Advanced production technology is used in the manufacturing process.
They are metal-resistant, have accurate reading and writing distances.
Superisys (Wuhan) Intelligent Technology Co., Ltd., founded in 2018, is a professional manufacturer and service provider of industrial identification, industrial communication, industrial sensors and data solutions.
12#-1B, Yangluo Liandong U Valley Elctronic Tech Industrial Park, #36 Jinfa Avenue, Intelligent Manufacture Industrial Park, Changjiang New District, Wuhan, Hubei, China.
