Configurable input and output modes
IO-Link multi-level expansion, modules can be freely matched
Input/output photoelectric isolation, overvoltage and short-circuit protection functions
Designed with IO-Link V1.1 specifications, COM3 communication rate
| Minimum Order Quantity | one |
| Delivery Time | 5 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Product Description

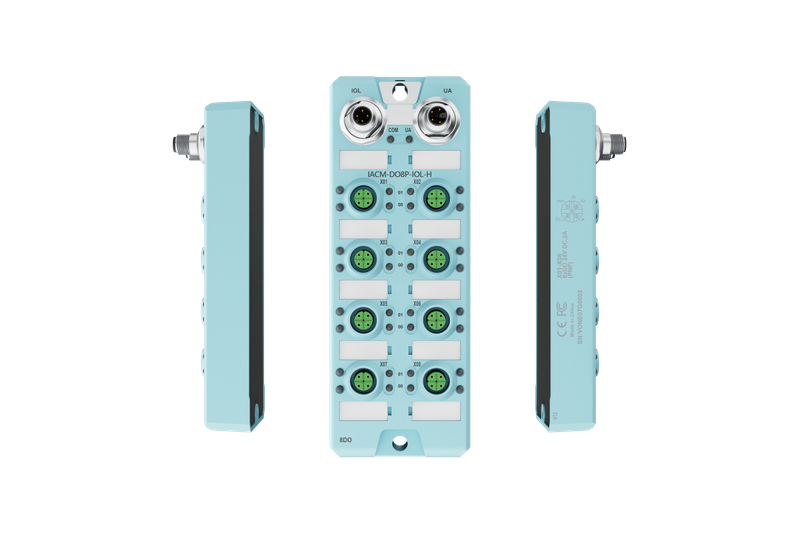

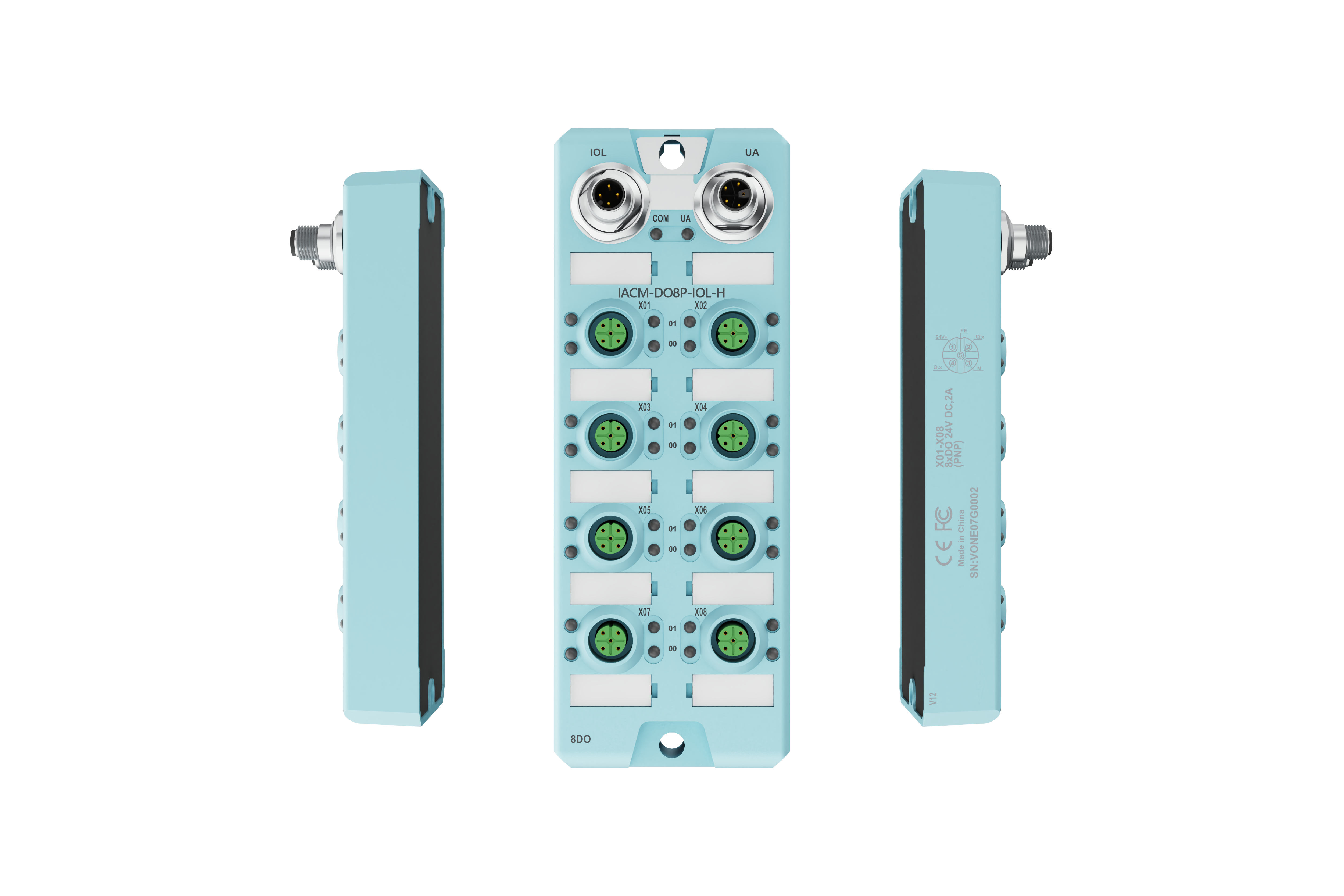

Model | IACM-DO8P-IOL-H |
Description | 8DO, PNP, 8*M12 |
Related Certifications |
|
Interface Type | |
Extended connectivity | 1 * M12 A-code 4pin Needle end |
Power Connection | Through 1*M12 L-code 5pin pin terminal Power supply 24V, without reverse connection protection |
Signal Connection | 8 * M12 A-code 5pin |
Electrical parameters | |
Supply voltage | 24 VDC (18…30V) |
Module current consumption | Max 50mA |
Number of output channels | 8. PNP output |
Output signal type | Actuators, indicator lights, micro solenoid valves, etc. |
Output supply current | Max. 2A per channel, total not exceeding 16A |
Output switching frequency | Resistive load 100Hz, inductive load 5Hz |
Scalability | No extension support |
IO - Link parameters | |
IO - Link interface type | CLASS A |
IO - Link Version | IO-Link V1.1 |
IO - Link transfer rate | COM3 (230.4 kbps) |
IO - Link process data bytes | 1 input byte, 1 output byte |
Diagnosis | |
Communication status | LED indication, communication message |
Power supply monitoring | Yes, low voltage alarm |
Short circuit and overload protection | Yes, LED indication |
General Data | |
Protection level | IP67 (IP65 can be customized) |
Temperature range | Working environment temperature -20 ~ 80℃ (storage temperature -40 ~ 85℃) |
Installation | 2-hole screw fixation |
Configurable input and output modes
IO-Link multi-level expansion, modules can be freely matched
Input/output photoelectric isolation, overvoltage and short-circuit protection functions
Designed with IO-Link V1.1 specifications, COM3 communication rate
| Minimum Order Quantity | one |
| Delivery Time | 5 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Product Description
Model | IACM-DO8P-IOL-H |
Description | 8DO, PNP, 8*M12 |
Related Certifications |
|
Interface Type | |
Extended connectivity | 1 * M12 A-code 4pin Needle end |
Power Connection | Through 1*M12 L-code 5pin pin terminal Power supply 24V, without reverse connection protection |
Signal Connection | 8 * M12 A-code 5pin |
Electrical parameters | |
Supply voltage | 24 VDC (18…30V) |
Module current consumption | Max 50mA |
Number of output channels | 8. PNP output |
Output signal type | Actuators, indicator lights, micro solenoid valves, etc. |
Output supply current | Max. 2A per channel, total not exceeding 16A |
Output switching frequency | Resistive load 100Hz, inductive load 5Hz |
Scalability | No extension support |
IO - Link parameters | |
IO - Link interface type | CLASS A |
IO - Link Version | IO-Link V1.1 |
IO - Link transfer rate | COM3 (230.4 kbps) |
IO - Link process data bytes | 1 input byte, 1 output byte |
Diagnosis | |
Communication status | LED indication, communication message |
Power supply monitoring | Yes, low voltage alarm |
Short circuit and overload protection | Yes, LED indication |
General Data | |
Protection level | IP67 (IP65 can be customized) |
Temperature range | Working environment temperature -20 ~ 80℃ (storage temperature -40 ~ 85℃) |
Installation | 2-hole screw fixation |
