Product Introduction
1. Anti-metal performan

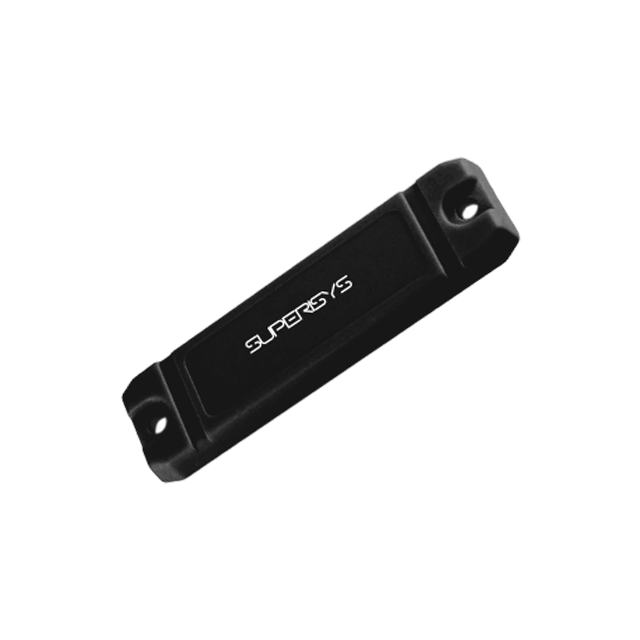

The long UHF industrial RFID tag is made of ABS material, which can maintain stable reading and writing performance on metal surfaces.
2. Long-distance reading and writing
The tag has an operating frequency of 860-960MHz, supports ISO/IEC 18000-6C EPC Class1 Gen2 protocol, and the reading and writing distance can reach 4 meters.
3. Strong durability
The tag has waterproof, dustproof, high temperature resistant, corrosion resistant, impact resistant and other characteristics
4. Multi-tag identification
Supports simultaneous reading of multiple tags, with high recognition sensitivity and fast speed, which can effectively improve work efficiency.
5. Flexible installation
Provides a variety of installation methods, such as adhesive pasting, screw fixing, etc., suitable for different scenarios
Delivery and Payments
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Large quantity price negotiable |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Product Parameters
| Model | RF-UZMTC10530M-U8 |
| Air mouth agreement | SO 18000-6C |
| Class 1 Gen 2 |
| Working frequency | 840-960 MHz |
| Chip | NXP UCODE8 |
| EPC memory size | 128 bits |
| USER memory size | 0bits |
| TID | 64bits |
| Size (mm) | 105*30*7.5mm |
| Canning material | ABS |
| Way to install | Gluing/Screwing |
| Class | IP65 |
| Weight | 15g |
| Operating temperature | -25℃~70℃ |
| Storage temperature | -30℃~85℃ |
| Metal resistance | Antimetal |
| Read distance | 0-6m |
