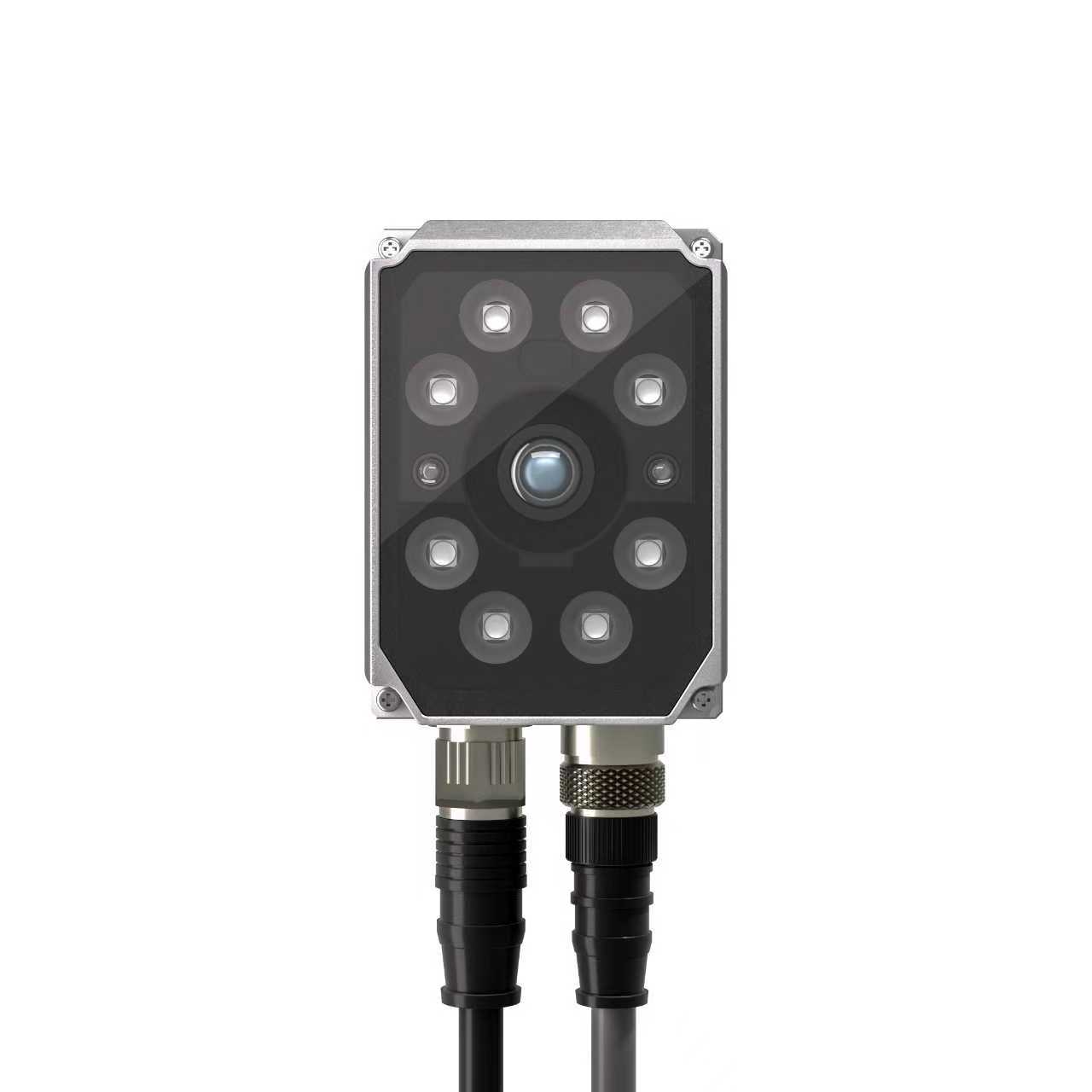

CR-RS290
Superisys
| Availability: | |
|---|---|
| Quantity: | |

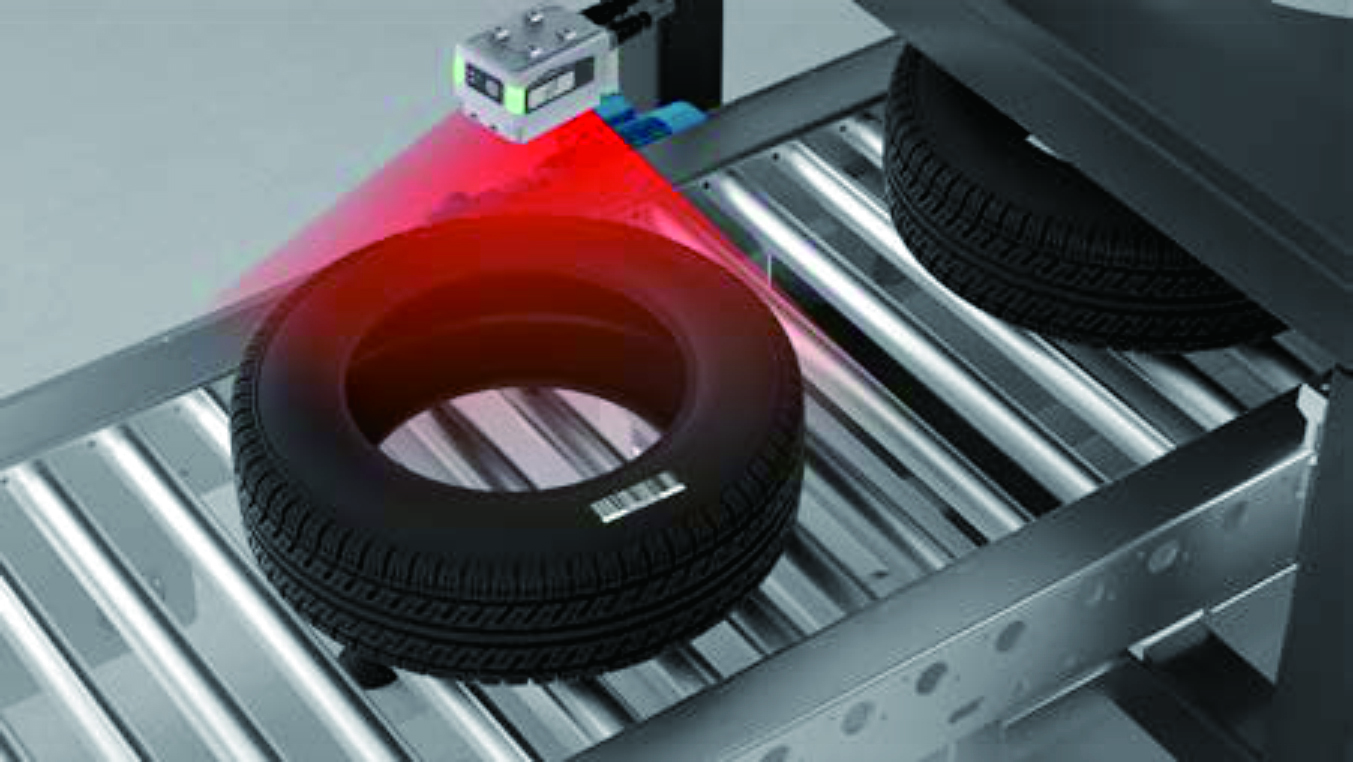

2. Long-distance, high- speed mobile reading
For industries such as logistics warehousing, automobile assembly and packaging, it is suitable for long-distance and high-speed mobile reading, especially for strong reflective curved surfaces (engine curve codes/electroplating wheel hubs/high-speed production line can inkjet), high-speed logistics labels and other code reading scenarios.
3.Ultra-long distance, ultra-large field of view reading
For industries such as logistics and warehousing, new energy, etc., it is suitable for reading in ultra-long distance, ultra-large field of view, and ultra-large depth of field, especially for reading scenarios such as express sorting, warehousing and palletizing.
A new generation of one-click debugging +/AI decoding technology
X-Scan™ Modular Code Reading Platform
Advanced Autofocus
| Minimum Order Quantity | 1 |
| Delivery Time | 8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Model | CR-RS210 | CR-RS220 | CR-RS250 | CR-RS290 |
| Supported code system | 2D: DataMatrix (EC C200), QR Code 1D: Code39, Code93, Code128, EAN13, EAN8, UP CE, Interleaved 2 of 5 | |||
| Image sensor | 1280*980Pixel | 2048*1200Pixel | 2560*1920pixel | 5120*3840 Pixel Global Shutter CMOS |
| Max. capture frame rate | 120fps | 120fps | 30fps | 30fps |
| Light source | Light source type: direct light (D), polarized light (P), uniform light (U), ultraviolet light (UV), infrared light (IR) Light source color: red light (R), blue light (B), white light (W) | |||
| Lens focal length | 12mm/16mm/25mm | 12mm/16mm/25mm | 16mm/21mm | 16mm/21mm |
| Fouce system | Motor autofocus | |||
| Instruct | Two green LED dots aiming | |||
| Communication interface | Ethernet@100Mbps, RS232 | |||
| Communication protocol | TCP/IP, RS232, EIP, Profinet, FTP, Modbus TCP, MELSEC | |||

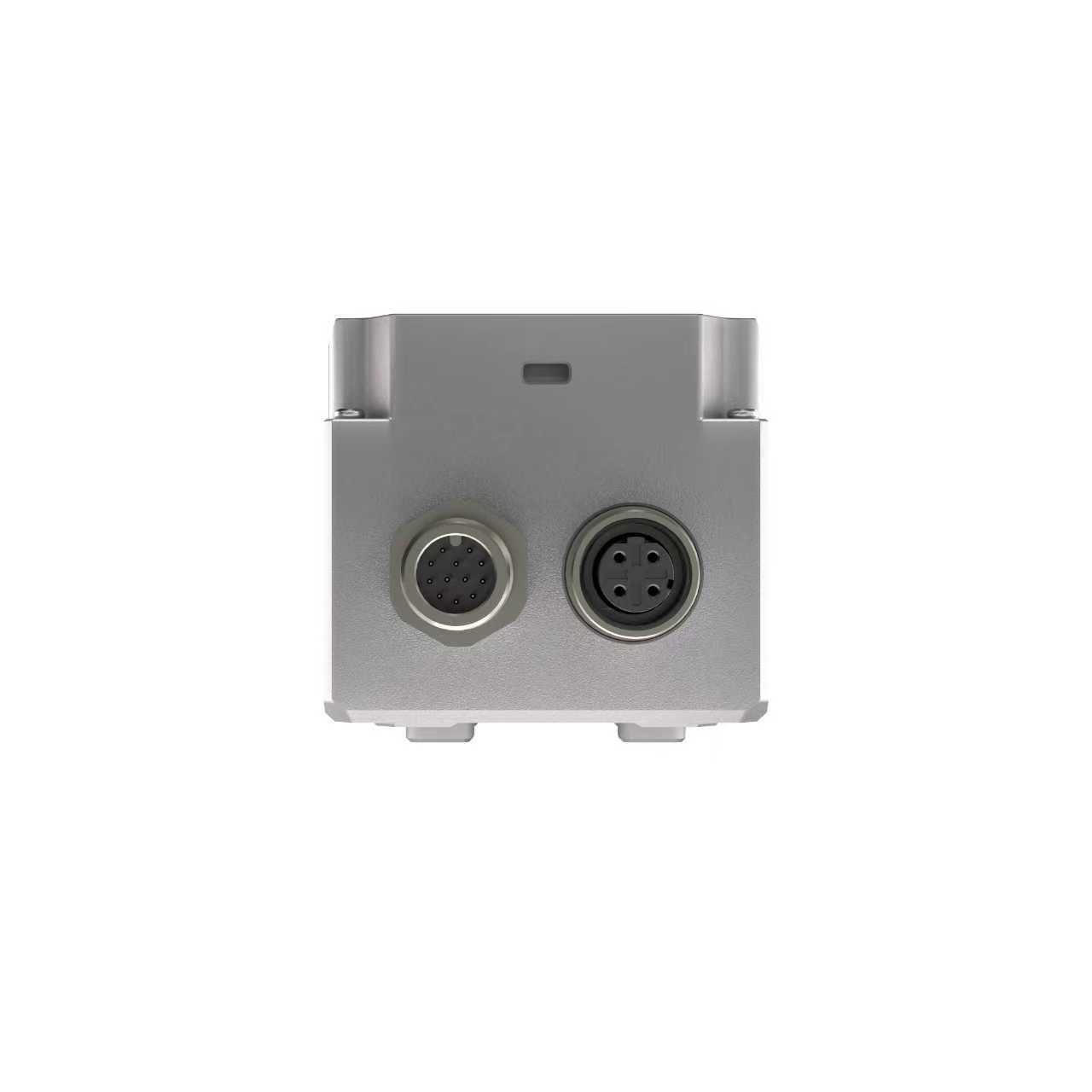

| Input/Output | Non-polarized 2-channel isolated I/O input + Non-polarized 2-channel isolated I/O output | |||
| Barcode level verification | ISO/ IEC 15415, ISO/IEC 16022, ISO/IEC TR29158(AIM DPM-1-2006) | |||
| Power supply | 24VDC±10% | |||
| Temperature | -10°C~45°C | |||
| Protection grade | IP65 | |||
| Certification | CE,FCC,RoHs | |||
2. Long-distance, high- speed mobile reading
For industries such as logistics warehousing, automobile assembly and packaging, it is suitable for long-distance and high-speed mobile reading, especially for strong reflective curved surfaces (engine curve codes/electroplating wheel hubs/high-speed production line can inkjet), high-speed logistics labels and other code reading scenarios.
3.Ultra-long distance, ultra-large field of view reading
For industries such as logistics and warehousing, new energy, etc., it is suitable for reading in ultra-long distance, ultra-large field of view, and ultra-large depth of field, especially for reading scenarios such as express sorting, warehousing and palletizing.
A new generation of one-click debugging +/AI decoding technology
X-Scan™ Modular Code Reading Platform
Advanced Autofocus
| Minimum Order Quantity | 1 |
| Delivery Time | 8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Model | CR-RS210 | CR-RS220 | CR-RS250 | CR-RS290 |
| Supported code system | 2D: DataMatrix (EC C200), QR Code 1D: Code39, Code93, Code128, EAN13, EAN8, UP CE, Interleaved 2 of 5 | |||
| Image sensor | 1280*980Pixel | 2048*1200Pixel | 2560*1920pixel | 5120*3840 Pixel Global Shutter CMOS |
| Max. capture frame rate | 120fps | 120fps | 30fps | 30fps |
| Light source | Light source type: direct light (D), polarized light (P), uniform light (U), ultraviolet light (UV), infrared light (IR) Light source color: red light (R), blue light (B), white light (W) | |||
| Lens focal length | 12mm/16mm/25mm | 12mm/16mm/25mm | 16mm/21mm | 16mm/21mm |
| Fouce system | Motor autofocus | |||
| Instruct | Two green LED dots aiming | |||
| Communication interface | Ethernet@100Mbps, RS232 | |||
| Communication protocol | TCP/IP, RS232, EIP, Profinet, FTP, Modbus TCP, MELSEC | |||
| Input/Output | Non-polarized 2-channel isolated I/O input + Non-polarized 2-channel isolated I/O output | |||
| Barcode level verification | ISO/ IEC 15415, ISO/IEC 16022, ISO/IEC TR29158(AIM DPM-1-2006) | |||
| Power supply | 24VDC±10% | |||
| Temperature | -10°C~45°C | |||
| Protection grade | IP65 | |||
| Certification | CE,FCC,RoHs | |||

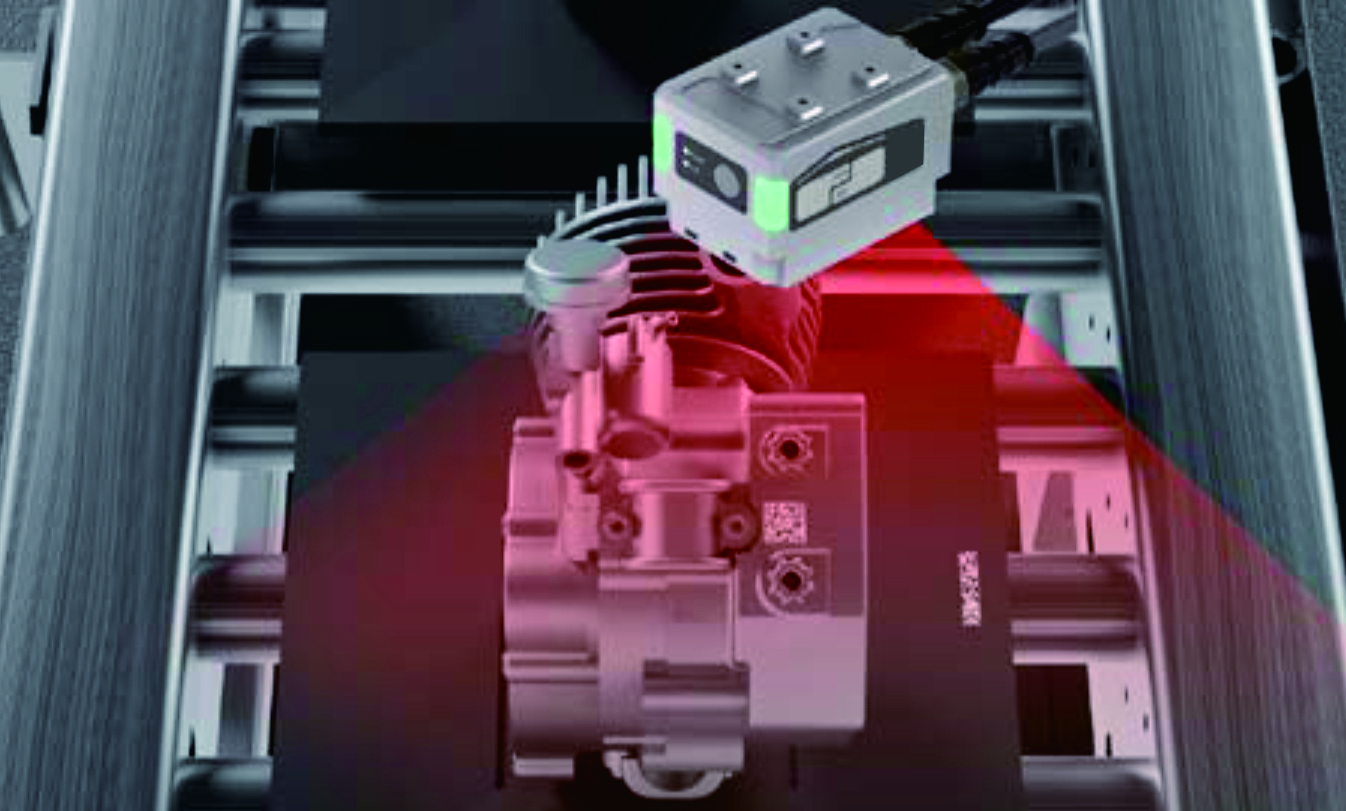

Automotive parts traceability
Read the QR code of parts on the welding/assembly line, bind production data to the MES system, and achieve full life cycle tracking.

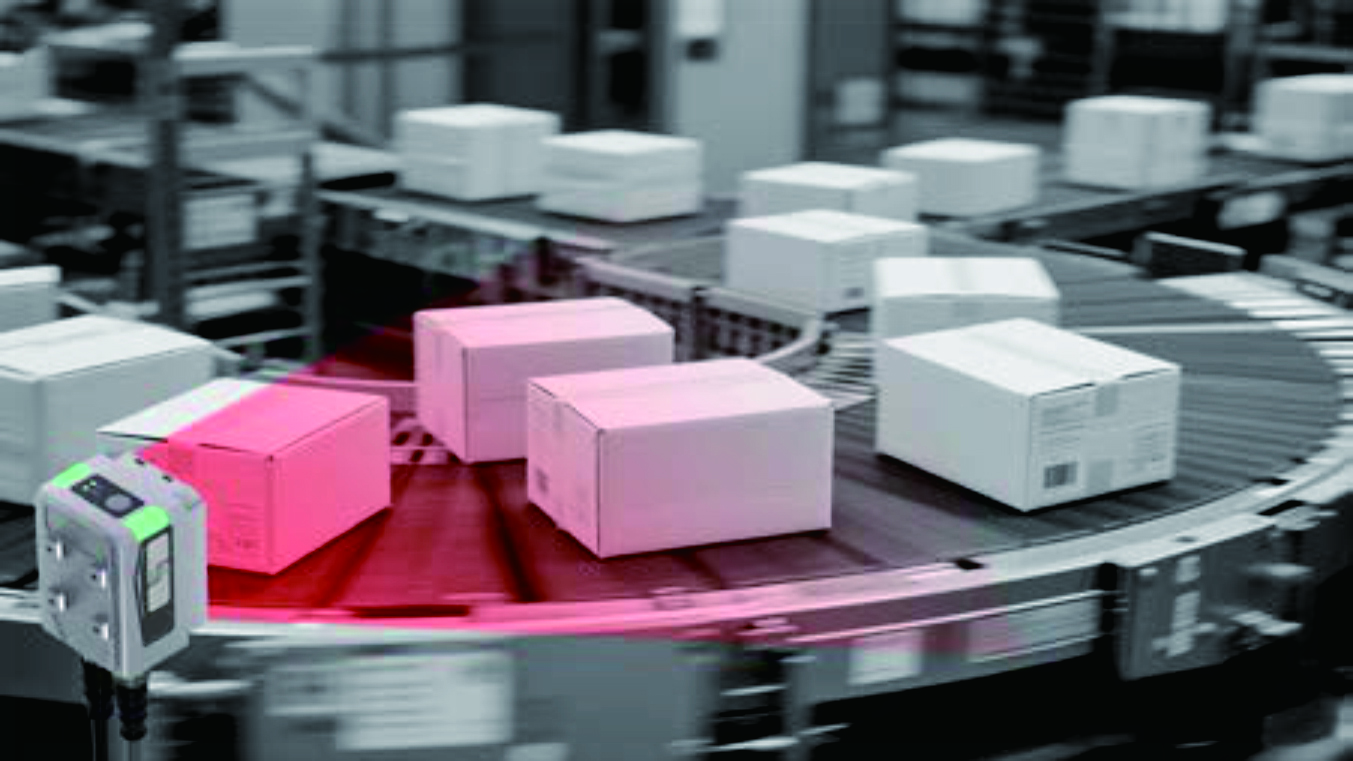

Express logistics sorting
Integrated in the sorting machine, high-speed identification of the parcel surface single barcode, improve sorting accuracy and throughput.

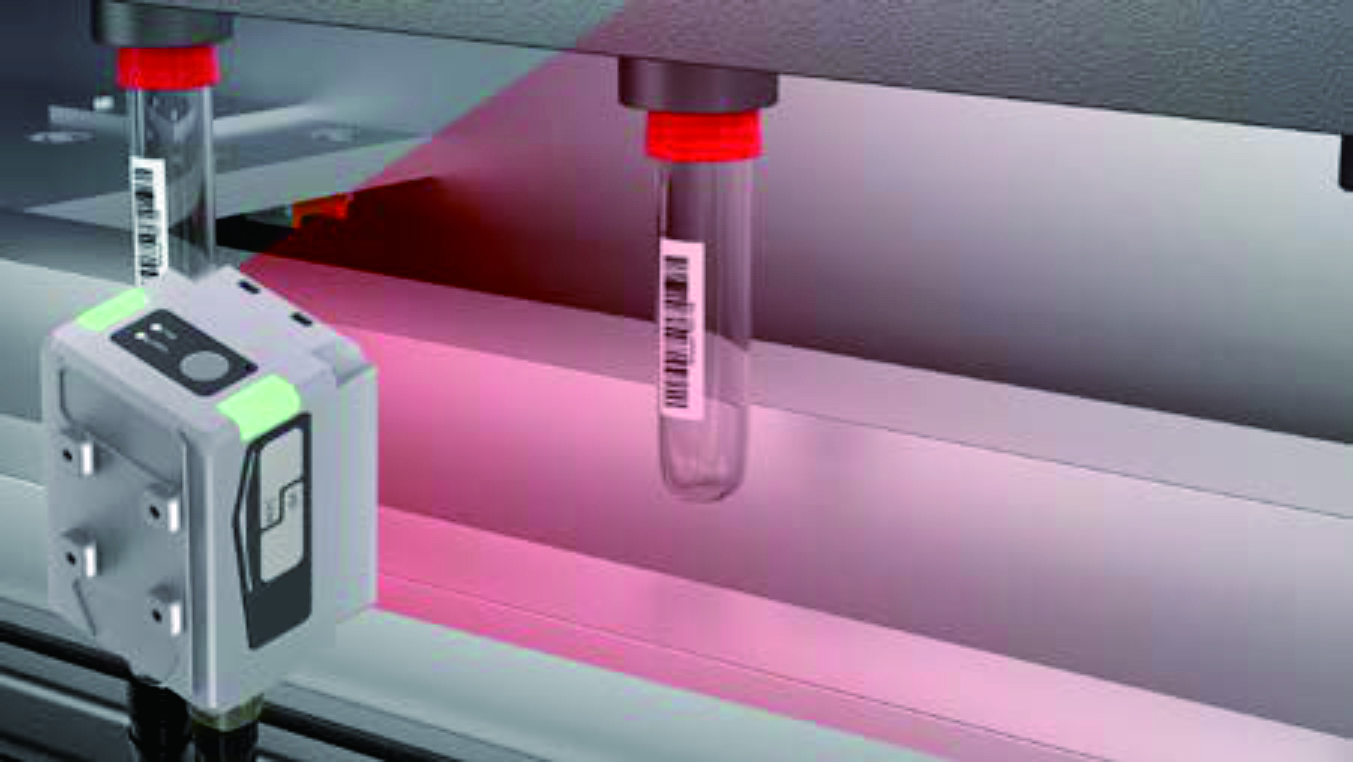

Healthcare
Healthcare
Express logistics sorting
Automotive parts traceability
Automotive parts traceability
Read the QR code of parts on the welding/assembly line, bind production data to the MES system, and achieve full life cycle tracking.
Express logistics sorting
Integrated in the sorting machine, high-speed identification of the parcel surface single barcode, improve sorting accuracy and throughput.
Healthcare
Healthcare
Express logistics sorting
Automotive parts traceability
FAQ
Q1: Can the Barcode Reader scan normally in a strong light environment?
A: Yes. The device has built-in anti-reflection algorithms and adaptive LED fill light, which can cope with direct sunlight or high-intensity lighting environments.
Q2: Does it support reading barcodes on curved surfaces?
A: Yes. Through dynamic focal length adjustment, barcodes on cylindrical containers (such as beverage bottles) or curved metal parts can be read.
Q3: How to clean the lens and protective cover?
A: The IP67 design can be wiped directly with a wet cloth to avoid the use of corrosive solvents. Regular monthly maintenance is recommended.
Q4: Can it be connected to the existing WMS/MES system?
A: Yes. Provide standard communication protocols (TCP/IP, PROFINET) and API interfaces for quick connection to enterprise management systems.
Q5: Does the device installation require professional debugging?
A: Plug-and-play design, providing autofocus and parameter preset functions, ordinary engineers can complete deployment within 15 minutes.
FAQ
Q1: Can the Barcode Reader scan normally in a strong light environment?
A: Yes. The device has built-in anti-reflection algorithms and adaptive LED fill light, which can cope with direct sunlight or high-intensity lighting environments.
Q2: Does it support reading barcodes on curved surfaces?
A: Yes. Through dynamic focal length adjustment, barcodes on cylindrical containers (such as beverage bottles) or curved metal parts can be read.
Q3: How to clean the lens and protective cover?
A: The IP67 design can be wiped directly with a wet cloth to avoid the use of corrosive solvents. Regular monthly maintenance is recommended.
Q4: Can it be connected to the existing WMS/MES system?
A: Yes. Provide standard communication protocols (TCP/IP, PROFINET) and API interfaces for quick connection to enterprise management systems.
Q5: Does the device installation require professional debugging?
A: Plug-and-play design, providing autofocus and parameter preset functions, ordinary engineers can complete deployment within 15 minutes.
