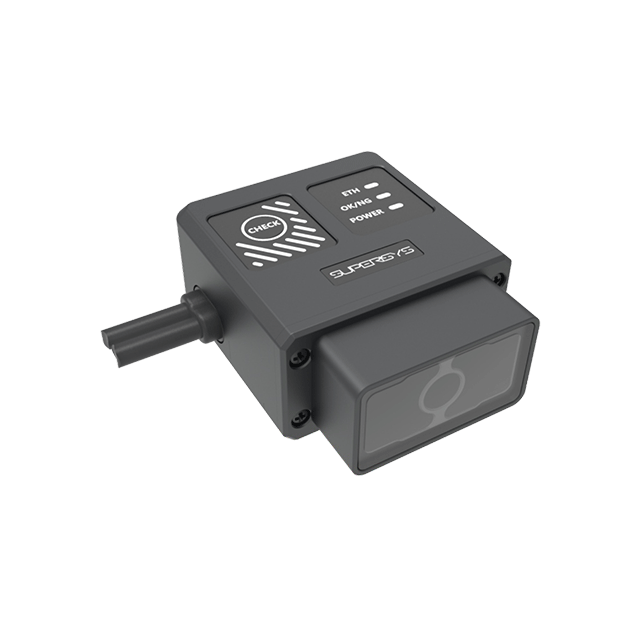

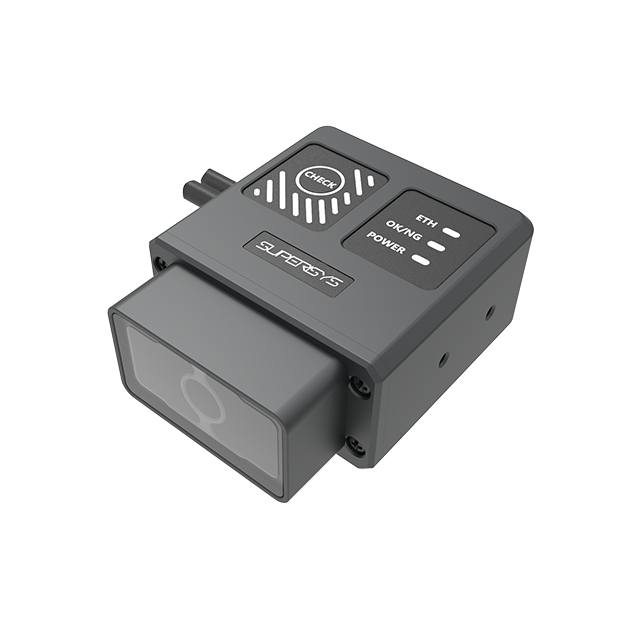

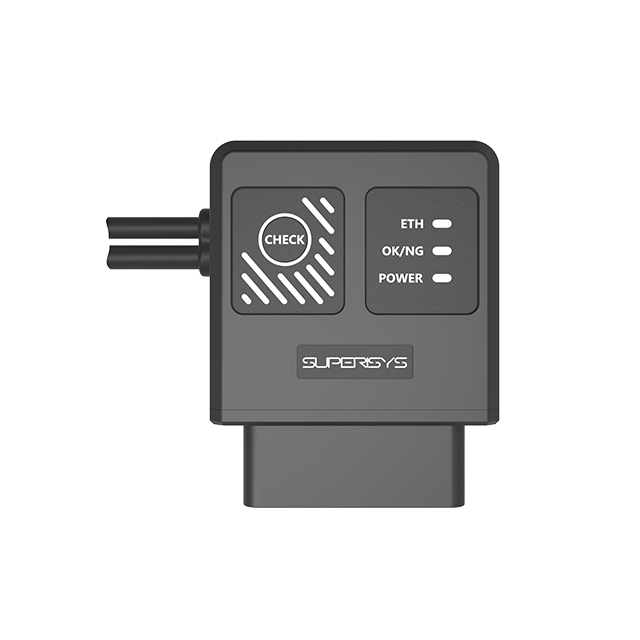

CR-HC701X-12RA
Superisys
| Availability: | |
|---|---|
| Quantity: | |
New upgrade, better performance, better decoding ability
Vericode code compatibility
Enhanced image contrast with high light LED
Multiple sets of parameters, better deal with mixed line production
Modular installation, support to change the M-port lens
IP65 rating
A variety of customization solutions, supporting various scenarios
Supports a variety of communication methods, Support Modbus, PN, MC, EthernetIP protocols
| Minimum Order Quantity | 1 |
| Delivery Time | 8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Model | CR-HC701X-05RXX | CR-HC701X-16RXX | CR-HC701X--6RA | CR-HC701X-12RA | CR-HC701X-C |
| Sensor Type | Global shutter CMOS image sensor | ||||
| Resolution | 1280*1080 | 1280*1080 | 1280*1080 | ||
| colour | Black&White | ||||
| Frame rate | 60fps | 60fps | 60fps | ||
| Light source | Red and white optional, 32 high-lighted leds | ||||
| Input voltage | 5V-24V DC ±10% | ||||
| Power | <3.5W | ||||
| IO Import | 1 way optical coupling isolated inputs, support NPN, PNP access mode | ||||
| IO Output | 1way optical coupling isolated output, support NPN, PNP, switch control mode | ||||
| Serial port | RS232C, RS485, support no protocol, ModBus RTU protocol | ||||
| Ethernet | 10/100 baseT,Support TCP/IP，Modbus TCP, EthernetlP，Profinet | ||||
| 2D | PDF 417, DataMatrix, Maxicode, QR code.Hanxin,Vercode,etc | ||||
| 1D | Code 128, Code 39, Code 93, Code 11 , Interleaved 2 of 5 , Codabar, GS1 DataBar, UPC, EAN,etc. | ||||
| Field Angle | Horizontal 31° Vertical :26° | Horizontal :16° Vertical :13° | Horizontal :49° Vertical :32° | Horizontal :27° Vertical :17° | Horizontal :26° Vertical :20° |
| Camera lens | 5mm | 16mm | 6mm Electronic lens | 12mm Electronic lens | C-mount or telecentric lens |
| Distance | 60mm-600mm | 75mm-600mm | 60-600mm | 75mm-600mm | 75mm-600mm |
| Weight | About 190g | ||||
| Operating temperature | -10°C~+50°C | ||||
| Storage temperature | -20°C~+70°C | ||||
| Humidity | 5% to 95% no condensation | ||||
| Electrostatic protection | +8KV(direct discharge) | ||||
| Level of protection | IP65 | ||||
New upgrade, better performance, better decoding ability
Vericode code compatibility
Enhanced image contrast with high light LED
Multiple sets of parameters, better deal with mixed line production
Modular installation, support to change the M-port lens
IP65 rating
A variety of customization solutions, supporting various scenarios
Supports a variety of communication methods, Support Modbus, PN, MC, EthernetIP protocols
| Minimum Order Quantity | 1 |
| Delivery Time | 8 Work Days |
| Stock | In Stock |
| Payment Terms | T/T, Western Union |
| Model | CR-HC701X-05RXX | CR-HC701X-16RXX | CR-HC701X--6RA | CR-HC701X-12RA | CR-HC701X-C |
| Sensor Type | Global shutter CMOS image sensor | ||||
| Resolution | 1280*1080 | 1280*1080 | 1280*1080 | ||
| colour | Black&White | ||||
| Frame rate | 60fps | 60fps | 60fps | ||
| Light source | Red and white optional, 32 high-lighted leds | ||||
| Input voltage | 5V-24V DC ±10% | ||||
| Power | <3.5W | ||||
| IO Import | 1 way optical coupling isolated inputs, support NPN, PNP access mode | ||||
| IO Output | 1way optical coupling isolated output, support NPN, PNP, switch control mode | ||||
| Serial port | RS232C, RS485, support no protocol, ModBus RTU protocol | ||||
| Ethernet | 10/100 baseT,Support TCP/IP，Modbus TCP, EthernetlP，Profinet | ||||
| 2D | PDF 417, DataMatrix, Maxicode, QR code.Hanxin,Vercode,etc | ||||
| 1D | Code 128, Code 39, Code 93, Code 11 , Interleaved 2 of 5 , Codabar, GS1 DataBar, UPC, EAN,etc. | ||||
| Field Angle | Horizontal 31° Vertical :26° | Horizontal :16° Vertical :13° | Horizontal :49° Vertical :32° | Horizontal :27° Vertical :17° | Horizontal :26° Vertical :20° |
| Camera lens | 5mm | 16mm | 6mm Electronic lens | 12mm Electronic lens | C-mount or telecentric lens |
| Distance | 60mm-600mm | 75mm-600mm | 60-600mm | 75mm-600mm | 75mm-600mm |
| Weight | About 190g | ||||
| Operating temperature | -10°C~+50°C | ||||
| Storage temperature | -20°C~+70°C | ||||
| Humidity | 5% to 95% no condensation | ||||
| Electrostatic protection | +8KV(direct discharge) | ||||
| Level of protection | IP65 | ||||

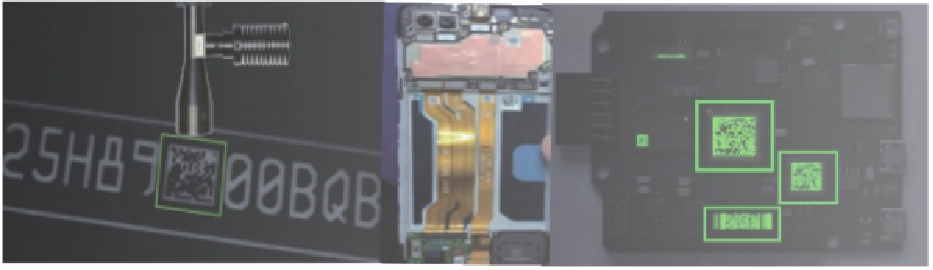

Automotive parts traceability
Read the QR code of parts on the welding/assembly line, bind production data to the MES system, and achieve full life cycle tracking.
Express logistics sorting
Integrated in the sorting machine, high-speed identification of the parcel surface single barcode, improve sorting accuracy and throughput.
Drug packaging supervision
Scan the QR code of the drug packaging to verify the batch information to ensure compliance and anti-counterfeiting traceability.
Food production traceability
Read the laser marking code on the metal can body and record key data such as production time and production line number.
Warehouse inventory management
Fixed installation on the shelf channel, automatically scan the pallet barcode, and update the inventory status in real time.
Automotive parts traceability
Read the QR code of parts on the welding/assembly line, bind production data to the MES system, and achieve full life cycle tracking.
Express logistics sorting
Integrated in the sorting machine, high-speed identification of the parcel surface single barcode, improve sorting accuracy and throughput.
Drug packaging supervision
Scan the QR code of the drug packaging to verify the batch information to ensure compliance and anti-counterfeiting traceability.
Food production traceability
Read the laser marking code on the metal can body and record key data such as production time and production line number.
Warehouse inventory management
Fixed installation on the shelf channel, automatically scan the pallet barcode, and update the inventory status in real time.
FAQ
Q1: Can the Barcode Reader scan normally in a strong light environment?
A: Yes. The device has built-in anti-reflection algorithms and adaptive LED fill light, which can cope with direct sunlight or high-intensity lighting environments.
Q2: Does it support reading barcodes on curved surfaces?
A: Yes. Through dynamic focal length adjustment, barcodes on cylindrical containers (such as beverage bottles) or curved metal parts can be read.
Q3: How to clean the lens and protective cover?
A: The IP67 design can be wiped directly with a wet cloth to avoid the use of corrosive solvents. Regular monthly maintenance is recommended.
Q4: Can it be connected to the existing WMS/MES system?
A: Yes. Provide standard communication protocols (TCP/IP, PROFINET) and API interfaces for quick connection to enterprise management systems.
Q5: Does the device installation require professional debugging?
A: Plug-and-play design, providing autofocus and parameter preset functions, ordinary engineers can complete deployment within 15 minutes.
FAQ
Q1: Can the Barcode Reader scan normally in a strong light environment?
A: Yes. The device has built-in anti-reflection algorithms and adaptive LED fill light, which can cope with direct sunlight or high-intensity lighting environments.
Q2: Does it support reading barcodes on curved surfaces?
A: Yes. Through dynamic focal length adjustment, barcodes on cylindrical containers (such as beverage bottles) or curved metal parts can be read.
Q3: How to clean the lens and protective cover?
A: The IP67 design can be wiped directly with a wet cloth to avoid the use of corrosive solvents. Regular monthly maintenance is recommended.
Q4: Can it be connected to the existing WMS/MES system?
A: Yes. Provide standard communication protocols (TCP/IP, PROFINET) and API interfaces for quick connection to enterprise management systems.
Q5: Does the device installation require professional debugging?
A: Plug-and-play design, providing autofocus and parameter preset functions, ordinary engineers can complete deployment within 15 minutes.
