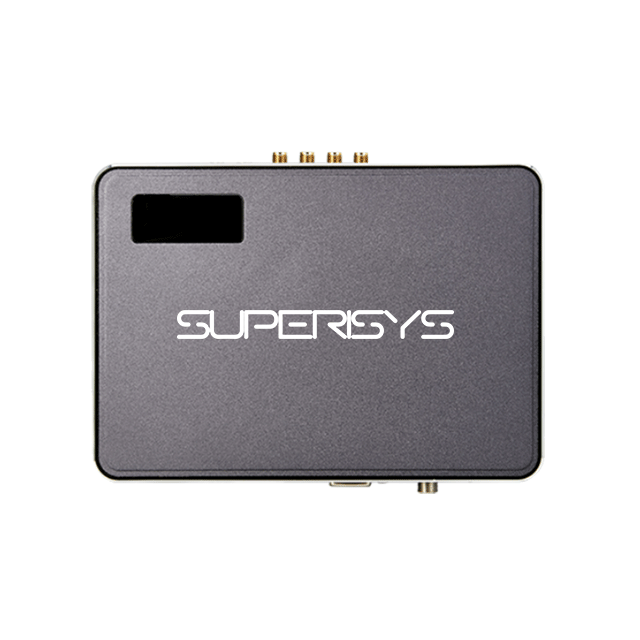

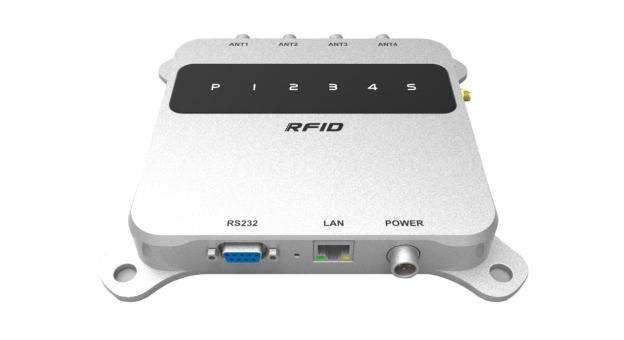

RF-US183-4ANT
Superisys
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction
4-port split UHF RFID readers (such as Impinj Speedway R420, Zebra FX9600) are ideal for automotive manufacturing and logistics management due to the following features:
Multi-antenna collaboration: supports independent control of 4 antennas to cover a wider area or achieve precise positioning.
High power adjustable (usually 4×30dBm), suitable for tag reading in metal environments.
Split design: The reader and antenna are deployed separately, suitable for harsh industrial environments such as high temperature and oil pollution.
Protocol compatibility: supports EPC Gen2/ISO 18000-63, matching mainstream tags in the automotive industry.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | RF-US183-4ANT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) |
| Working frequency | CN：920-925MHz（SRRC） ETSI:865MHz-868MHz |
| Shell material | Aluminum alloy |
Output powe | 5-33dbm adjustable，Stepping:1dbm |
| Operating temperature | -20~60℃ |
| Storage temperature | -40~85℃ |
| Operating humidity | 5%~95%RH(Non-condensing) |
| Interface | RJ45:10M/100M Adaptive network port RS232: support 9600-230400bps RS485:support 19200-921600bps WG:SupportWG26/WG34/WG66 protocol |
Communication interface (Optional) | Bluetooth: BLE5.2, wireless standard (802.15.1), 2.4GHz WIFI: wireless standard (802.11b/g/n), 2.4GHz, supports Open/WEP/WPA-PSK/WPA2-PSK security mode, AP, STA mode. 4G: full network access, standard (TD-LTE/FDD-LTE) |
| Antenna interface | 4 TNC interfaces (male external thread) |
Supply voltage | Power supply 9-24V Standard adapter 12V/3A POE power supply (compatible with 802.3af or 802.3at standards) |
| Power consumption | Standby 1.6W Working 10.8W (MAX) |
Label reading rate | More than 900 tags/second |
| Tag recognition distance | More than 10 meters, use 8dbi aluminum antenna The writing distance is about 50% of the reading distance .The specific reading and writing performance depends on the antenna and tag used |
| I/O | 4input 4output |
Siz | 183.4mm ×174.4mm ×25 mm |
| Operating temperature | -20~60℃ |
| Storage temperature | -40~85℃ |
| Weight | 650g |
Product Introduction
4-port split UHF RFID readers (such as Impinj Speedway R420, Zebra FX9600) are ideal for automotive manufacturing and logistics management due to the following features:
Multi-antenna collaboration: supports independent control of 4 antennas to cover a wider area or achieve precise positioning.
High power adjustable (usually 4×30dBm), suitable for tag reading in metal environments.
Split design: The reader and antenna are deployed separately, suitable for harsh industrial environments such as high temperature and oil pollution.
Protocol compatibility: supports EPC Gen2/ISO 18000-63, matching mainstream tags in the automotive industry.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Model | RF-US183-4ANT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) |
| Working frequency | CN：920-925MHz（SRRC） ETSI:865MHz-868MHz |
| Shell material | Aluminum alloy |
Output powe | 5-33dbm adjustable，Stepping:1dbm |
| Operating temperature | -20~60℃ |
| Storage temperature | -40~85℃ |
| Operating humidity | 5%~95%RH(Non-condensing) |
| Interface | RJ45:10M/100M Adaptive network port RS232: support 9600-230400bps RS485:support 19200-921600bps WG:SupportWG26/WG34/WG66 protocol |
Communication interface (Optional) | Bluetooth: BLE5.2, wireless standard (802.15.1), 2.4GHz WIFI: wireless standard (802.11b/g/n), 2.4GHz, supports Open/WEP/WPA-PSK/WPA2-PSK security mode, AP, STA mode. 4G: full network access, standard (TD-LTE/FDD-LTE) |
| Antenna interface | 4 TNC interfaces (male external thread) |
Supply voltage | Power supply 9-24V Standard adapter 12V/3A POE power supply (compatible with 802.3af or 802.3at standards) |
| Power consumption | Standby 1.6W Working 10.8W (MAX) |
Label reading rate | More than 900 tags/second |
| Tag recognition distance | More than 10 meters, use 8dbi aluminum antenna The writing distance is about 50% of the reading distance .The specific reading and writing performance depends on the antenna and tag used |
| I/O | 4input 4output |
Siz | 183.4mm ×174.4mm ×25 mm |
| Operating temperature | -20~60℃ |
| Storage temperature | -40~85℃ |
| Weight | 650g |
Internal antenna, compact in size, easy to install .
Supports both active and passive reading modes, effectively saving reading energy consumption.
Excellent anti-collision algorithm, with the highest tag recognition rate reaching 120pcs/s.
Global Gen2 platform, adaptable to RFID application needs in different countries and regions.
RF power output range is 15-27dBm, adjustable via software.
Superior reception sensitivity, reaching up to -73dBm.
Automobile automation,
Logistics sorting
Warehousing management
Internal antenna, compact in size, easy to install .
Supports both active and passive reading modes, effectively saving reading energy consumption.
Excellent anti-collision algorithm, with the highest tag recognition rate reaching 120pcs/s.
Global Gen2 platform, adaptable to RFID application needs in different countries and regions.
RF power output range is 15-27dBm, adjustable via software.
Superior reception sensitivity, reaching up to -73dBm.
Automobile automation,
Logistics sorting
Warehousing management
