Features

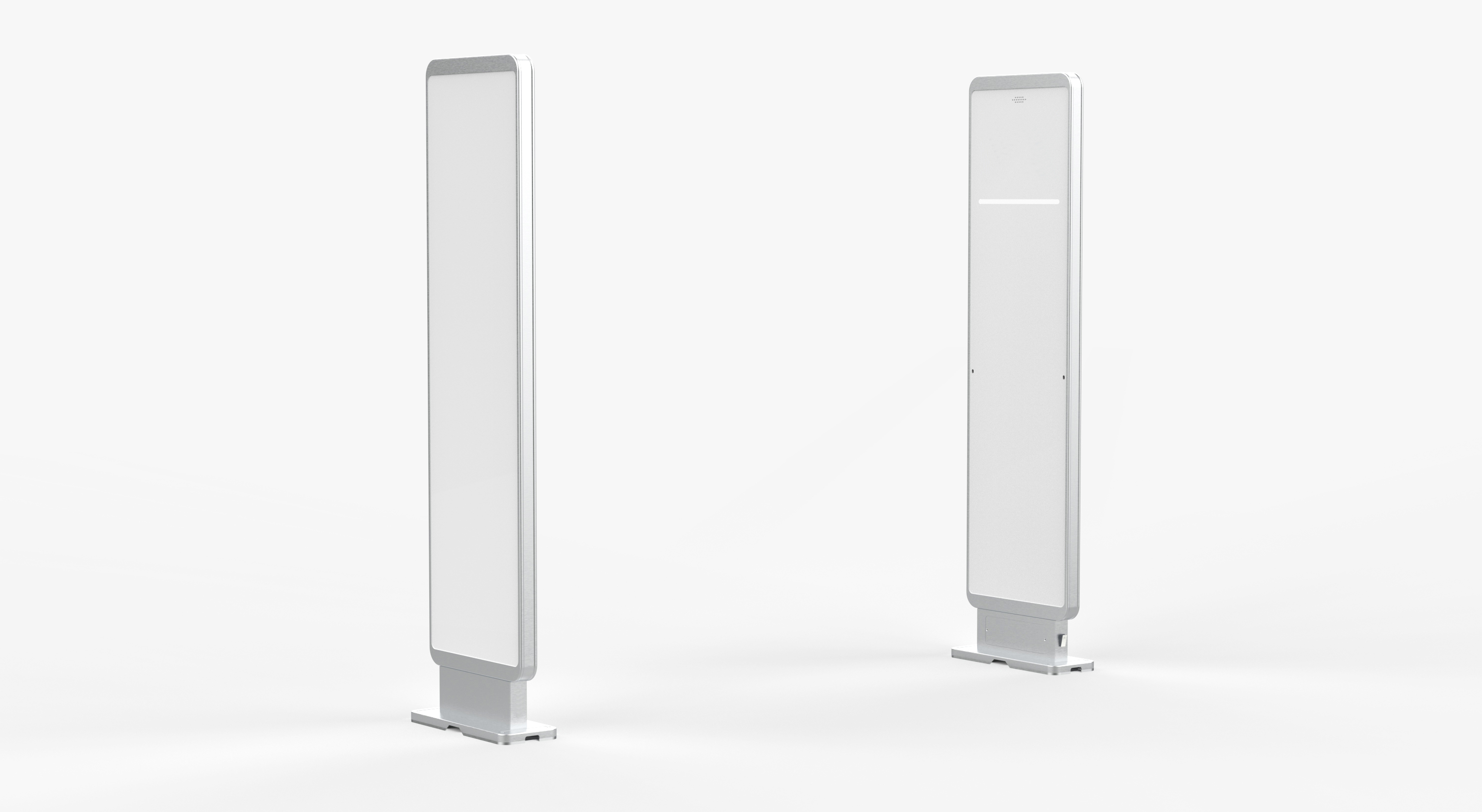

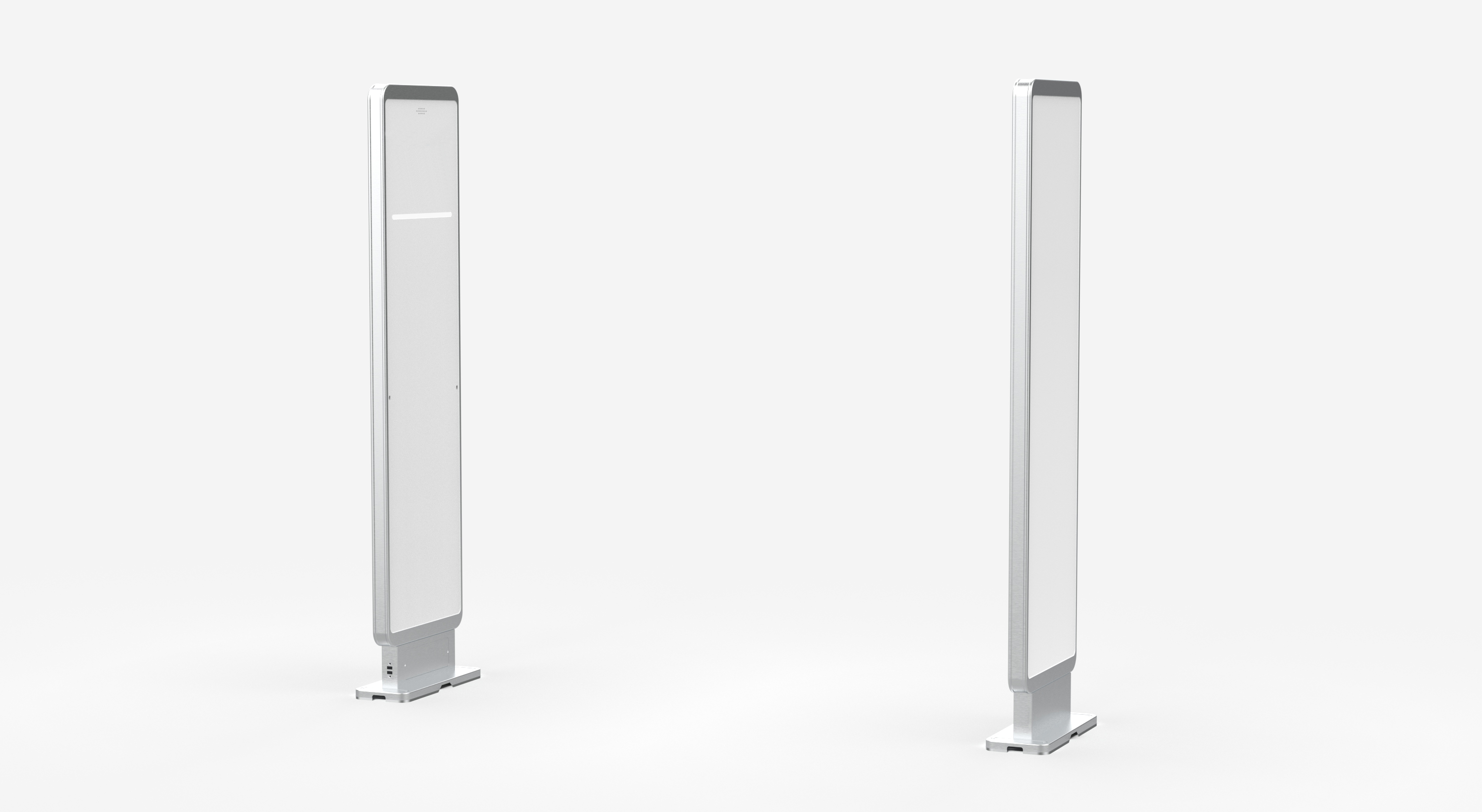

RFID vertical access control
Antenna design: Realize the horizontal narrow beam design, the access control coverage area is accurate, and there are no blind spots.
Multi-function alarm: built-in alarm light and buzzer, alarm sensitive, safe and reliable, alarm information.
Durability: Reading by infrared trigger, which can greatly extend the service life of the device.
Multiple communications: Support network port communication, can expand WIFI and RS232.
Data communication: 10.1 inch touch screen, can be frontend interaction or combined with background system, can provide a variety of statistical information.
Parameters
| Type | RF-UG-15 |
| Working frequency | 840-960Mhz |
| Material | Tempered glass panel, aluminum alloy body |
| Wireless protocol | ISO 18000-6C（Class 1 Gen 2） |
|
|
|
| Output power | 33dBm+1dB，Step 1dB |
| Communicatjion interface | RS-232、TCP/IP、WIFI |
| Communication protocol | TCP/IP、DHCP、SSH、FTP、Telnet&UDP |
| Hardware interface | RJ45 |
| Power supply voltage | Power adapter: AC input 100–240V/50–60Hz, DC output 12V/5A DC power supply: 12V–24V/5A |
| Tag cache | 10,000 tags @ 96-bit EPC |
| Tag reading rate | ＞900 tags/second |
| Operating Modes | Master-Slave Mode / Standalone Mode / Trigger Mode |
| Total unit power | 5W~24W |
| LED | Red/Green |
| System | Android11 |
CPU
| RK3568 |
| Memory | 4G RAM+16G ROM |
| Development language | C#, Java, Android |
Installation type
| No-groove installation; includes stainless steel cable trunking. |
Working voltage
| AC220V±10％ |
| Working temperature | -10℃ -- +50℃ |
| Size | 390MM(L)*45MM（W)*1524·MM(H)
|
Color
| white+grey |

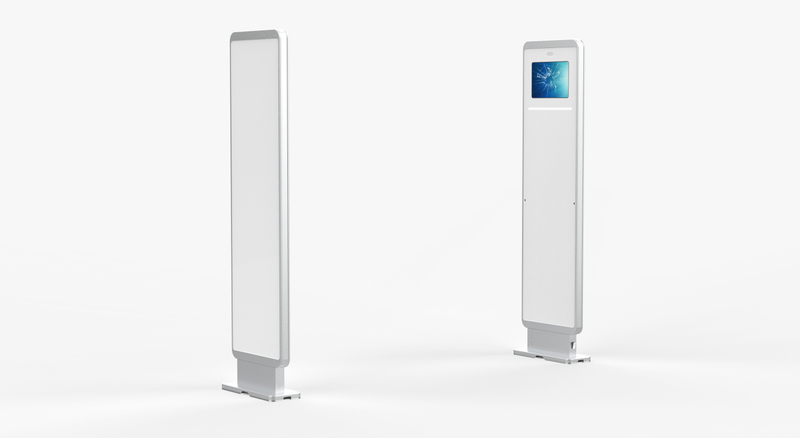

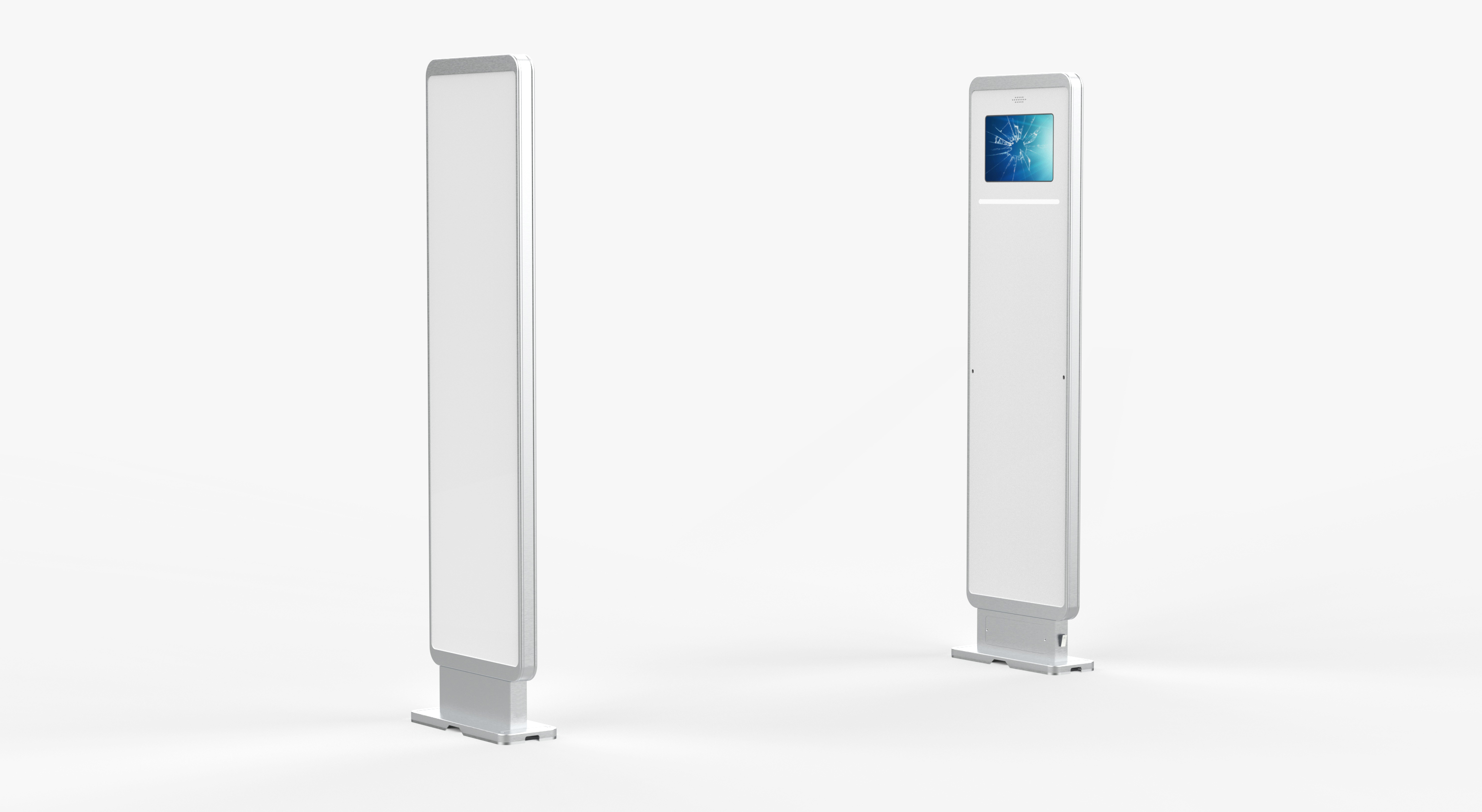

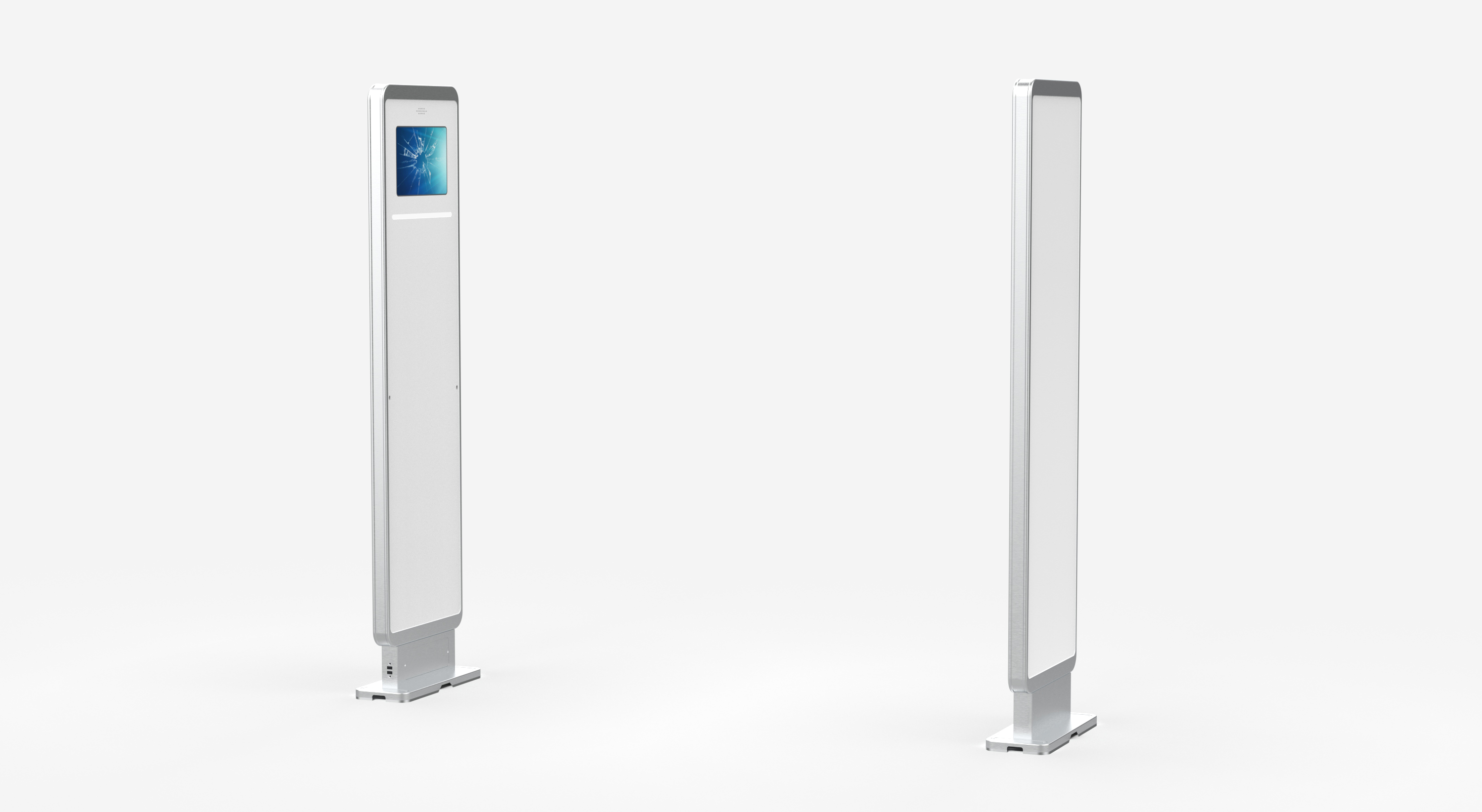

| Other option | with touch screen, 10.1”touchscreen, 1280*800 resolution |
Application

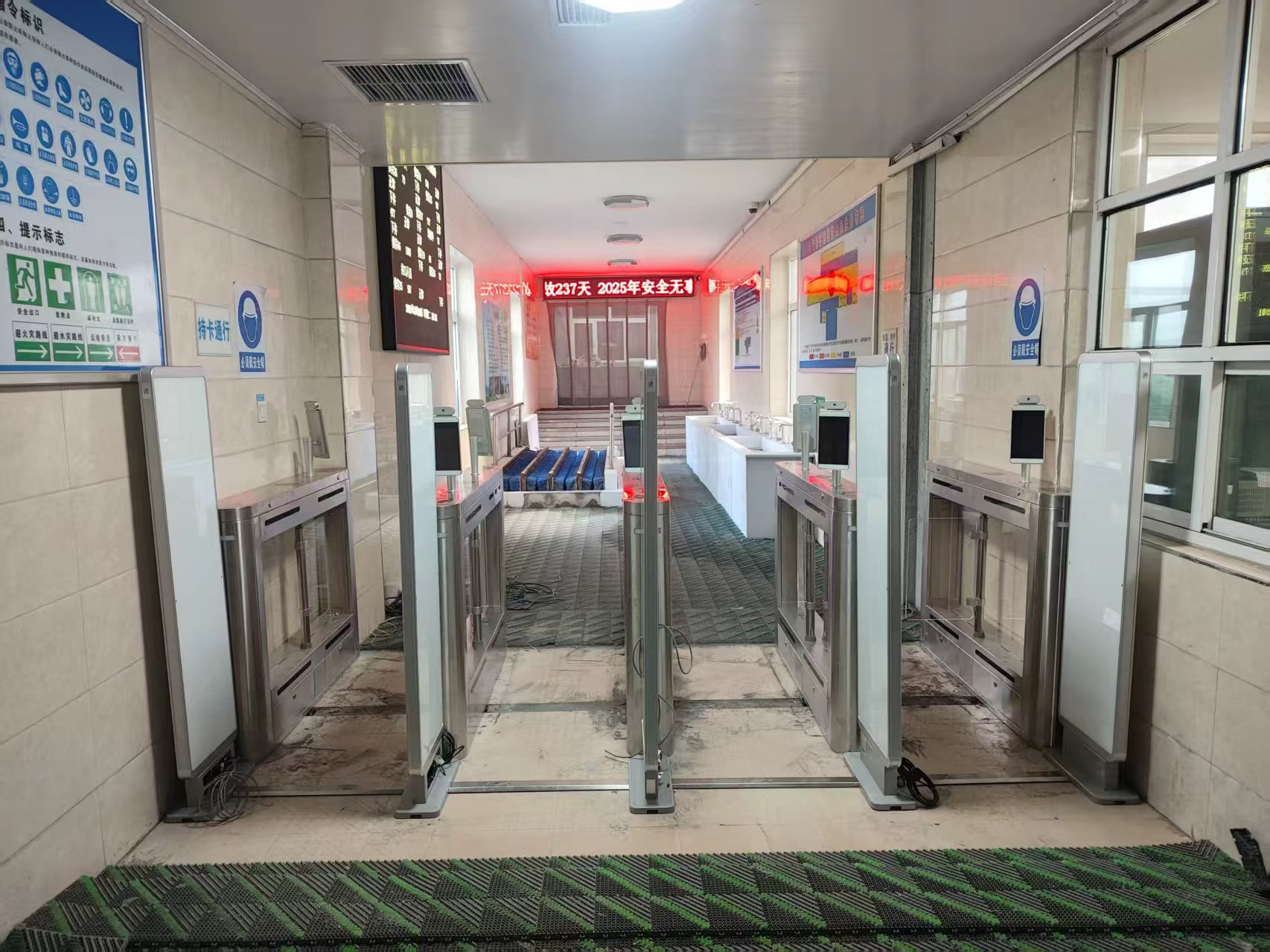

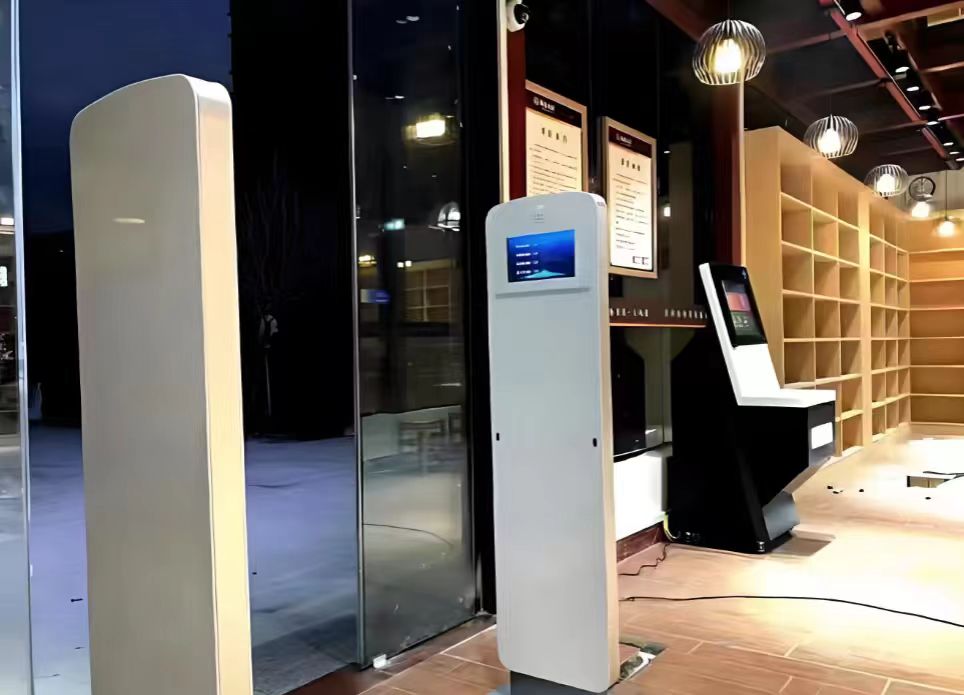

It can be widely applied in various RFID systems, such as those for logistics, access control, apparel, retail, warehousing, anti-counterfeiting, and smart manufacturing.
