RF-UZMTY16MT-H3
Superisys
Anti-Metal tag
| Availability: | |
|---|---|
| Quantity: | |

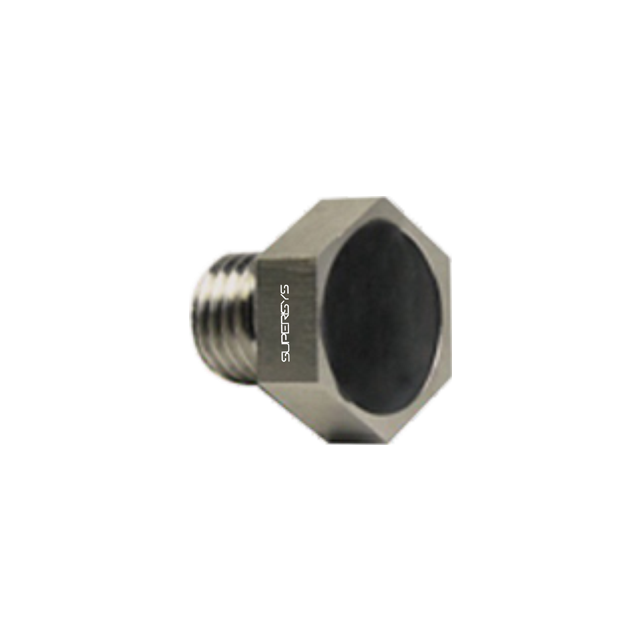

The threaded UHF RFID tag is a special RFID tag designed for metal threaded interface environments. It uses anti-metal material + threaded packaging structure and can be directly screwed into the threaded hole of the equipment for use. It shows unique advantages in scenarios such as industrial equipment management, energy facilities, and military equipment.
| Minimum Order Quantity | Price | Delivery Time | Stock | Description | Payment Terms | Supply Ability |
| one | Large quantity price negotiable | 5-8 Work Days | In Stock | Size(mm)41*29*9mm,High temperature bearing body,RFID carrier identified by 8k bit tool, | T/T, Western Union | 1000 per day |
| Model | RF-UZMTY16MT-H3 |
| Air mouth agreement | ISO 18000-6C Class 1 Gen 2 |
| Working frequency | 902-928MHz |
| Chip | Alien H3 |
| EPC memory size | 96 Bits |
| USER memory size | 512Bits |
| TID | 64 Bits |
| Size (mm) | 29*25*25mm(Screw) |
| Material | 304SS |
| Installation | Bolt M16*10mm |
| Class | IP68 |
| Weight | 50g |
| Operating temperature | -25℃~85℃ |
| Storage temperature | -40℃~150℃ |
| Metal resistance | Antimetal |
| Other | heat resistant 150℃ |
| Read distance | 0-0.5m |
The threaded UHF RFID tag is a special RFID tag designed for metal threaded interface environments. It uses anti-metal material + threaded packaging structure and can be directly screwed into the threaded hole of the equipment for use. It shows unique advantages in scenarios such as industrial equipment management, energy facilities, and military equipment.
| Minimum Order Quantity | Price | Delivery Time | Stock | Description | Payment Terms | Supply Ability |
| one | Large quantity price negotiable | 5-8 Work Days | In Stock | Size(mm)41*29*9mm,High temperature bearing body,RFID carrier identified by 8k bit tool, | T/T, Western Union | 1000 per day |
| Model | RF-UZMTY16MT-H3 |
| Air mouth agreement | ISO 18000-6C Class 1 Gen 2 |
| Working frequency | 902-928MHz |
| Chip | Alien H3 |
| EPC memory size | 96 Bits |
| USER memory size | 512Bits |
| TID | 64 Bits |
| Size (mm) | 29*25*25mm(Screw) |
| Material | 304SS |
| Installation | Bolt M16*10mm |
| Class | IP68 |
| Weight | 50g |
| Operating temperature | -25℃~85℃ |
| Storage temperature | -40℃~150℃ |
| Metal resistance | Antimetal |
| Other | heat resistant 150℃ |
| Read distance | 0-0.5m |
1. Physical integration: Direct screw-in installation of threaded structure
2. Environmental tolerance: IP68 protection level, oil pressure/vibration resistance
3. Metal adaptability: Ceramic substrate + threaded metal shell
4. Temperature stability: -40℃~150℃ long-term stability (short-term 200℃)
5. Concealed security: Embedded installation to prevent tampering
6. Maintenance convenience: Repeatable disassembly and assembly without affecting performance
1. Industrial equipment management
Application: Management of machine tool tools, molds, and hydraulic joints
Example: Implanting tags in the threaded holes of the tool shanks of CNC machining centers to track tool life
2. Energy facility monitoring
Application: Oil and gas pipeline valves, bolt nodes of power equipment
Example: Installing tags on the threaded positions of oilfield Christmas tree valves to record maintenance history
3. Military equipment maintenance
Application: Management of threaded interface components of weapon systems
Advantages: Concealed installation does not affect the air tightness of equipment
4. Transportation facilities
Application: Rail fastening bolts, bridge prestressed anchor rods
Features: Seismic design ensures long-term stability
1. Physical integration: Direct screw-in installation of threaded structure
2. Environmental tolerance: IP68 protection level, oil pressure/vibration resistance
3. Metal adaptability: Ceramic substrate + threaded metal shell
4. Temperature stability: -40℃~150℃ long-term stability (short-term 200℃)
5. Concealed security: Embedded installation to prevent tampering
6. Maintenance convenience: Repeatable disassembly and assembly without affecting performance
1. Industrial equipment management
Application: Management of machine tool tools, molds, and hydraulic joints
Example: Implanting tags in the threaded holes of the tool shanks of CNC machining centers to track tool life
2. Energy facility monitoring
Application: Oil and gas pipeline valves, bolt nodes of power equipment
Example: Installing tags on the threaded positions of oilfield Christmas tree valves to record maintenance history
3. Military equipment maintenance
Application: Management of threaded interface components of weapon systems
Advantages: Concealed installation does not affect the air tightness of equipment
4. Transportation facilities
Application: Rail fastening bolts, bridge prestressed anchor rods
Features: Seismic design ensures long-term stability
