Features

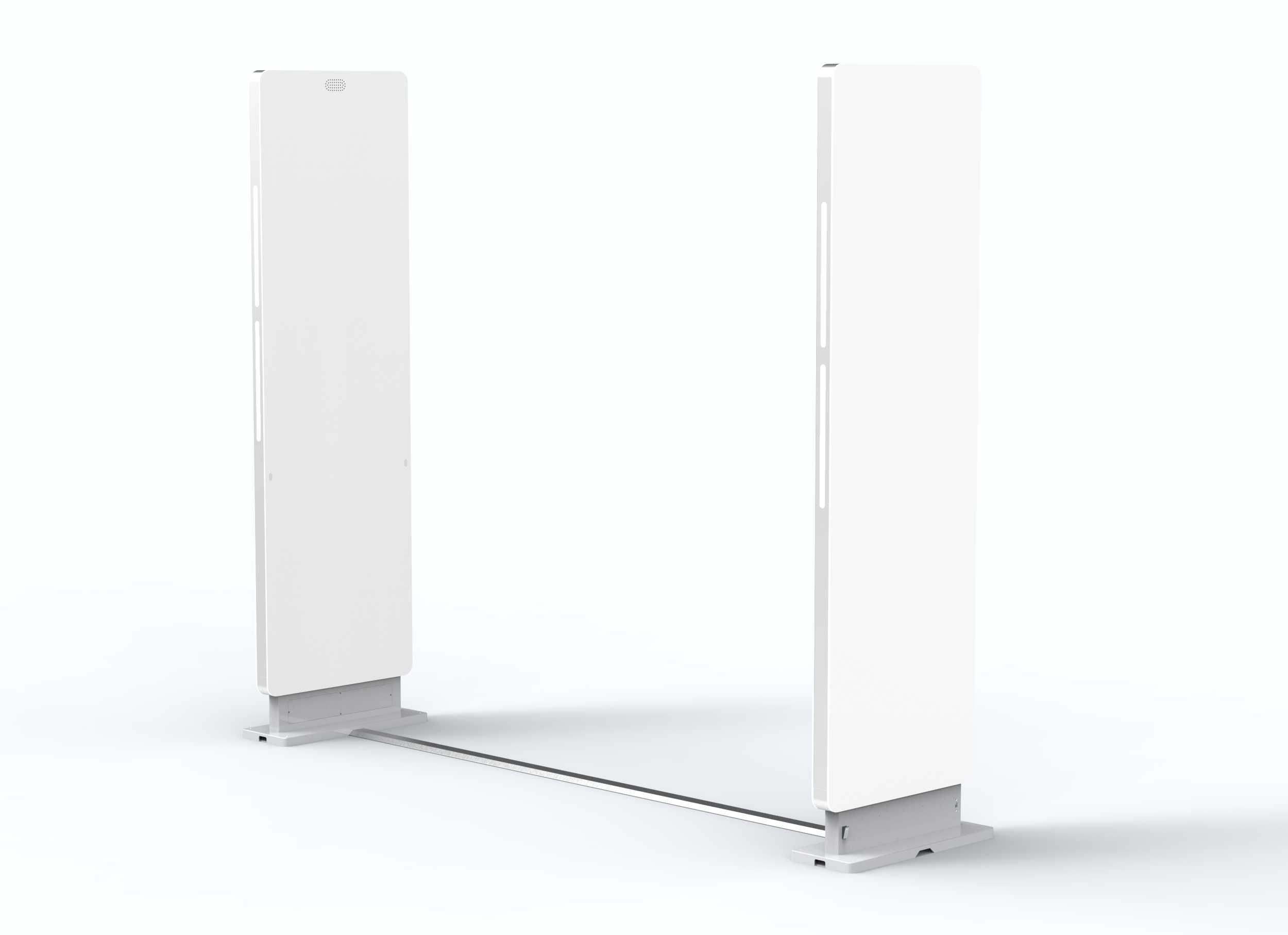

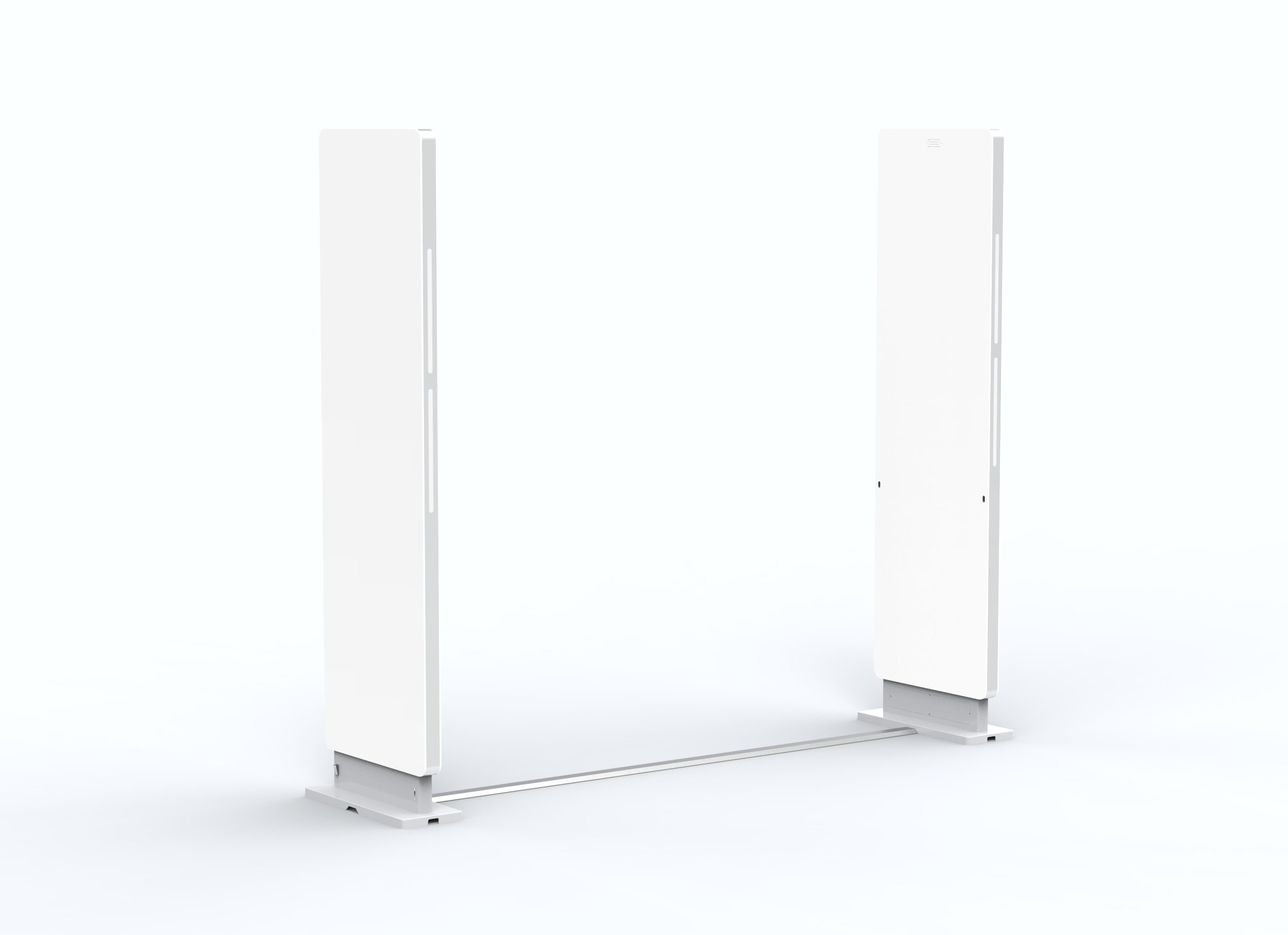

RF-UG-20GX UHF Portal Reader – Key Features
High-performance UHF engine: Built on imported industrial-grade read/write module, fully supports EPC Gen2 / ISO 18000-6C tags.
Stable multi-tag reading: High recognition rate with excellent anti-miss and anti-false-read performance in dense tag environments.
Precision read zone control: Narrow horizontal beam antenna design ensures accurate coverage of access areas with no blind spots.
Integrated alarm system: Built-in alarm light and buzzer for real-time status indication and security alerts.
Flexible customization: Customizable front panel design and stylish industrial appearance for different project needs.
Wide application range: Ideal for logistics, warehouse management, asset tracking, anti-counterfeiting, and smart manufacturing.
Parameters
| Type | RF-UG-20 |
| Working frequency | 840-960Mhz |
| Material | Tempered glass panel, aluminum alloy body |
| Wireless protocol | ISO 18000-6C（Class 1 Gen 2） |
|
|
|
| Output power | 33dBm+1dB，Step 1dB |
| Network protocol | TCP/IP、DHCP |
| Communication protocol | RS-232、TCP/IP、HTTP、MQTT |
| Hardware interface | RJ45 |
| Power supply voltage | AC 220V±10％ |
| Tag cache | 10,000 tags @ 96-bit EPC |
| Tag reading rate | ＞900 tags/second |
| Operating Modes | Master-Slave Mode / Standalone Mode / Trigger Mode |
| Total unit power | 5W~24W |
| LED | Red/Green |
| System | Android/window |
| Development language | C#, Java, Android |
Installation type
| No-groove installation; includes stainless steel cable trunking. |
Working voltage
| AC220V±10％ |
| Working temperature | -10℃ -- +50℃ |
| Size | 585MM(L)*57MM（W)*2053MM(H)
|
Color
| white+grey |

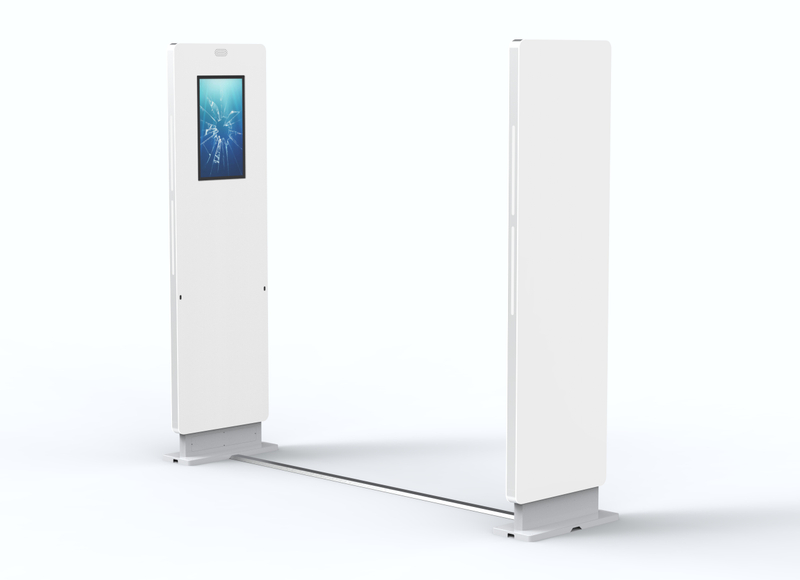

| Other option | with touch screen, 10.1”touchscreen, 1280*800 resolution |
Application
It can be widely applied in various RFID systems, such as those for logistics, access control, apparel, retail, warehousing, anti-counterfeiting, and smart manufacturing.
