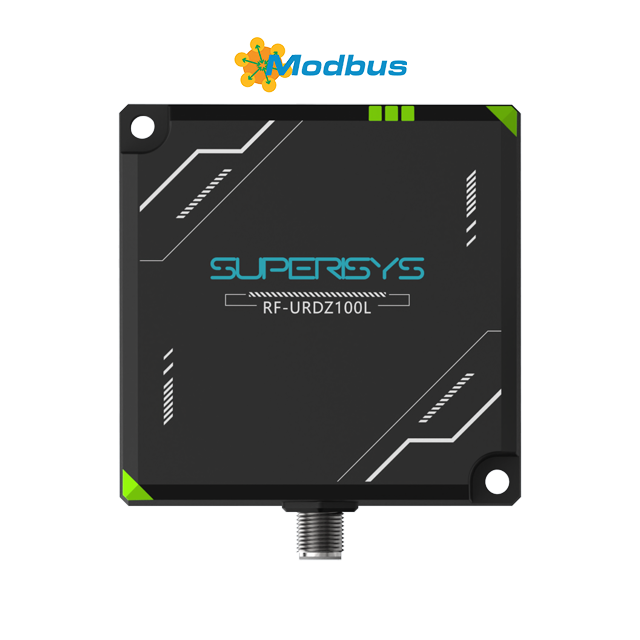

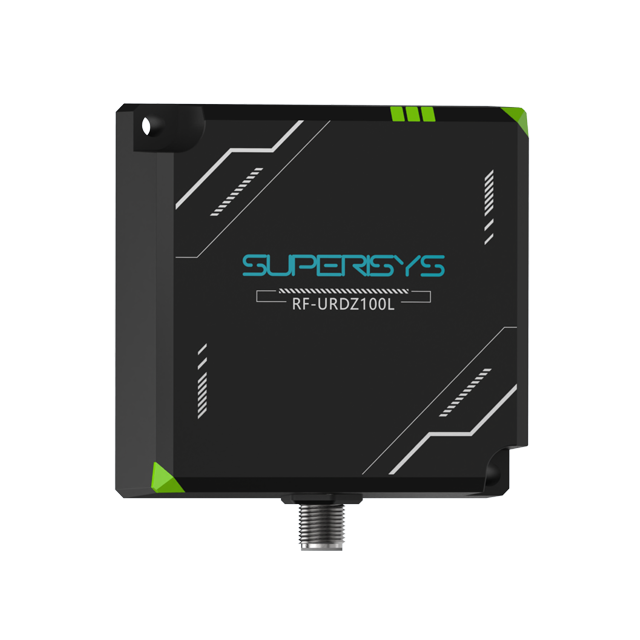

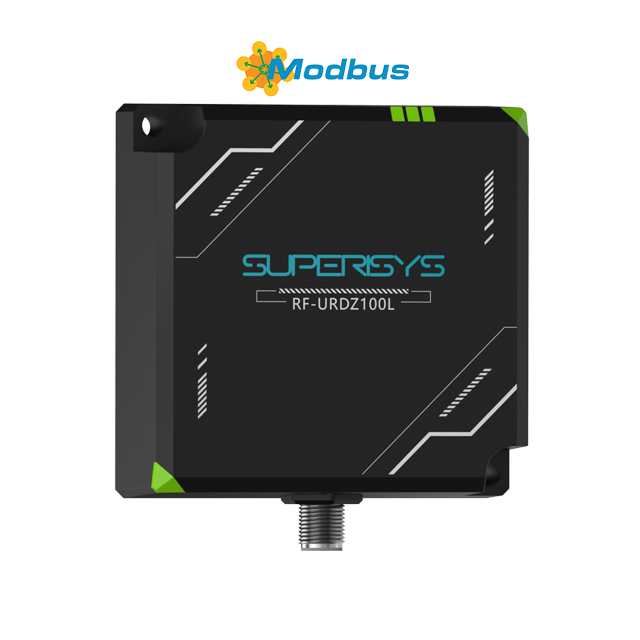

RF-URDZ100L-EU R4/TP
Superisys
| Availability: | |
|---|---|
| Quantity: | |

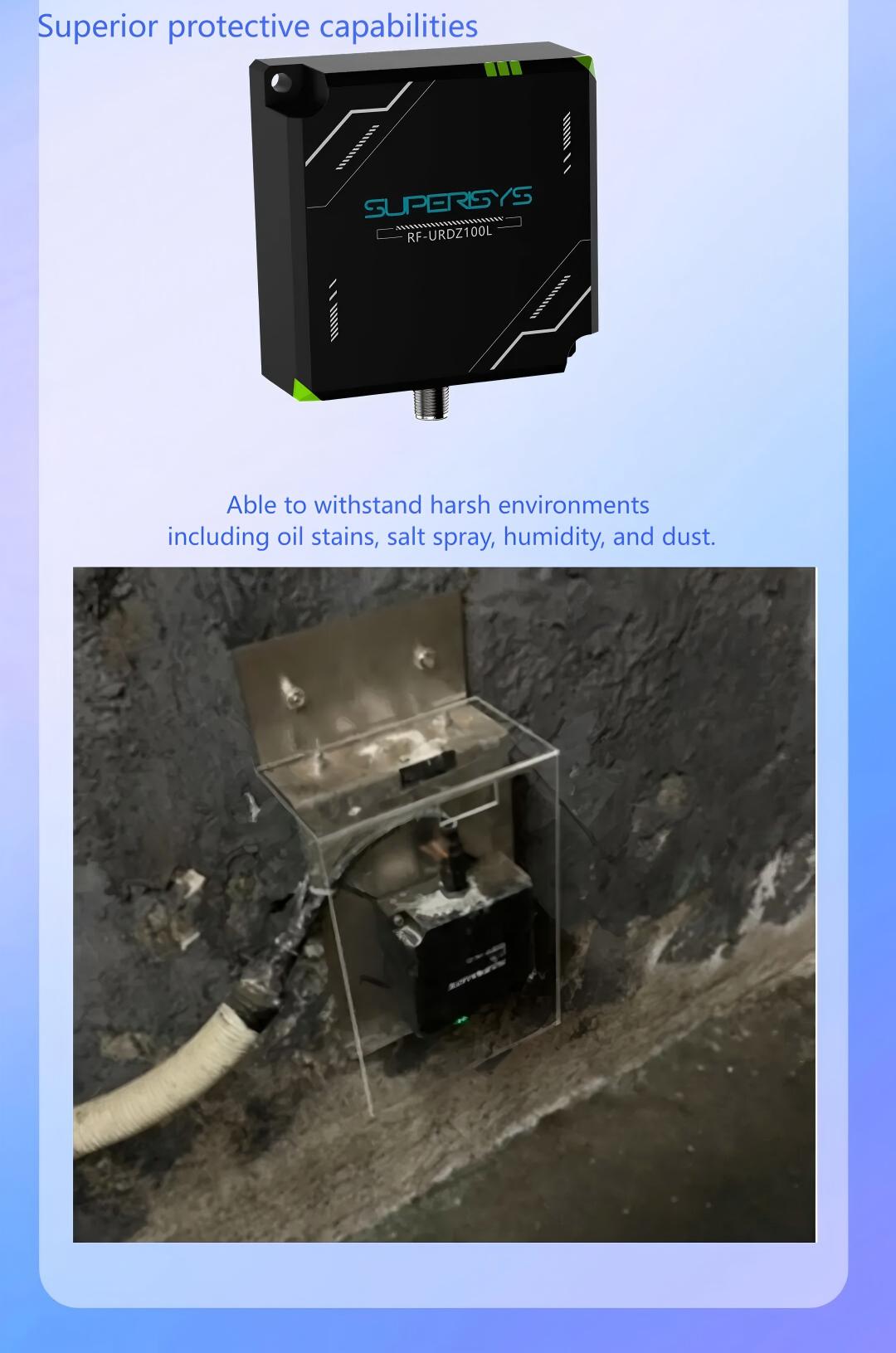

Harsh Environmental Adaptability: Equipped with high-level dustproof (IP65), waterproof, oil-proof, corrosion-resistant, and electromagnetic interference-resistant capabilities, it can operate stably in harsh workshop environments such as high and low temperatures, vibration, and dust.
Powerful Anti-interference and Multi-Tag Processing Capabilities: Utilizes advanced anti-collision algorithms, enabling accurate and orderly reading of each tag in complex electromagnetic environments and densely packed tag groups (such as entire pallets of goods).

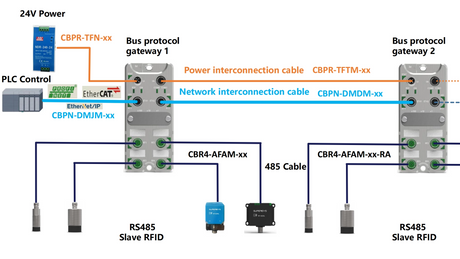

Multiple Interfaces and Protocols: Provides Industrial Ethernet Profinet and RS485, allowing seamless integration with PLC, SCADA, and other industrial control systems.
| Model | RF-URDZ100L-R4 | RF-URDZ100L-TP |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | |
| Working frequency | CN：920-925MHz（SRRC） | |

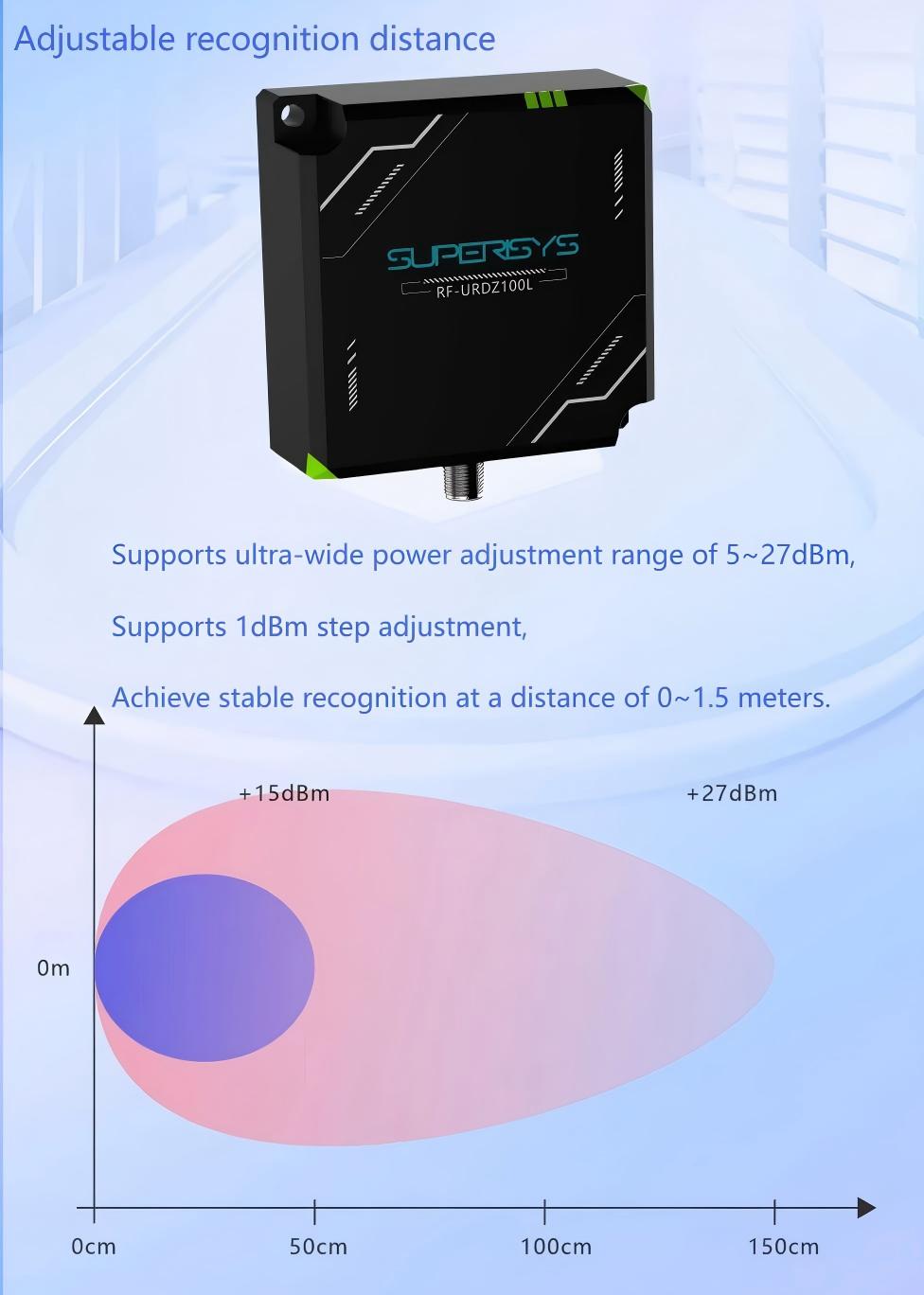

| Output power | 5-30dBm adjust(Stepping 1dbm) | |
| Communication interface | RS485*1 Ethernet | |
| Communication protocol | Modbus RTU | Modbus TCP |
| Communication rate | 9600-115200bit/s | 10/100M adaptive |
| mains input | 9-30V DC | |
| Average current | < 0.2A (24V DC) | |
| Indicator light | 5* LED Light | |
| Boundary dimension | 100*100*41.5mm | |
| Fixture type | 2Pcs*M5 screw hole | |
| Canning material | Base: Aluminum Alloy, Top: ABS | |
| Shell color | Black, Silver | |
| Operating temperature | -25 ~ 60℃ | |
| Storage temperature | -25 ~ 85℃ | |
| humidity | 5% ~ 95%RH(No condensation) | |
| Waterproof and dustproof grade | IP65,EN60529 | |
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | |
| Electrostatic discharge immunity ESD | IEC610000-4-2 | |
| Certificate | FCC , CE,SRRC,ROHS | |
Harsh Environmental Adaptability: Equipped with high-level dustproof (IP65), waterproof, oil-proof, corrosion-resistant, and electromagnetic interference-resistant capabilities, it can operate stably in harsh workshop environments such as high and low temperatures, vibration, and dust.
Powerful Anti-interference and Multi-Tag Processing Capabilities: Utilizes advanced anti-collision algorithms, enabling accurate and orderly reading of each tag in complex electromagnetic environments and densely packed tag groups (such as entire pallets of goods).
Multiple Interfaces and Protocols: Provides Industrial Ethernet Profinet and RS485, allowing seamless integration with PLC, SCADA, and other industrial control systems.
| Model | RF-URDZ100L-R4 | RF-URDZ100L-TP |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | |
| Working frequency | CN：920-925MHz（SRRC） | |
| Output power | 5-30dBm adjust(Stepping 1dbm) | |
| Communication interface | RS485*1 Ethernet | |
| Communication protocol | Modbus RTU | Modbus TCP |
| Communication rate | 9600-115200bit/s | 10/100M adaptive |
| mains input | 9-30V DC | |
| Average current | < 0.2A (24V DC) | |
| Indicator light | 5* LED Light | |
| Boundary dimension | 100*100*41.5mm | |
| Fixture type | 2Pcs*M5 screw hole | |
| Canning material | Base: Aluminum Alloy, Top: ABS | |
| Shell color | Black, Silver | |
| Operating temperature | -25 ~ 60℃ | |
| Storage temperature | -25 ~ 85℃ | |
| humidity | 5% ~ 95%RH(No condensation) | |
| Waterproof and dustproof grade | IP65,EN60529 | |
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | |
| Electrostatic discharge immunity ESD | IEC610000-4-2 | |
| Certificate | FCC , CE,SRRC,ROHS | |

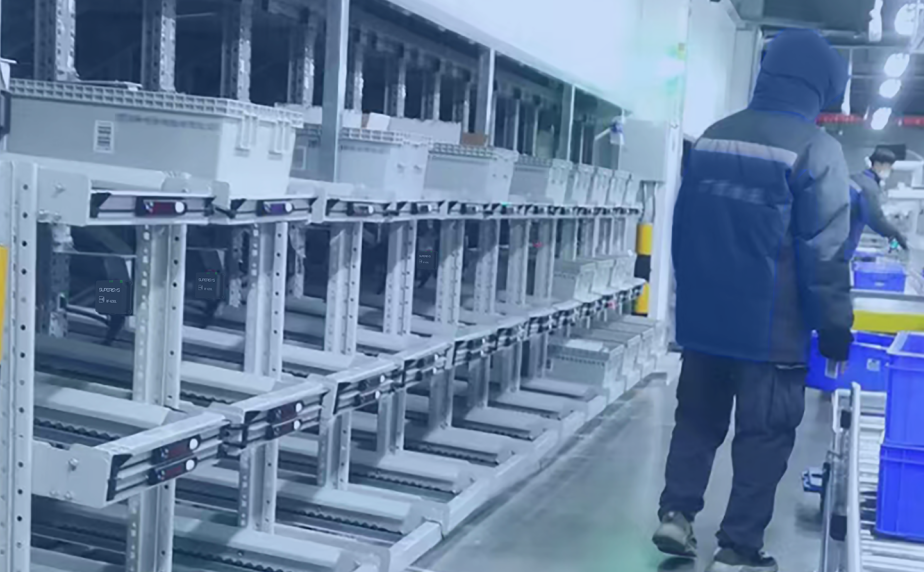

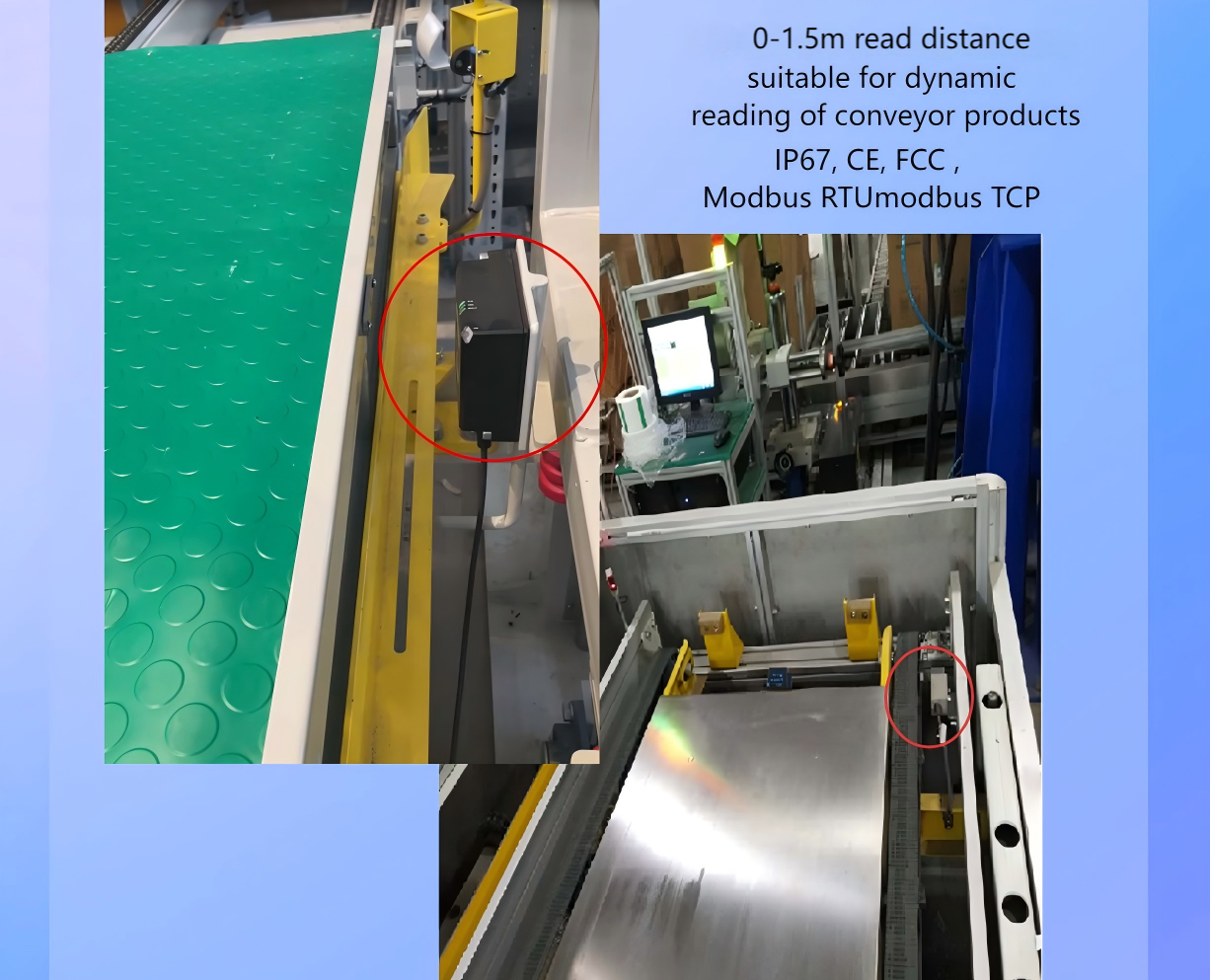

Conveyor automation
High-speed sorting line: A reader is installed above the sorting line to automatically identify the direction of the package flow and direct the sorting mechanism to operate, greatly improving sorting efficiency and accuracy.
Logistics sorting
Install readers at intersections or workstations to automatically identify AGVs and their cargo, enabling intelligent scheduling and route optimization.

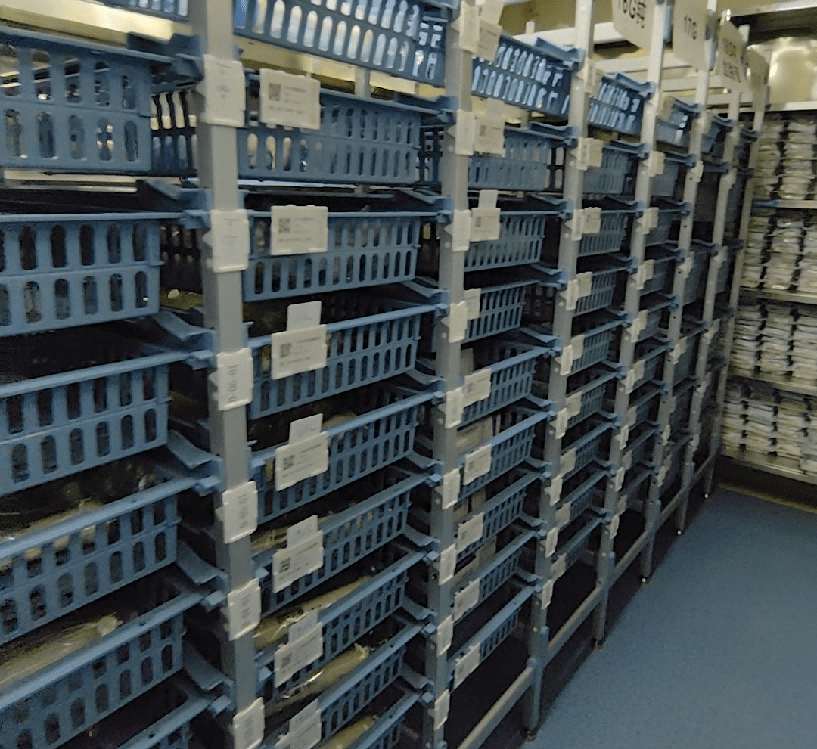

Warehousing management
Install readers on the shelves to monitor the inventory status of the storage locations in real time and achieve dynamic storage location management.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Conveyor automation
High-speed sorting line: A reader is installed above the sorting line to automatically identify the direction of the package flow and direct the sorting mechanism to operate, greatly improving sorting efficiency and accuracy.
Logistics sorting
Install readers at intersections or workstations to automatically identify AGVs and their cargo, enabling intelligent scheduling and route optimization.
Warehousing management
Install readers on the shelves to monitor the inventory status of the storage locations in real time and achieve dynamic storage location management.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
