RF-URDZ215L-PN/EIP/ECT
Superisys
| Availability: | |
|---|---|
| Quantity: | |

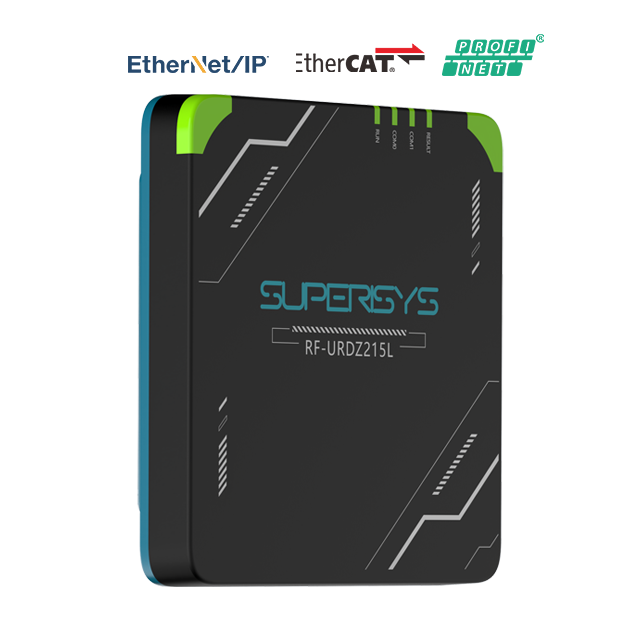

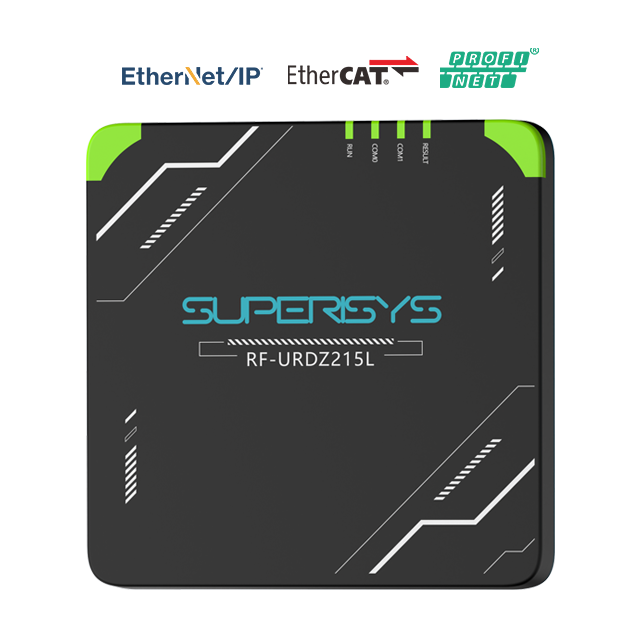

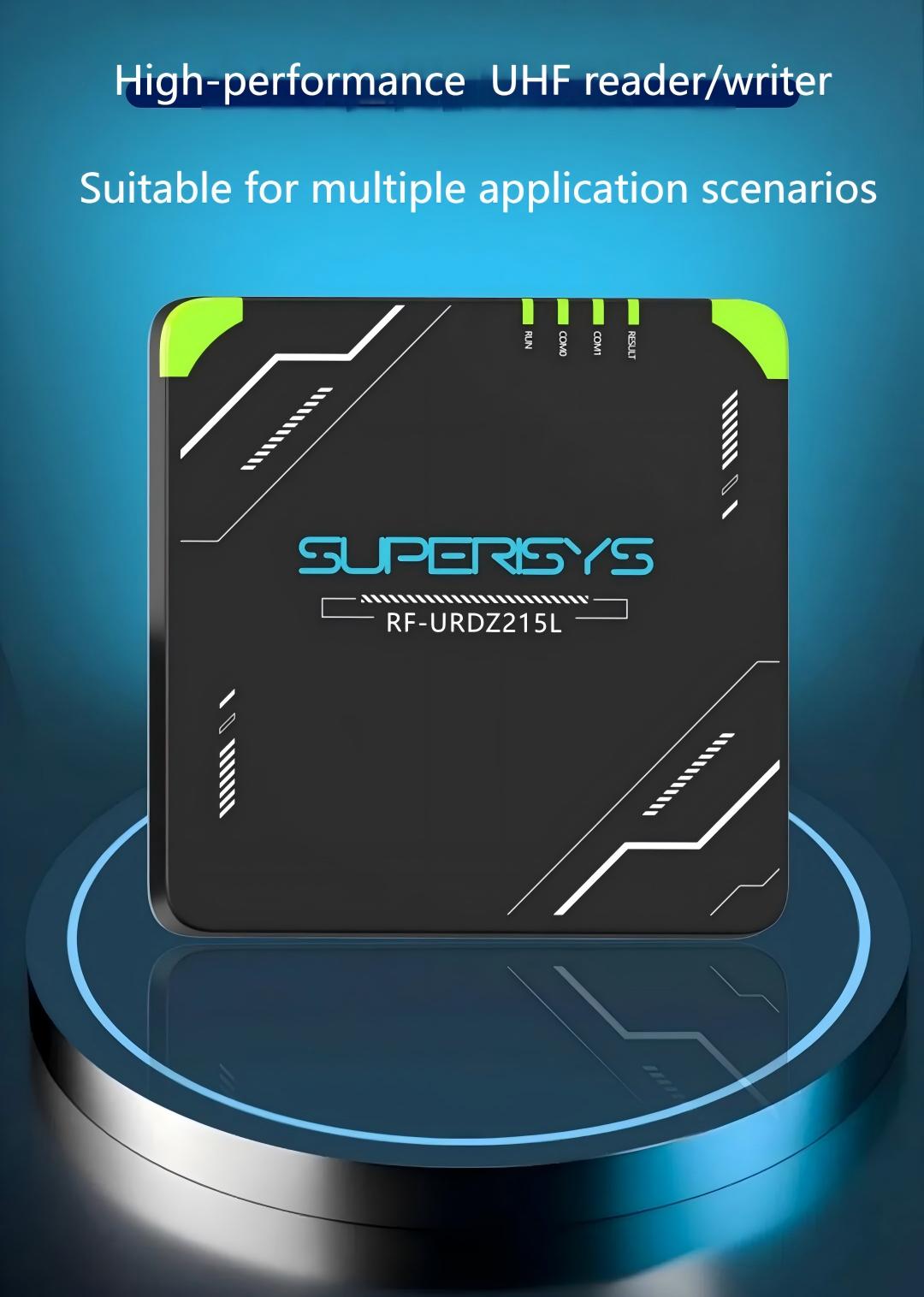

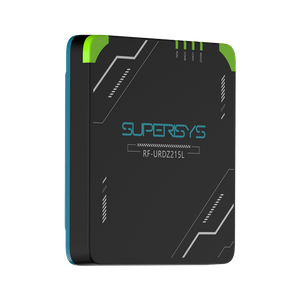

RF-URDZ215L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management
Technical Parameters
| Model | RF-URDZ215L-PN | RF-URDZ215L-EIP | RF-URDZ215L-ECT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | ||
| Working frequency | CN：920-925MHz（SRRC） | ||
| Output power | 5-30dBm adjust(Stepping 1dbm) | ||

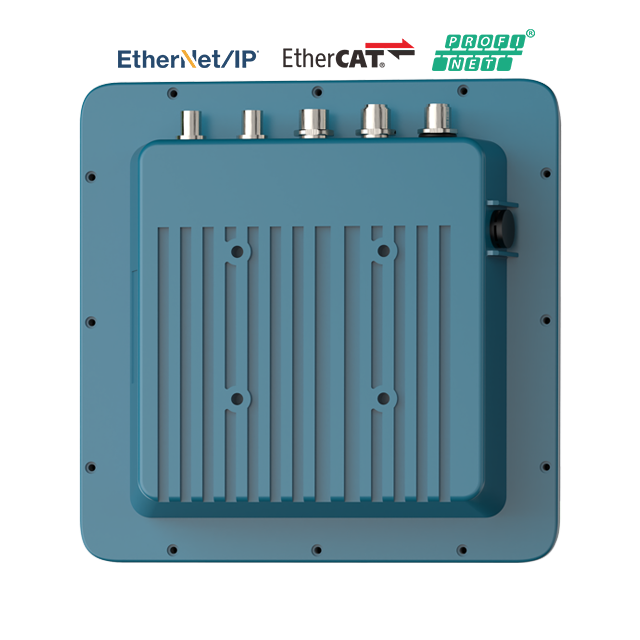

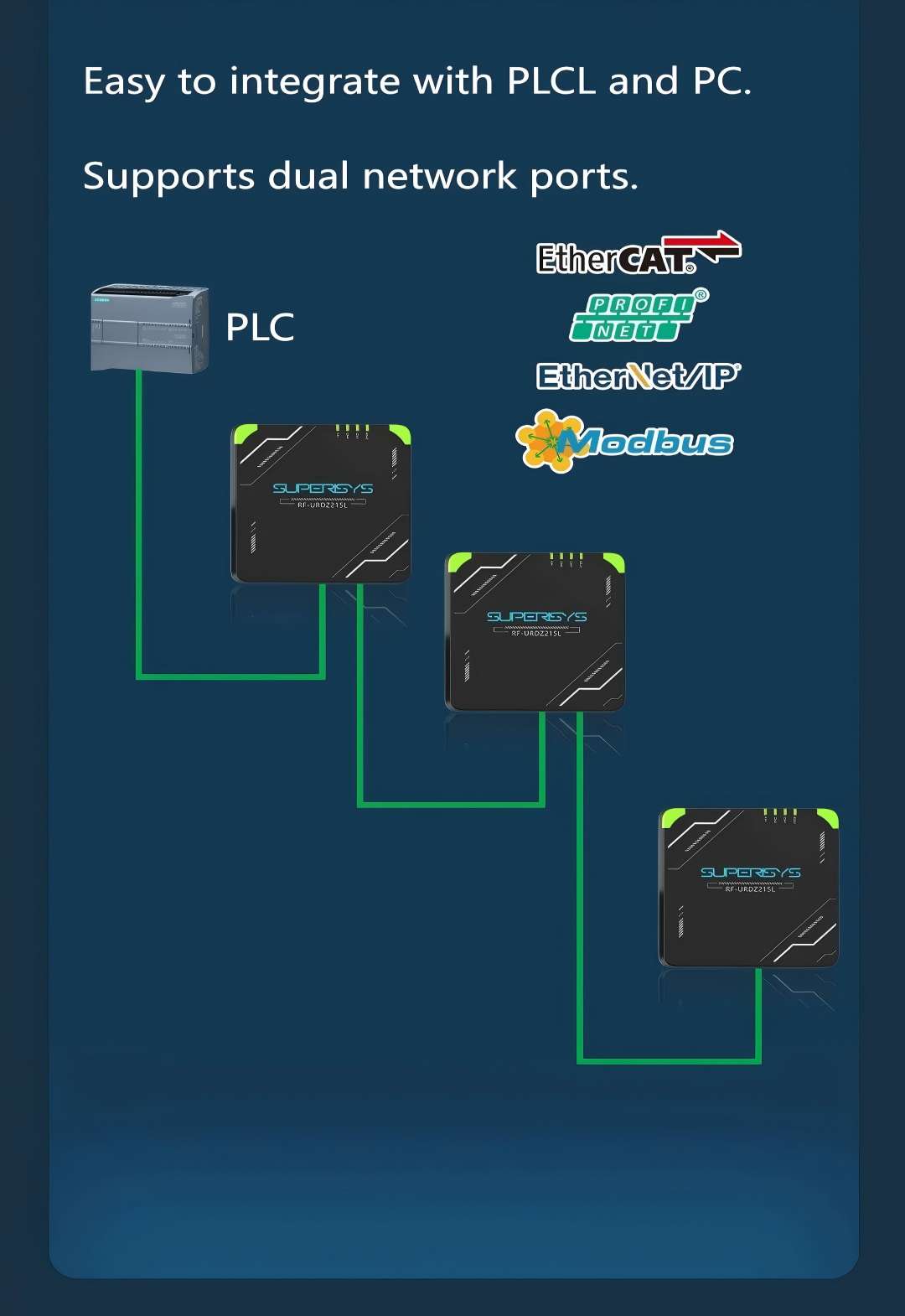

| Communication interface | RS485*1 Ethernet*2 | ||
| Communication protocol | ProfiNet | Ethernet/IP | EtherCAT |
| Communication rate | 10/100M adaptive | ||
| mains input | 9-30V DC | ||
| Average current | < 0.5A (24V DC) | ||
| Indicator light | 6* LED Light | ||
| Boundary dimension | 215*215*58mm | ||
| Fixture type | 4pcs*M6 screw hole | ||
| Canning material | Base: Aluminum Alloy, Top: PC +ABS | ||
| Shell color | Black | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | IEC610000-4-2 | ||
| Certificate | FCC , CE,SRRC,ROHS | ||
RF-URDZ215L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management
Technical Parameters
| Model | RF-URDZ215L-PN | RF-URDZ215L-EIP | RF-URDZ215L-ECT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | ||
| Working frequency | CN：920-925MHz（SRRC） | ||
| Output power | 5-30dBm adjust(Stepping 1dbm) | ||
| Communication interface | RS485*1 Ethernet*2 | ||
| Communication protocol | ProfiNet | Ethernet/IP | EtherCAT |
| Communication rate | 10/100M adaptive | ||
| mains input | 9-30V DC | ||
| Average current | < 0.5A (24V DC) | ||
| Indicator light | 6* LED Light | ||
| Boundary dimension | 215*215*58mm | ||
| Fixture type | 4pcs*M6 screw hole | ||
| Canning material | Base: Aluminum Alloy, Top: PC +ABS | ||
| Shell color | Black | ||
| Operating temperature | -25 ~ 70℃ | ||
| Storage temperature | -40 ~ 85℃ | ||
| humidity | 5% ~ 95%RH(No condensation) | ||
| Waterproof and dustproof grade | IP65,EN60529 | ||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||
| Electrostatic discharge immunity ESD | IEC610000-4-2 | ||
| Certificate | FCC , CE,SRRC,ROHS | ||

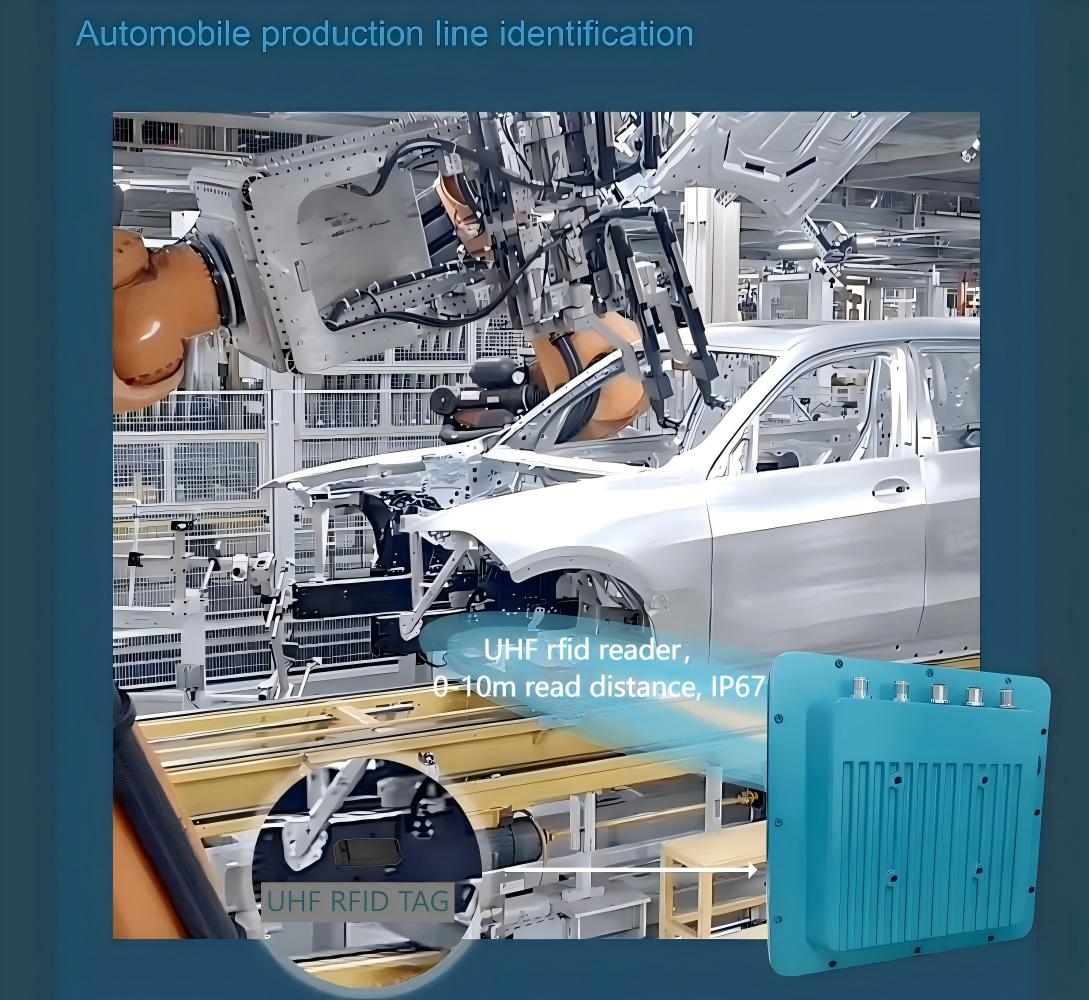

Automobile automation
Vehicle Body Identification and End-to-End Traceability
Application Points: At the paint shop's off-line point or the final assembly line's on-line point.
How it Works: When a body-in-white enters the final assembly line, a reader installed at that station automatically reads the RFID tag attached to the vehicle. This tag is linked to the vehicle's unique production order number and contains all customized information (VIN code, model, configuration code, etc.). From this point, the vehicle's "digital twin" journey on the final assembly line officially begins.
Logistics sorting ：
Application Points: Receiving platforms, inbound/outbound access gates, and electric forklifts/AGVs.
How it Works:

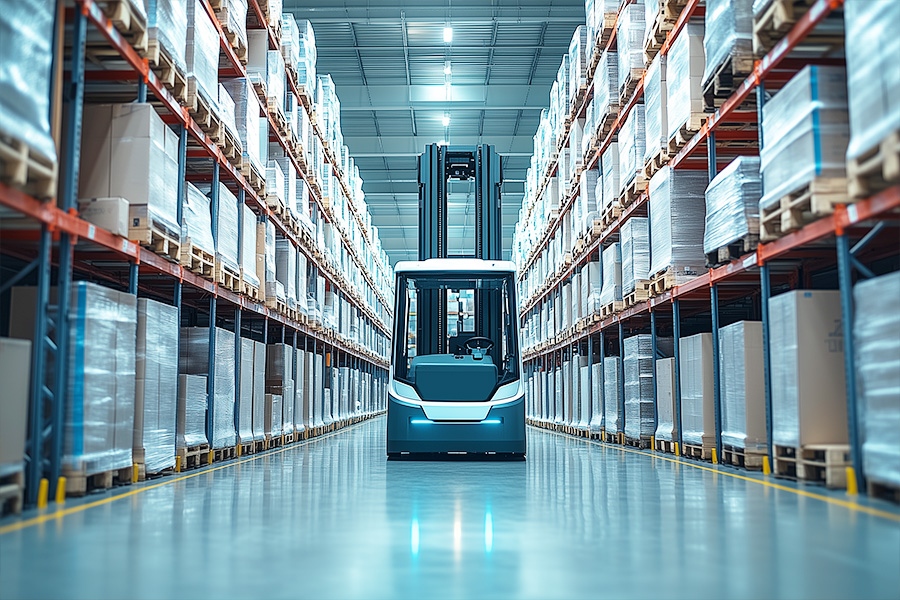

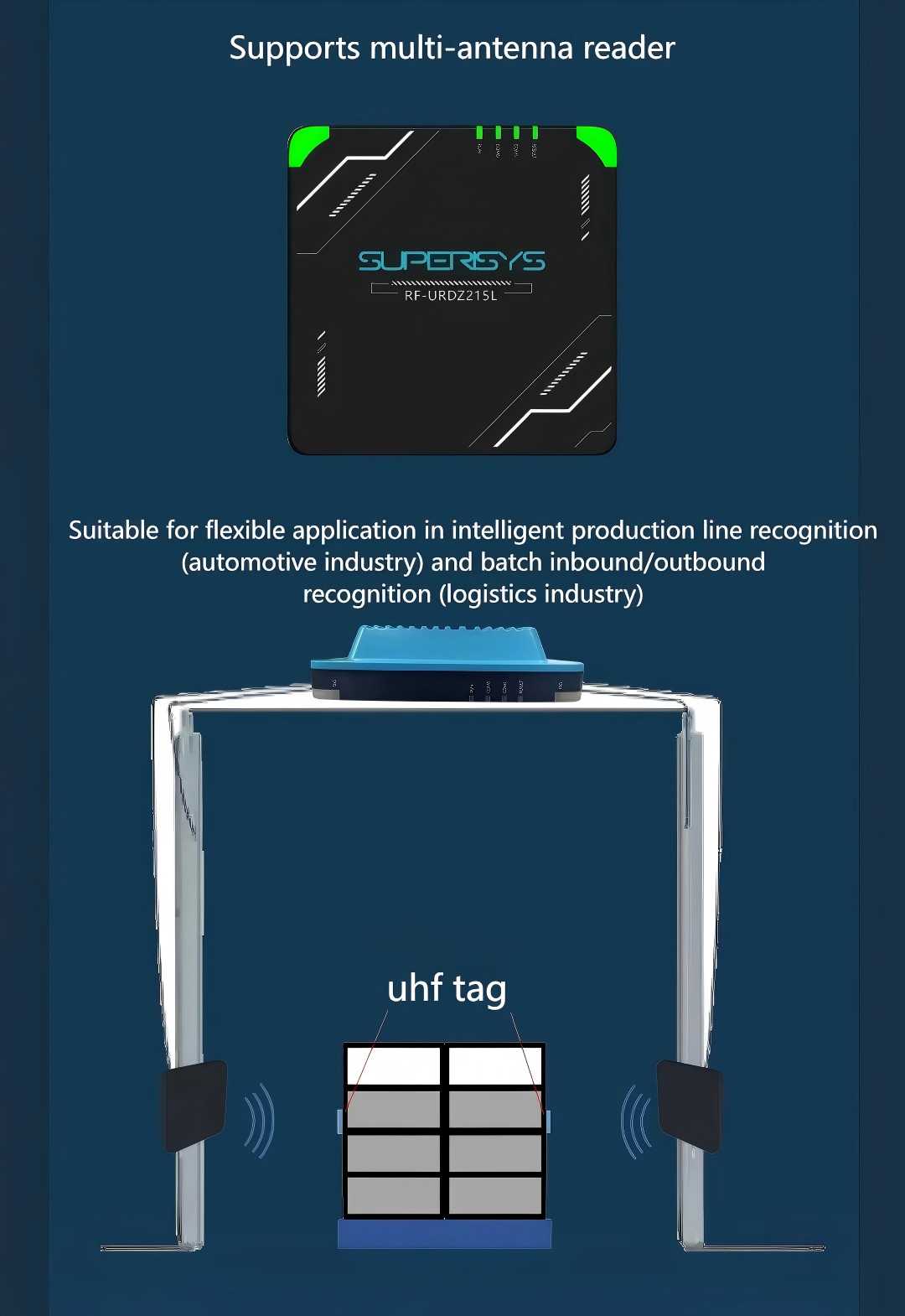

Inbound: Palletized goods (each pallet/box is labeled) delivered by suppliers are transported into the warehouse by forklifts. As the forklift passes through the "RFID gate channel" equipped with readers and antennas, all goods information is read in batches within seconds without stopping, and automatically reconciled with pre-orders, completing second-level receiving and system posting. The IP67 rating ensures stable operation of the gate outdoors or on damp platforms.
Outbound: Similarly, at the shipping platform channel, loaded pallets or boxes are automatically scanned upon shipment, generating an accurate shipping manifest. Simultaneously, the system inventory is automatically deducted, achieving real-time consistency between inventory and records.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
