Features

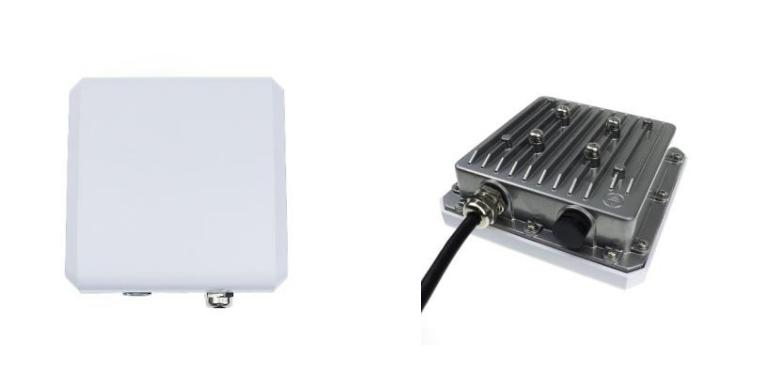

The integrated reader rf-urdz258L powered by E310, it's a UHF RFID reader designed by the integration of antenna and reader. It supports ISO18000-6C protocol, with an adjustable output power of 5dbm to 30dbm. The reader is exquisite and compact, with long reading distance. It supports a variety of communication interfaces, with excellent protection performance and convenient installation and use.
Parameters
Radome material
| Type | RF-URDZ258L |
| Working frequency | EU: 865 ~ 868MHz (ETSI) NA: 902 ~ 928MHz FCC (NA, SA) CN: 920 ~ 925MHz (CMIIT) Open:860 ~ 960MHz（OPEN） |
| Wireless protocol | ISO 18000-6C（Class 1 Gen 2） |
|
|
|
| Chip | IMPINJ E310 |
| Output power | 0-30dBm+1dB，Step 1dB |
| Communicatjion interface | Default：10/100 Base-T Ethernet，Supports both TCP Client and TCP Server modes.， RS232 |
| Communication interface (optional) | RS485 Wiegand USB |
| Sensitivity | -73dBm@10%BER |
| Read distance | 0-8m （depend on the tag） |
| Tag Cache | 1000 pcs @96 bit EPC |
| Inventory Peak Speed | >350 tags/s |
| Half-power(°) | Hor:106/ Ver:106 |
Polarization
| Circular polarization |
| Axial ratio(dB) | ≤2 |
| Power supply voltage | DC power supply, 12V 2A power adapter |
| Max.Power consumption | 6.75W（peak） |
| Standby consumption | 1.76W |
| IP | IP67 |
| Tag reading rate | 1000 pcs @96 bit EPC |
| GPIO | 1-channel input, 1-channel output (relay) |
| RSSI、Temp Detect | Support |
| Inventory Peak Speed | >350 tags/s
|
| Radome material | PC+ABS/ADC12 Aluminum allo |
Antenna material
| F4B High-frequency board / Nickel- plated copper |
Size
| 133mm x 133mm x 52mm |
Weight
| 760g |
| Working temperature | -20-65℃
|
| Storage temperature | -40-85℃ |
| Humidity | 5%-95% RHnon- condensing (+25°C) |
API
| C, C#/.NET, Java |
