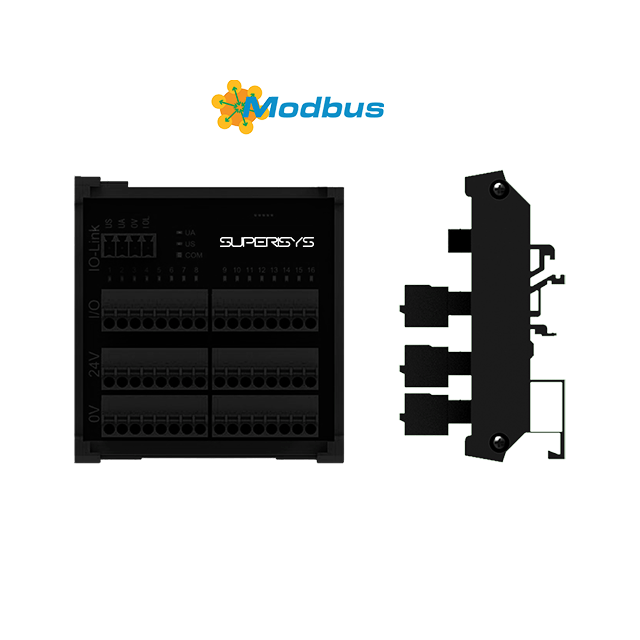

Features
Location: It must be installed in a dry, dust-free electrical control cabinet free from liquid splashes. This is a crucial prerequisite for its "economic efficiency," as it eliminates the need for an expensive sealed enclosure.
Cost-optimized design: Uses standard components, simplifies circuitry, and eliminates redundant functions.
Compact structure: Employs an ultra-thin design, occupying minimal width (as low as 16mm) on standard DIN rails, maximizing cabinet space utilization.
Simplified diagnostics: Typically provides module-level diagnostics (such as power failures) and channel group diagnostics, rather than separate, expensive diagnostics for each channel, reducing costs.
Passive backplane bus: Serves as an expansion module for large PLC systems (such as Siemens S7-1200/1500, Mitsubishi FX5U, Omron CJ2) or distributed I/O stations (such as Siemens ET 200SP, Rockwell Point I/O), obtaining power and communication via a backplane bus, eliminating the need for separate power and network interface configurations.
Technical Spec.
| Shell material | PA66 |
| Shell color | Green |
| level of protection | IP20 |
| Boundary dimension | 86.5mm x 82mm x48mm |
| Weight | 137g |
| Operating temperature | -25℃…70℃ |
| Storage/transport temperature | -40℃…85℃ |
| Operation humidity | 5%…95% |
| I/O port tightening torque | M12:0.5Nm |
| Authentication | CE,RoHS |
