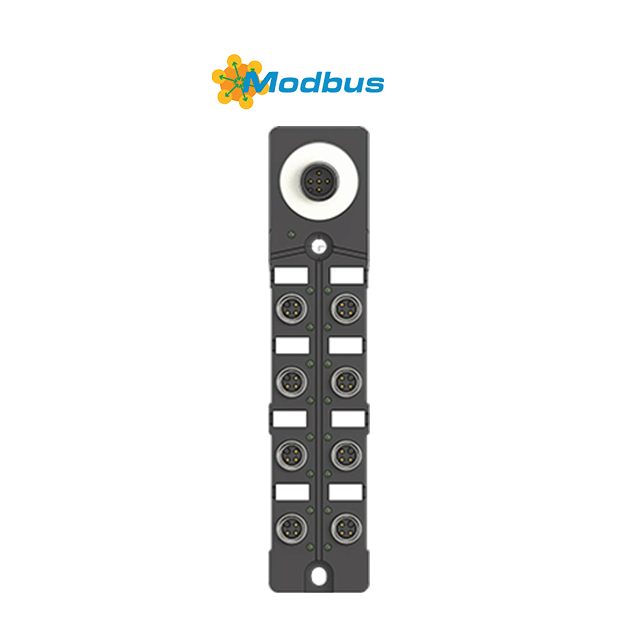

Digital 8 Channel M8 Series Input Output IO-Link Slave Module

Product Features

• 8-channel digital I/O

Configurable as PNP/NPN inputs or outputs, enabling flexible connectivity to sensors, valves, and relays.

• M8 connector standard

Rugged M8 ports ensure vibration-resistant connections, reducing downtime in high-motion industrial settings.

• Plug-and-Play Integration

Automatic detection of IO-LINK controllers eliminates manual addressing, speeding deployment.

• Industrial Durability

IP67-rated aluminum housing resists dust, moisture, and chemical splashes.

  Patameters

IO-LINK	Polarity	Model
Class A	PNP	IACM-DI8P-IOL-M8	IACM-DI8N-IOL-M8	IACM-DIO8P-IOL-M8
	NPN	IACM-DO8P-IOL-M8	IACM-DO8N-IOL-M8	IACM-DIO8N-IOL-M8
Product description	IO-LINK slave module, 8 x port
IO-LINK slave module 8x port IP67 protection class	M8,3pin hole holder, A code
IO-Link slave parameters
Number of IO-Link ports	1x Device
lO-Link deals with data length	Two input bytes		Two output bytes	Two input bytes
				Two output bytes
Minimum cycle period	3 ms
Digital input and output parameters
Number of inputs and outputs	8 inputs		8 Outputs	8 Way adaptive
Rated operational voltage	18…30V DC
Maximum load current (sensor)	200 mA		—	200 mA
Maximum load current (actuator)	--		500 mA	500 mA
Total current UI	<1.6A		—	<1.6A
Total current UO	—		<2.5A	<2.5A
Module indicator light
IO-LINK RUN	Green: communication is not connected
	Green flash: communication is normal
	Red: communication interruption
I/o	Green: the channel signal is normal
	Red: port failure
Basic parameter		Shell material		PA6+GF
		Shell color		Black
		level of protection		IP67, epoxy full potting
		Boundary dimension		155mm×53mm×28.7mm
		Weight		227g
		Operating temperature		-25℃…70℃
		Storage/transport temperature		-40℃…85℃
		Operation humidity		5%…95%
		Store/transport humidity		5%95%
		Operating atmospheric pressure		80KPa…106KPa
		Store/transport atmospheric pressure		80KPa…106KPa
		IVO mouth tightening torque		M12:0.5Nm
		Application environment		In accordance with EN-61131
		Vibration measurement		Comply with IEC60068-2
		Impact test		Comply with IEC60068-27
		Free drop test		Comply with IEC60068-32
		Electromagnetic Compatibility (EMC)		Comply With IEC61000-4-2,-3,-4
		Authentication		CE,RoHS
		Mounting hole Specification		Ø4.3mm×4
Pin definition
