RF-URDZ100L-R4/TP
Superisys
| Availability: | |
|---|---|

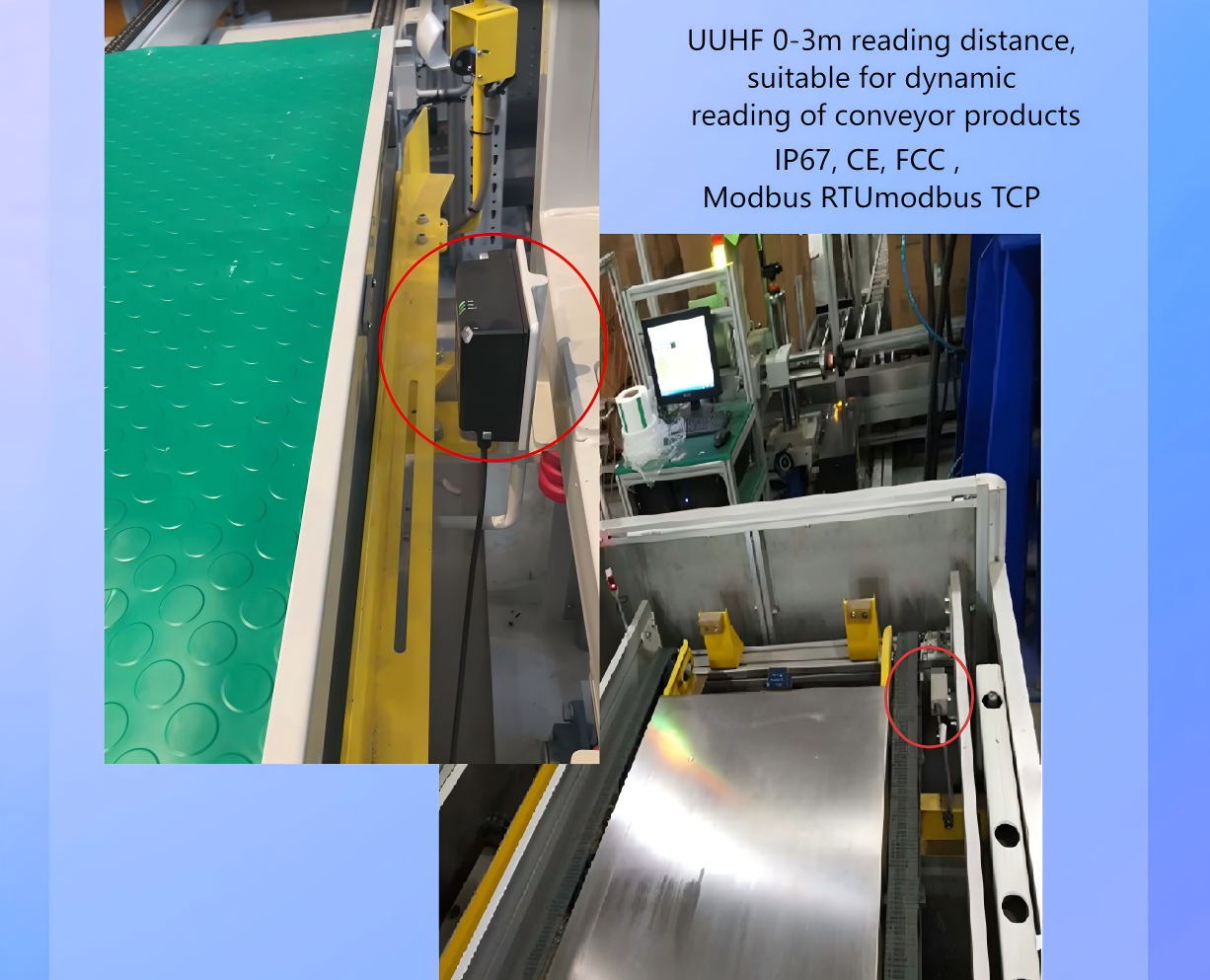

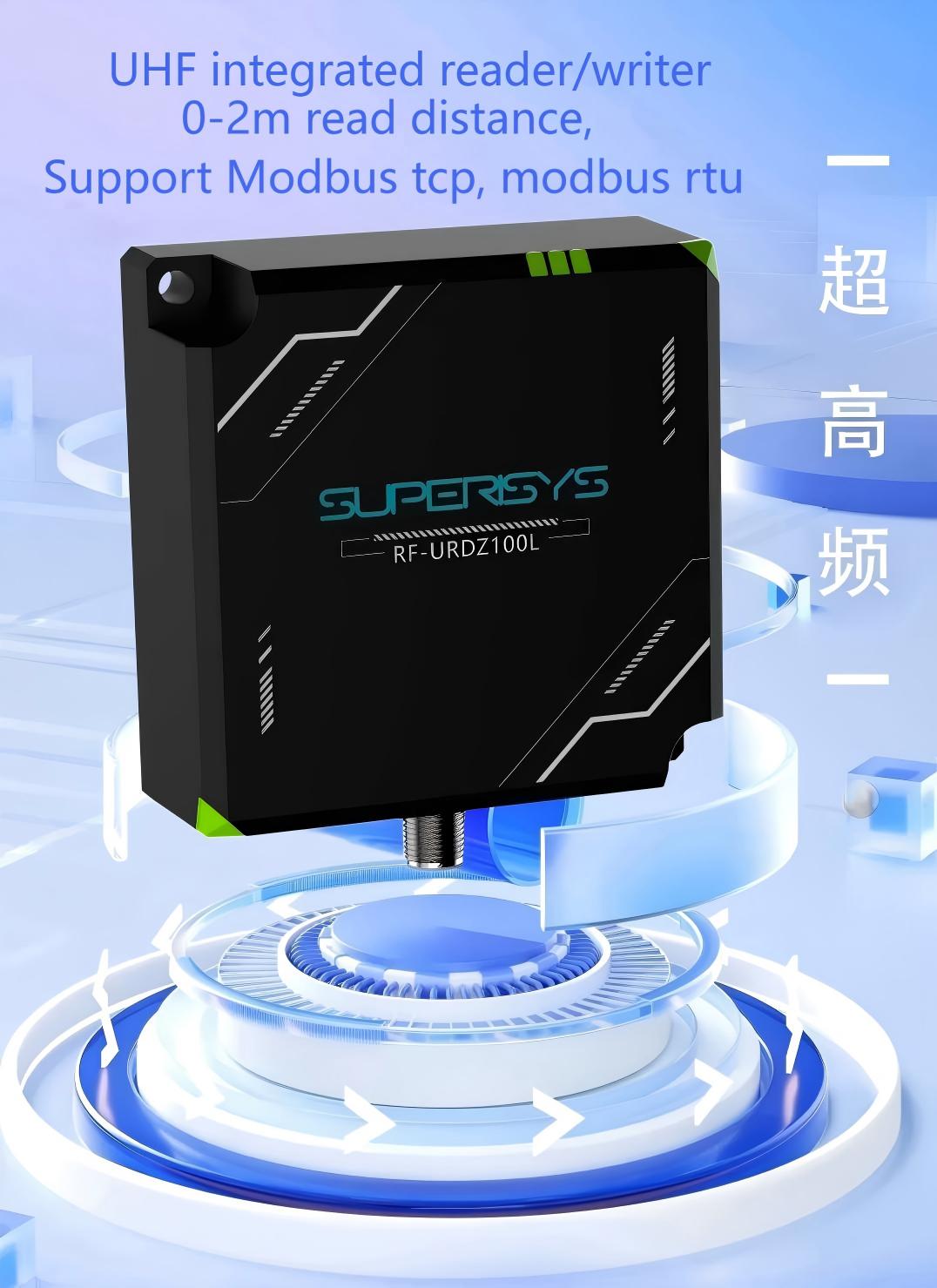

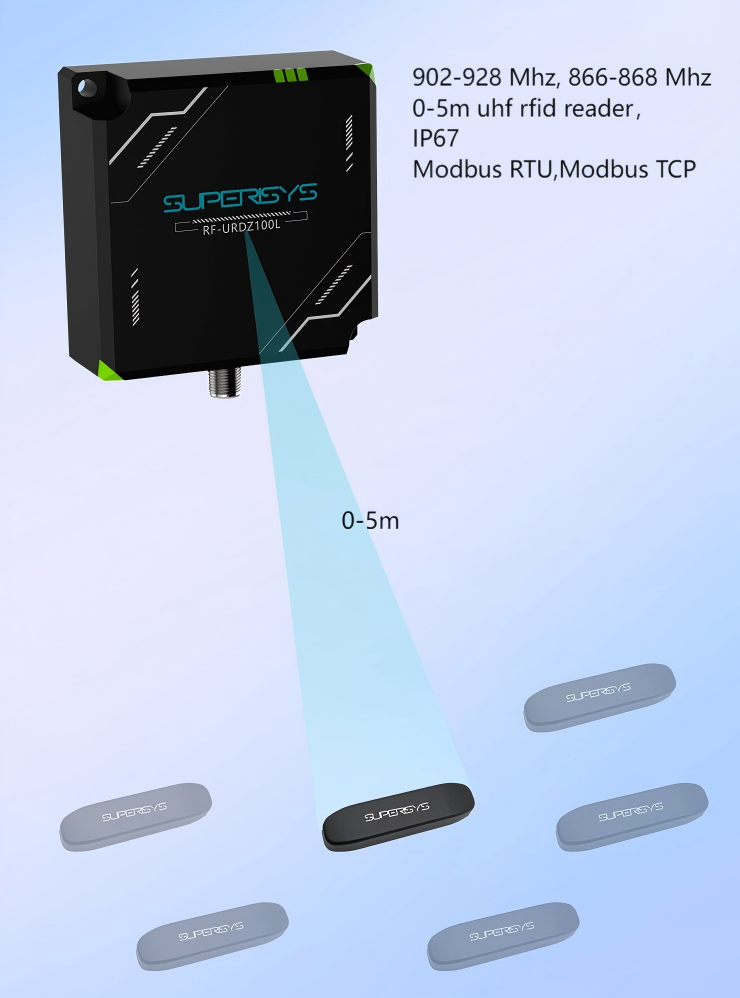

RF-URDZ100L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management
| Model | RF-URDZ100L-R4 | RF-URDZ100L-TP |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | |
| Working frequency | CN：920-925MHz（SRRC） | |

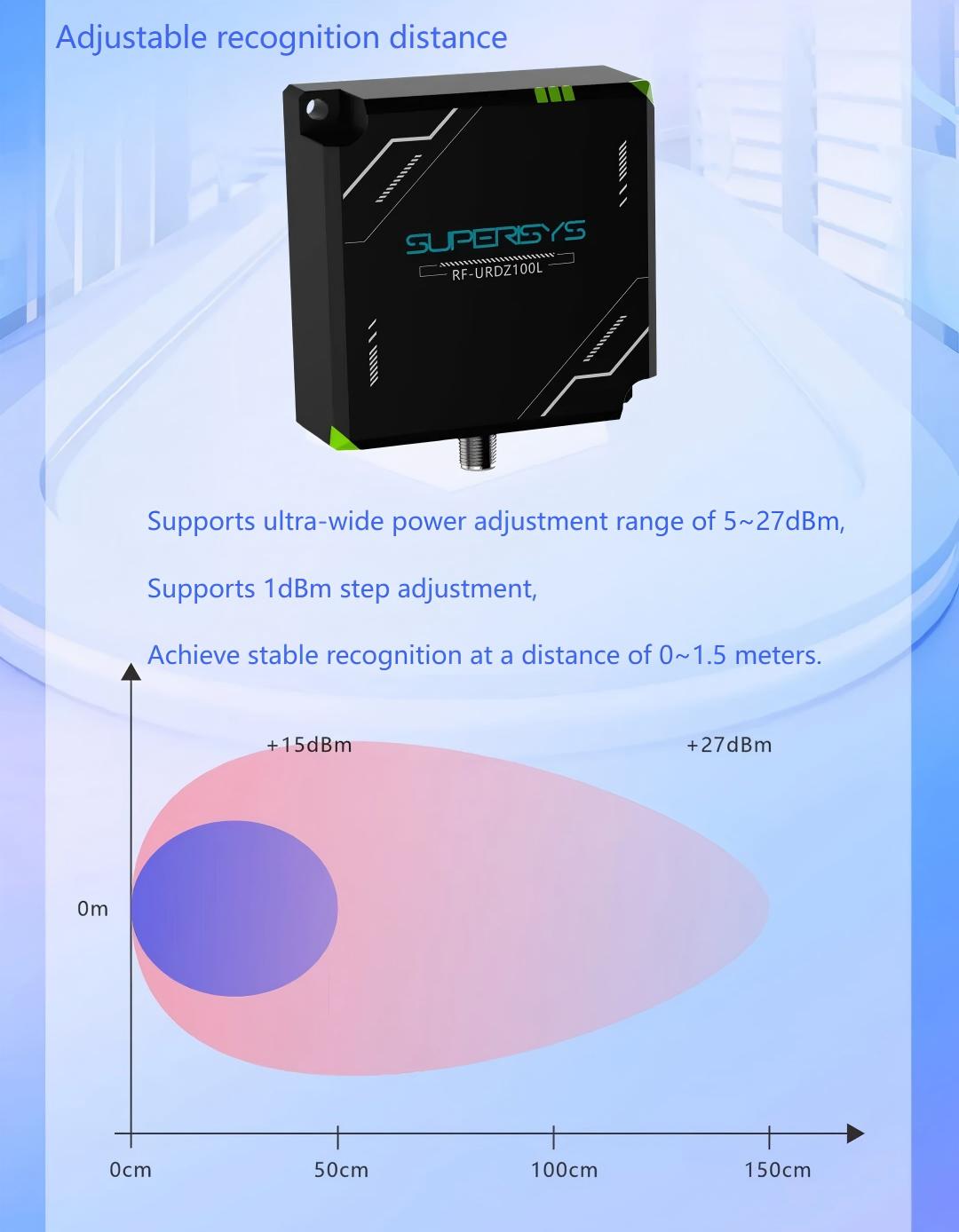

| Output power | 5-30dBm adjust(Stepping 1dbm) | |
| Communication interface | RS485*1 Ethernet | |
| Communication protocol | Modbus RTU | Modbus TCP |
| Communication rate | 9600-115200bit/s | 10/100M adaptive |
| mains input | 9-30V DC | |
| Average current | < 0.2A (24V DC) | |
| Indicator light | 5* LED Light | |
| Boundary dimension | 100*100*41.5mm | |
| Fixture type | 2Pcs*M5 screw hole | |
| Canning material | Base: Aluminum Alloy, Top: ABS | |
| Shell color | Black | |
| Operating temperature | -25 ~ 60℃ | |
| Storage temperature | -25 ~ 85℃ | |
| humidity | 5% ~ 95%RH(No condensation) | |

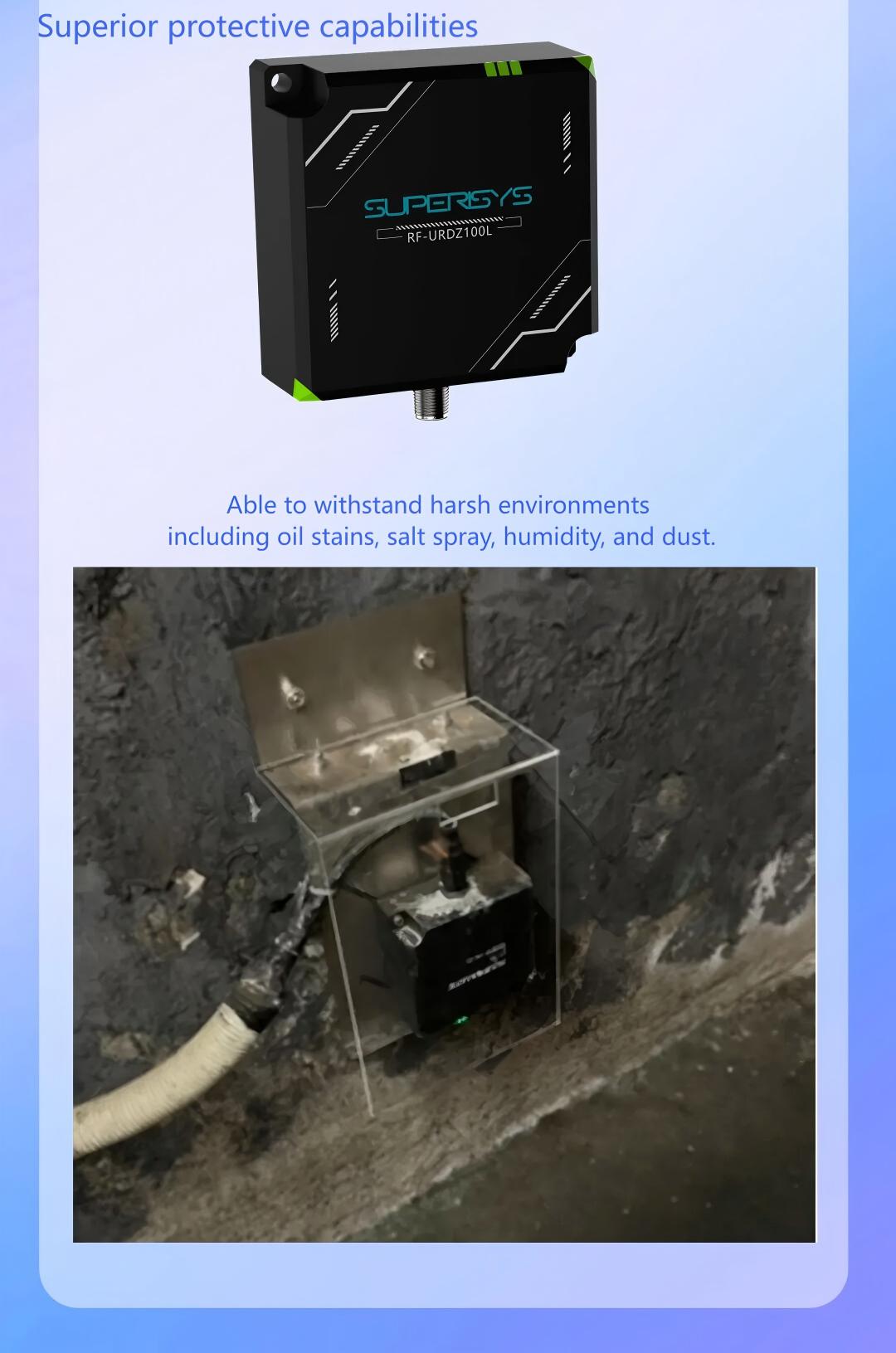

| Waterproof and dustproof grade | IP65,EN60529 | |
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | |
| Electrostatic discharge immunity ESD | IEC610000-4-2 | |
| Certificate | FCC , CE,SRRC,ROHS | |
RF-URDZ100L UHF RFID Reader Suitable for Automobile automation, Logistics sorting and warehousing management
| Model | RF-URDZ100L-R4 | RF-URDZ100L-TP |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | |
| Working frequency | CN：920-925MHz（SRRC） | |
| Output power | 5-30dBm adjust(Stepping 1dbm) | |
| Communication interface | RS485*1 Ethernet | |
| Communication protocol | Modbus RTU | Modbus TCP |
| Communication rate | 9600-115200bit/s | 10/100M adaptive |
| mains input | 9-30V DC | |
| Average current | < 0.2A (24V DC) | |
| Indicator light | 5* LED Light | |
| Boundary dimension | 100*100*41.5mm | |
| Fixture type | 2Pcs*M5 screw hole | |
| Canning material | Base: Aluminum Alloy, Top: ABS | |
| Shell color | Black | |
| Operating temperature | -25 ~ 60℃ | |
| Storage temperature | -25 ~ 85℃ | |
| humidity | 5% ~ 95%RH(No condensation) | |
| Waterproof and dustproof grade | IP65,EN60529 | |
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | |
| Electrostatic discharge immunity ESD | IEC610000-4-2 | |
| Certificate | FCC , CE,SRRC,ROHS | |
Flexible production line

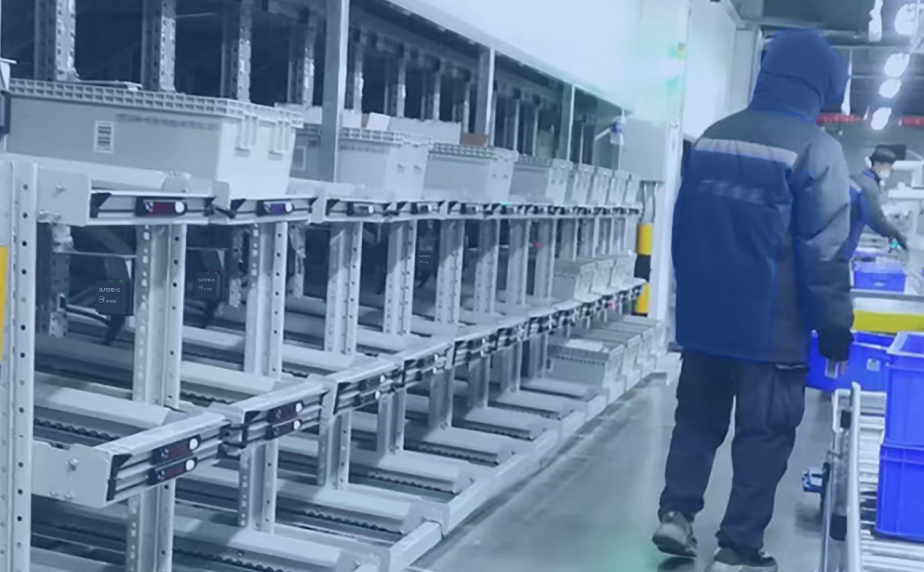

Warehouse Management
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Flexible production line
Warehouse Management
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
