| Quantity: | |
|---|---|
Product Features

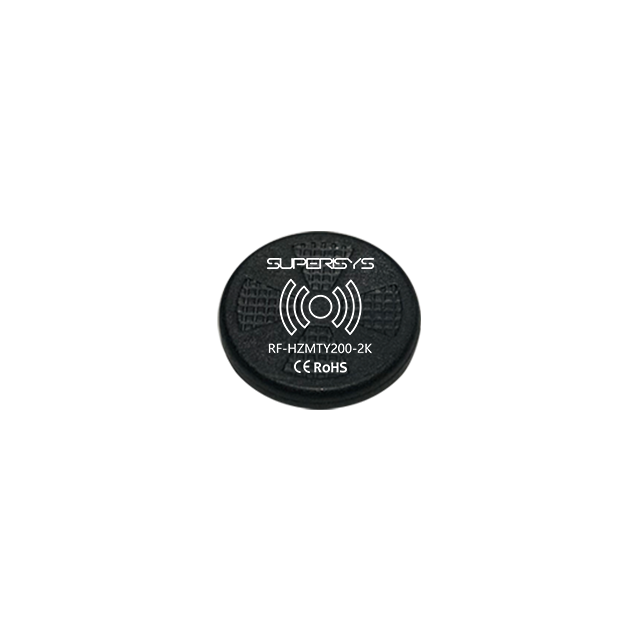

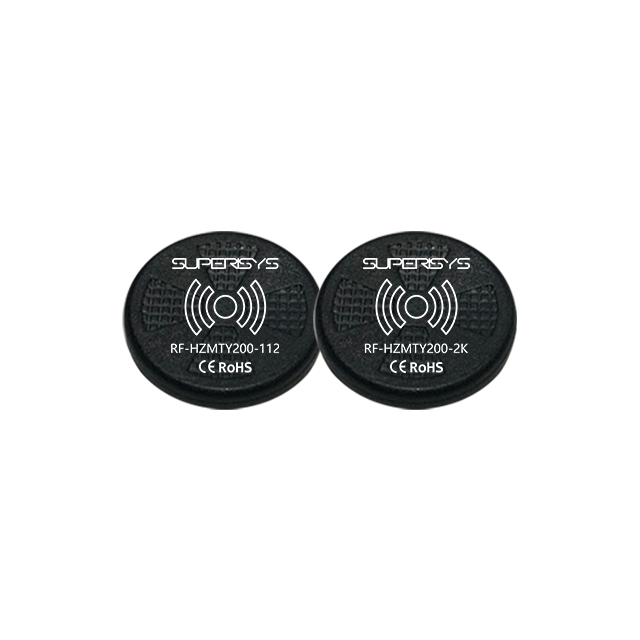

This Φ20mm IP67 high-frequency RFID tag is a rugged, durable, dustproof, and waterproof industrial identification solution. Despite its compact size, it can operate reliably in most harsh conditions, making it a reliable choice for achieving asset digitization and process transparency.
| product model | RF-HZMTY200-112 | RF-HZMTY200-2K |
| working frequency | 13.56MHz | |
| Air port agreement | ISO 15693 | |
| Read distance | 0-50mm(Related to read head) | |
| User memory | 112 Bytes | 2000 Bytes |
| Memory type | EEPROM | FRAM |
| Rewrite cycle | 100,000 times | 10 Billion times |
| Data storage time | 10 years | 10 years |
| size | φ20*3mm | |
| Housing material | PPS | |
| Fixed mode | Glueing | |
| IP rating | IP67 | |
| Operating temperature | -40~70℃ | |
| Storage temperature | -40~+105℃ | |
| Metal resistance | Non-Antimetal metal | |
Product Features
This Φ20mm IP67 high-frequency RFID tag is a rugged, durable, dustproof, and waterproof industrial identification solution. Despite its compact size, it can operate reliably in most harsh conditions, making it a reliable choice for achieving asset digitization and process transparency.
| product model | RF-HZMTY200-112 | RF-HZMTY200-2K |
| working frequency | 13.56MHz | |
| Air port agreement | ISO 15693 | |
| Read distance | 0-50mm(Related to read head) | |
| User memory | 112 Bytes | 2000 Bytes |
| Memory type | EEPROM | FRAM |
| Rewrite cycle | 100,000 times | 10 Billion times |
| Data storage time | 10 years | 10 years |
| size | φ20*3mm | |
| Housing material | PPS | |
| Fixed mode | Glueing | |
| IP rating | IP67 | |
| Operating temperature | -40~70℃ | |
| Storage temperature | -40~+105℃ | |
| Metal resistance | Non-Antimetal metal | |
