Protection level IP67, waterproof and dustproof, resistant to extreme temperatures of -40℃~105℃, and suitable for outdoor or harsh industrial environments.
(3)High-capacity data storage
Provides 2KB user storage space, supports repeated reading and writing for more than 100,000 times, and meets the needs of dynamic data updates.
(4)Fast identification and low power consumption
Response time <20ms, passive design (no battery required), long-term maintenance-free deployment.

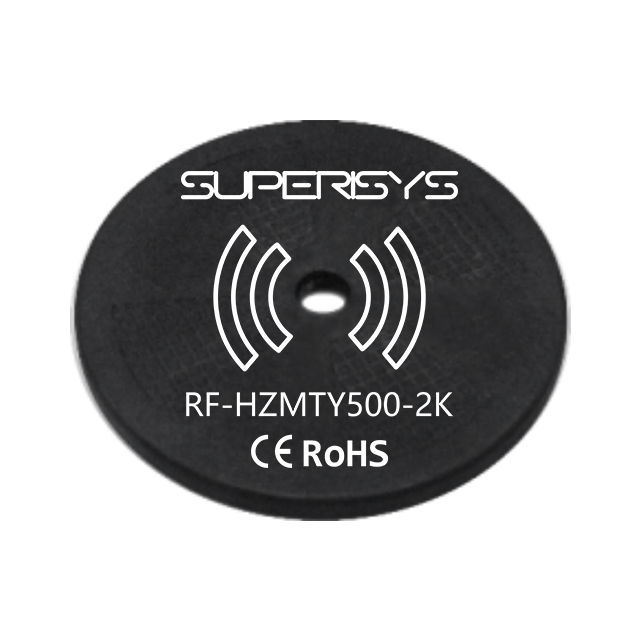

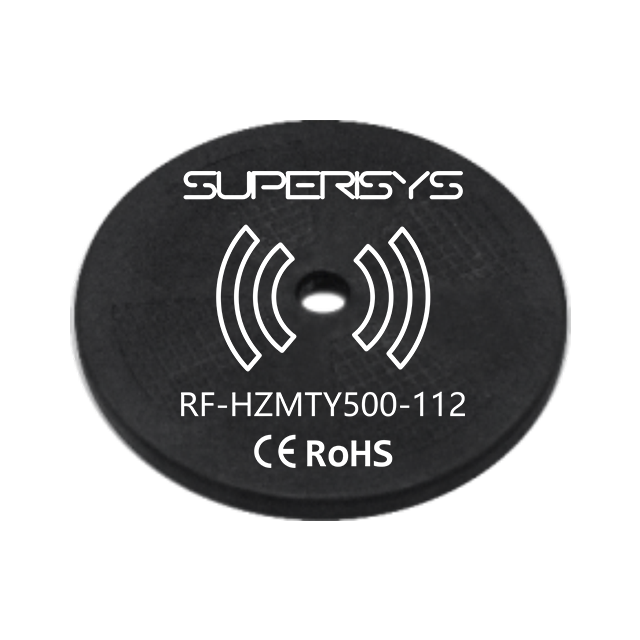

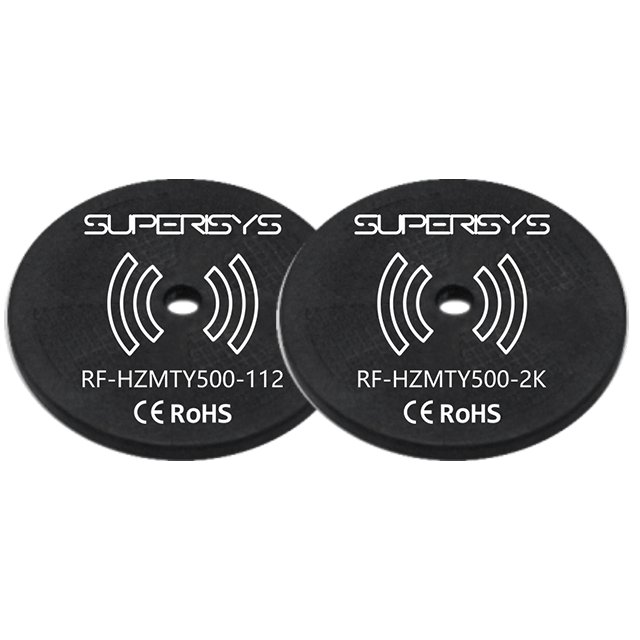

| product model | RF-HZMTY500-112 | RF-HZMTY500-2K |
| working frequency | 13.56MHz | |
| Air port agreement | ISO 15693 | |
| Read distance | 0-120mm(Related to read head) | |
| User memory | 112 Bytes | 2000 Bytes |
| Memory type | EEPROM | FRAM |
| Rewrite cycle | 100,000 times | 10 Billion times |
| Data storage time | 10 years | 10 years |
| size | φ50*3.5mm | |
| Housing material | PPS | |
| Fixed mode | Scewing | |
| IP rating | IP67 | |
| Operating temperature | -40~70℃ | |
| Storage temperature | -40~+150℃ | |
| Metal resistance | Non-Antimetal metal | |
