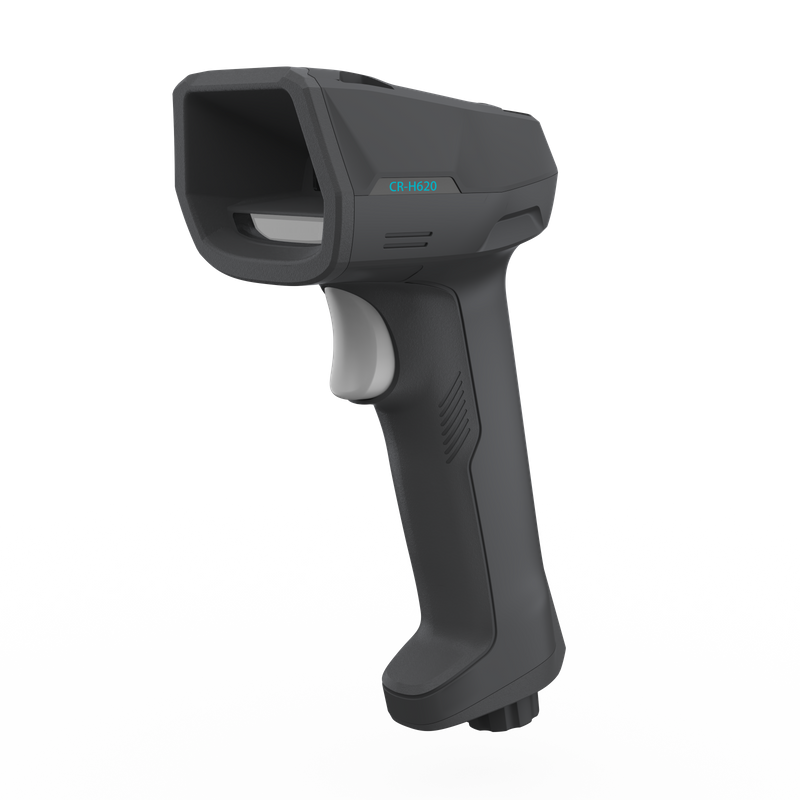

Use for Warehouse Wireless 1d 2d Barcode Reader IP42 Handheld Code Scanner reader

Use for Warehouse Wireless 1d 2d Barcode Reader IP42 Handheld Code Scanner reader

Wireless Handheld barcode scanner 2D/1D, IP42 CE, Rohs,FCC Application in warehouse, logistic, retail

Model:
CR-H620(Wiredless)

Availability:

Quantity:



Inquire Add to Basket

Wireless Barcode scanner Features

It can move freely within the signal coverage area (Bluetooth 10-30 meters, WiFi ).
It is more suitable for warehouse inventory management, mobile checkout, large goods inspection, on-vehicle inspection, and retail store shelf management.
Connect to the host or network via Bluetooth, WiFi, 2.4G wireless, or other methods.

Technical parameters

Model	CR-H620 Wireless
	CR-H620U(SR)	CR-H620-ES(SR)	CR-H620-U(HD)	CR-H620-ES-u(HD)
Supported code system	1Dcode : code39, code93, code128, EAN13, EAN8, upc-E, Interleaved2of5 2D code : Data Matrix (E CC200), QR code
Imagesensor	1280 x960 Pixel Global Shutter CMOs
Max.acquisition frame rate	60fps
Pixel size	3.0μm
Target surface size	1/4"
Field of view angle	Horizontal 40° Vertical 30°		Horizontal 25° Vertical 19°
Check angle	Tilt angle ±60", skew angle ±60", rotation angle 360.
Reading depth of field	DM(10mil):0~170mm; DM(15mil):0~240mm; QR(10mil):0~180mm; QR(15mil):0~270mm; Code128(5mil):40~110mm; Code128(15mil):40~300mm		DM(3mil): 20~40mm; DM(5mil): 15~80mm; DM(10mil):10~135mm; Code128(5mil):10~80
Min. reading accuracy	5mil		3mil
Bluetooth	BT 5.0, 2.4~2.4835 GHz band, BLE
Bluetooth range	70m
Communication Protocol	USB(HID/CDC)	TCP/IP, EIP, pro finet, Mod bus TCP, MC, RS232	USB(HID/CDC)	TCP/IP, EIP, pro finet, Mod bus TCP, MC, RS232
Interface	USB 2.0, DC terminal	Ethernet@100Mbps，RS232，DC terminal	USB 2.0, DC terminal	Ethernet@100Mbps，RS232，DC terminal
Battery	3000mAh
Charging time	In power-off mode: USB 2.0 (5V, 0.5A): 7h; DC24V (24V, 1A): 4h
Battery life	Continuous work: 8 hours; Intermittent work: 15 hours
Powered by	Reader：3.8V DC Base: USB 5V, DC12~24V (optional)	Reader：3.8V DC Base: DC12~24V	Reader：3.8V DC Base: USB 5V, DC12~24V (optional)	Reader：3.8V DC Base: DC12~24V
Max. power consumption	Reader: 2W@3.8V DC Base：DC12~24V
IP	IP42
Lens mount	M8
Ambient Lighting	0-100000lux
Working temp.	-10℃-45℃
Memory temp.	-30℃-70℃

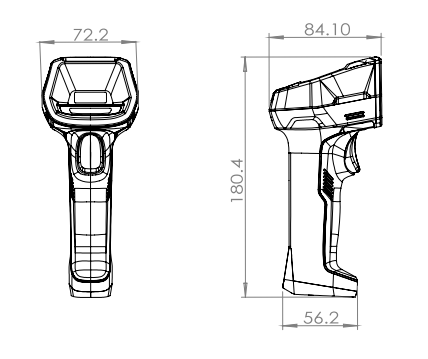

Size	Wired : 188.4*72.2mm
Certificate	CE, FCC, ROHS

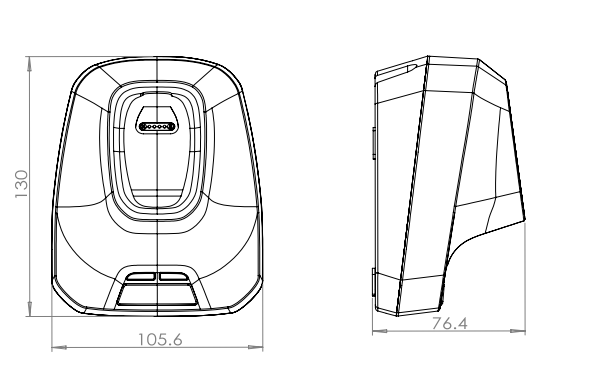

Size
