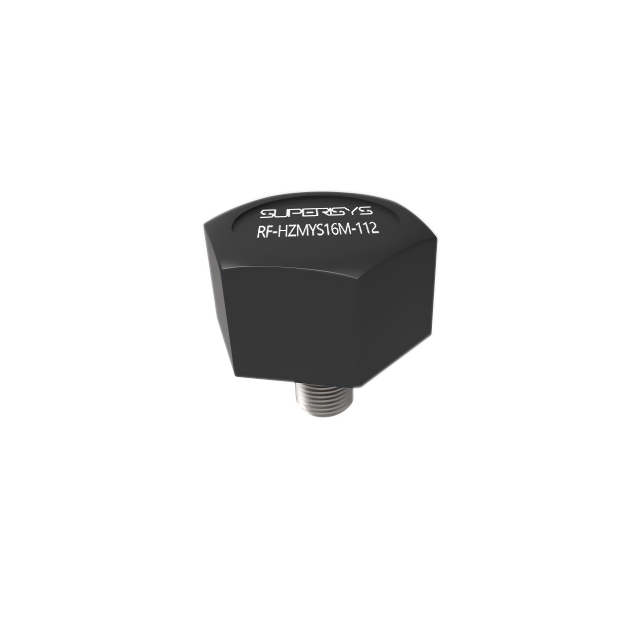

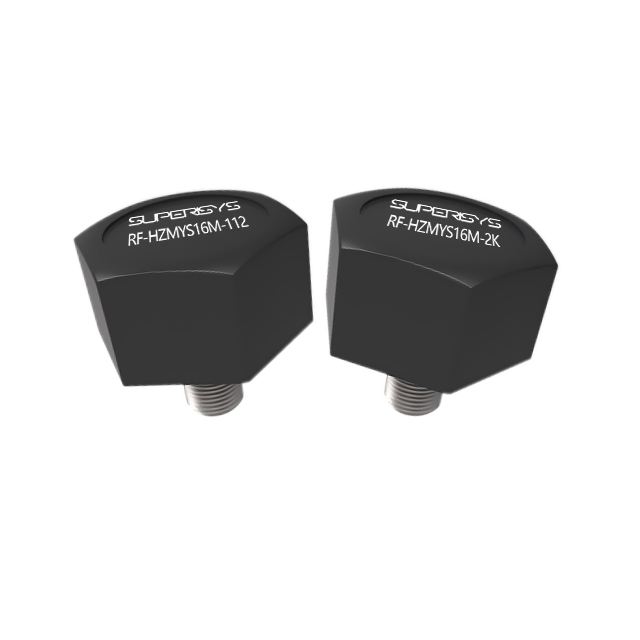

Threaded Design for Secure Installation
Standard threaded mounting ensures fast installation and strong fixation, ideal for high-vibration industrial environments
Stable Short-Range Reading
Read/write distance up to 0–40 mm, perfect for precise identification at close range
Wide Temperature Range
Operating temperature from -40°C to +85°C, suitable for extreme industrial conditions
IP67 Industrial-Grade Durability
Automated production lines
Automotive manufacturing and tracking
Tooling and fixture identification
Metal asset management
Conveyor and positioning systems
| product model | RF-HZMTYS16M-112 |
| working frequency | 13.56MHz |
| Air port agreement | ISO 15693 |
| Read distance | 0-40mm(Related to read head) |
| User memory | 112 Bytes |
| Memory type | EEPROM |
| Rewrite cycle | 100,000 times |
| Data storage time | 10 years |
| size | M16*15.8mm |
| Housing material | PPS |
| Fixed mode | M5 screw |
| IP rating | IP68 |
| Operating temperature | -40~70℃ |
| Storage temperature | -40~+85℃ |
| Metal resistance | Non-Antimetal metal |
Threaded Design for Secure Installation
Standard threaded mounting ensures fast installation and strong fixation, ideal for high-vibration industrial environments
Stable Short-Range Reading
Read/write distance up to 0–40 mm, perfect for precise identification at close range
Wide Temperature Range
Operating temperature from -40°C to +85°C, suitable for extreme industrial conditions
IP67 Industrial-Grade Durability
Automated production lines
Automotive manufacturing and tracking
Tooling and fixture identification
Metal asset management
Conveyor and positioning systems
| product model | RF-HZMTYS16M-112 |
| working frequency | 13.56MHz |
| Air port agreement | ISO 15693 |
| Read distance | 0-40mm(Related to read head) |
| User memory | 112 Bytes |
| Memory type | EEPROM |
| Rewrite cycle | 100,000 times |
| Data storage time | 10 years |
| size | M16*15.8mm |
| Housing material | PPS |
| Fixed mode | M5 screw |
| IP rating | IP68 |
| Operating temperature | -40~70℃ |
| Storage temperature | -40~+85℃ |
| Metal resistance | Non-Antimetal metal |
