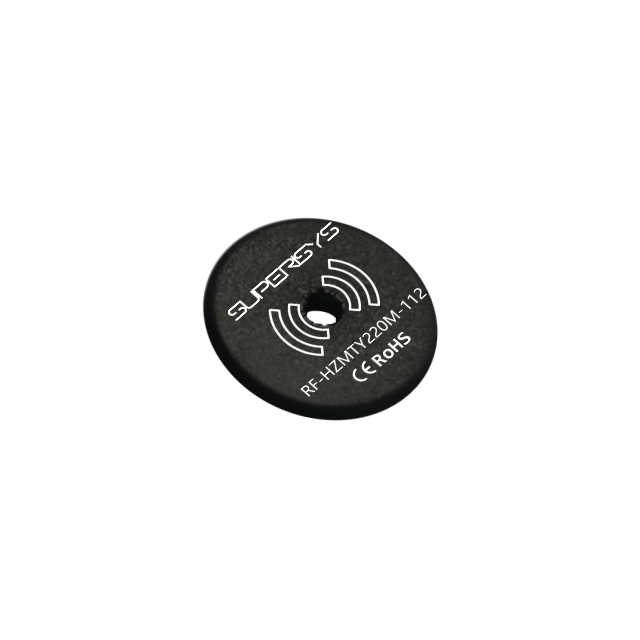

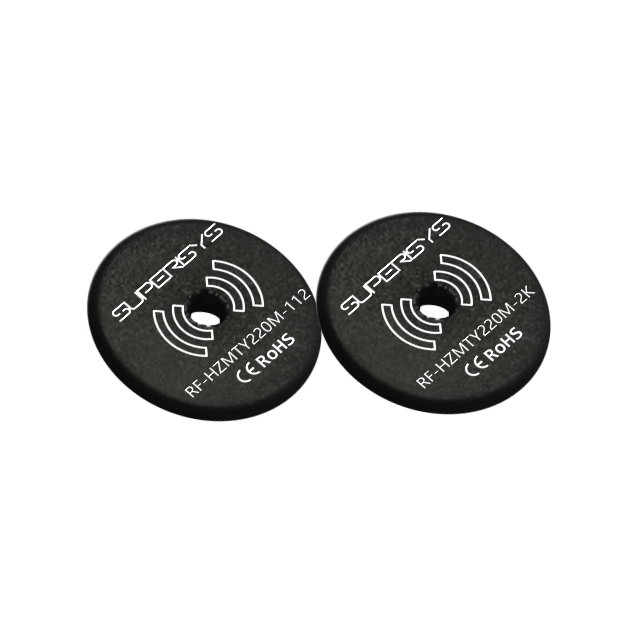

22mm on Metal surface Circular Industrial HF RFIDTag

Delivery and Payments

Product Advantages

Precise Work-in-Process Tracking and Error Prevention in Flexible Production Lines

Application Targets: Metal trays or specialized fixtures carrying workpieces such as mobile phone cases, automotive parts, and circuit boards.

Application Method: Securely affix labels to designated locations on the fixtures.

Automated Process Integration:

Process Trigger: When a tagged fixture flows into an assembly station, testing station, or robotic workstation, an embedded reader automatically reads the label ID.

Command Issuance: Based on the ID, the system immediately issues the corresponding process parameters (such as torque value, glue application path, and test program) to the equipment at that station (tightening gun, glue applicator, tester) that match the workpiece.

Error Prevention and Traceability: Ensures "one workpiece, one parameter," achieving zero-defect production. All process data (such as actual torque and test results) are automatically bound to the fixture ID, forming a complete end-to-end traceability chain.

FAQ

Q1: Does the HF RFID Tag require an external antenna on the metal surface?

A: No external antenna is required. HZMTY220 has a built-in anti-metal substrate and can be directly attached to the metal surface for use.

Q2: How is the high temperature resistance of the tag?

A: The operating temperature range is -40℃~105℃, suitable for high-temperature sterilization (such as medical equipment) or low-temperature storage scenarios.

Q3: Does it support batch encoding?

A: Yes. UID or user data can be quickly written in batches through the reader/writer to improve deployment efficiency.

Q4: How long is the life of the tag?

A: Passive design, theoretical life of more than 10 years, read and write times ≥100,000 times, no daily maintenance requirements.

Q5: How to ensure data security?

A: Supports password protection and data encryption to prevent unauthorized tampering or cloning.
