| Quantity: | |
|---|---|

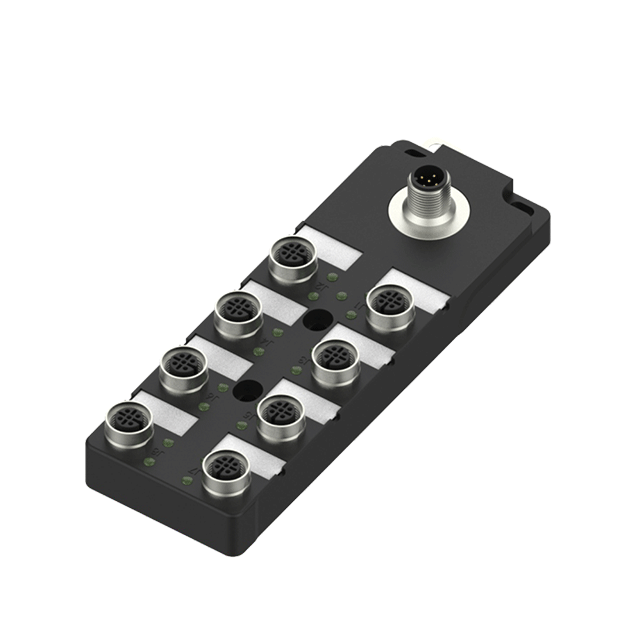

1.The Slave IO Link communication module is an RFID controller that offers standard industrial bus protocols
2.It includes two M12 A- CODE power supply interfaces.
3. The housing is made of a sturdy PA6+GF material, featuring wide connection range, strong communication capability, good environmental adaptability, and a high level of protection.
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Basic Parameter | |
Shell Material | PA6+GF |
| Color | Black |
| Product description | IO-LINK Slave module |
| IP67 protection class, Epoxy full potting | |
| I/O connection mode | M12, 5pin hole holder, A code |
| Size | 155*53*28.7mm |
| Weight | 217g |
| Operating tem. | -25℃--70℃ |
| Memory Tem. | -40℃--70℃ |
| Operating Humidity | 5%-95% |
| Memory Humidity | 5%-95% |
| Operate pressure | 80Kpa-106Kpa |
| I/O port tightening torque | M12:0.5Nm |
| Application environment | Conforms to EN-61131 |
| Vibration measurement | Conforms to EN-60068-2 |
| Impact test | Conforms to EN-60068-27 |
| White by drop test | Conforms to EN-60068-32 |
| Electromagnetic Compatibility (EMC) | Conforms to EN-61000-4-2,-3,-4 |
| Certification | CE, RoHS |
| Mounting hole specification | φ4.3mm×4 |
| IO-Link Slave parameters | |
| Type | IACM-AIO8VI-IOL |
| lO-Link port number | 1× slave |
| lO-Link Process data length | 2 input bytes |
| 2 output bytes | |
| Minimum cycle | 3 ms |
| Input. Output quantity | 16 input |
| Rated operational voltage | 18--30VDC |
| Maximum load current (sensor) | 200mA |
| Maximum load current（actuator） | 500mA |
| Total current UI | ＜1.6A |
| Total current UO | ＜2.5A |
| Indicator Lights | |
IO Link Run | Green: The communication is down Green flash：Normal communication Red: Communication is interrupted |
| PWR | Green: The power supply to the module is Normal Off: The module power supply is not connecte |
| I/O | Green: normal channel signal red: short circuit of port power supply |

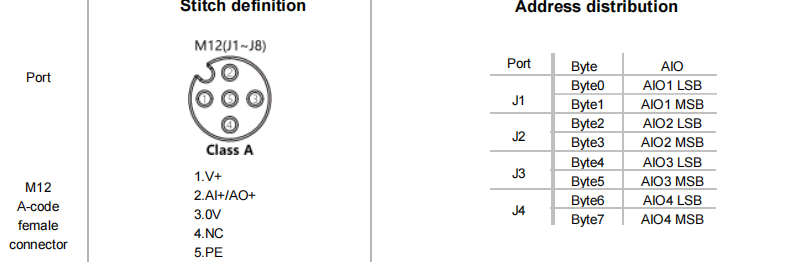

| PIN DEFINITION | |
| |
1.The Slave IO Link communication module is an RFID controller that offers standard industrial bus protocols
2.It includes two M12 A- CODE power supply interfaces.
3. The housing is made of a sturdy PA6+GF material, featuring wide connection range, strong communication capability, good environmental adaptability, and a high level of protection.
| Minimum Order Quantity | one |
| Delivery Time | 1-2 work days |
| Stock | In Stock |
| Description | 8-port series, IOLINK master station |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
| Basic Parameter | |
Shell Material | PA6+GF |
| Color | Black |
| Product description | IO-LINK Slave module |
| IP67 protection class, Epoxy full potting | |
| I/O connection mode | M12, 5pin hole holder, A code |
| Size | 155*53*28.7mm |
| Weight | 217g |
| Operating tem. | -25℃--70℃ |
| Memory Tem. | -40℃--70℃ |
| Operating Humidity | 5%-95% |
| Memory Humidity | 5%-95% |
| Operate pressure | 80Kpa-106Kpa |
| I/O port tightening torque | M12:0.5Nm |
| Application environment | Conforms to EN-61131 |
| Vibration measurement | Conforms to EN-60068-2 |
| Impact test | Conforms to EN-60068-27 |
| White by drop test | Conforms to EN-60068-32 |
| Electromagnetic Compatibility (EMC) | Conforms to EN-61000-4-2,-3,-4 |
| Certification | CE, RoHS |
| Mounting hole specification | φ4.3mm×4 |
| IO-Link Slave parameters | |
| Type | IACM-AIO8VI-IOL |
| lO-Link port number | 1× slave |
| lO-Link Process data length | 2 input bytes |
| 2 output bytes | |
| Minimum cycle | 3 ms |
| Input. Output quantity | 16 input |
| Rated operational voltage | 18--30VDC |
| Maximum load current (sensor) | 200mA |
| Maximum load current（actuator） | 500mA |
| Total current UI | ＜1.6A |
| Total current UO | ＜2.5A |
| Indicator Lights | |
IO Link Run | Green: The communication is down Green flash：Normal communication Red: Communication is interrupted |
| PWR | Green: The power supply to the module is Normal Off: The module power supply is not connecte |
| I/O | Green: normal channel signal red: short circuit of port power supply |
| PIN DEFINITION | |
| |
