Common Bus Protocols:
Industrial Ethernet: Profinet, EtherNet/IP, EtherCAT, Modbus TCP. This is the current mainstream and trend, providing high-speed, high-bandwidth communication.
Traditional Fieldbus: PROFIBUS DP, DeviceNet, CANopen, CC-Link. Commonly used for retrofitting legacy systems or in specific industries.
Advantages: Enables true distributed I/O. Modules can be installed near devices far from the PLC control cabinet, connected by only a single communication cable (network cable or bus cable), greatly simplifying wiring.
Unparalleled Point Density and Space Saving: Integrating 32 points on a single module maximizes the use of DIN rail space and network node addresses, reducing per-point costs.
Distributed Architecture, Cabling Revolution: Pushing the I/O layer closer to the device, replacing dozens or even hundreds of control cables with a single network cable, saving significant amounts of cabling, cable trays, installation, and maintenance costs.
Flexible Configuration and Scalability: Most models support software configuration of channel input/output modes (if hardware supports it), adapting to future process changes. Easy to expand by adding modules.
High-Performance Integration: Thanks to modern industrial Ethernet, it enables microsecond-level synchronous data exchange, meeting the demands of high-speed applications.
| Communication protocol | Model | |||||||
 | IACM-DI32P-ECT | IACM-DI32N-ECT | IACM-DO32P-ECT | IACM-DO32N-ECT | ||||
 | IACM-DI32P-PN | IACM-DI32N-PN | IACM-DO32P-PN | IACM-DO32N-PN | ||||
 | IACM-DI32P-EIP | IACM-DI32N-EIP | IACM-DO32P-EIP | IACM-DO32N-EIP | ||||
| Basic parameter | ||||||||
| Shell material | Aluminium alloy | |||||||
| Shell color | Anodized black | |||||||
| Level of protection | IP20 | |||||||
| Boundary dimension | 86mm×119.6mm×31.9mm | |||||||
| Weight | 429g | |||||||
| Operating temperature | -25℃…70℃ | |||||||
| Storage/transport temperature | -40℃…85℃ | |||||||
| Operation humidity | 5%…95% | |||||||
| Storage/transport humidity | 5%…95% | |||||||
| Operating atmosphere | 80KPa…106KPa | |||||||
| Preserve/transport atmospheric pressure | 80KPa…106KPa | |||||||
| application environment | Accord withEN-61131 | |||||||
| Vibration measurement | Accord withIEC60068-2 | |||||||
| Shock test | Accord withIEC60068-27 | |||||||
| Electromagnetic Compatibility (EMC) | Accord withIEC61000-4-2,-3,-4 | |||||||
| Authentication | CE,RoHS | |||||||
| Mounting hole specification | Rail mounting | |||||||

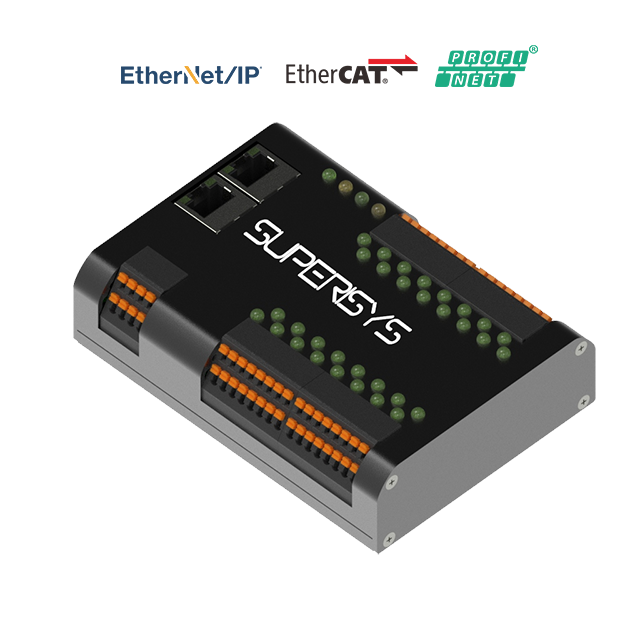

| Product description | 32 Channel input | 32 Channel output | ||||||
| IP20 | IP20 | |||||||
| Independent module | ||||||||
| IO Connection mode | Terminal connection, 16x2 spring terminal, max.1.5mm² | |||||||
| Digital input and output parameters | ||||||||
| Number of channels | 32 | |||||||
| Connection type | 16x2 spring terminal, max.1.5mm² | |||||||
| Input type | PNP | NPN | / | / | ||||
| Input diagnostic type | Supply short circuit diagnosis | / | ||||||
| Switching threshold | EN 61131-2 Type 1/3 | / | / | |||||
| Switching frequency | 250 Hz | |||||||
| Output type | / | PNP | NPN | |||||
| Output diagnostic type | / | Point diagnosis | ||||||
| Output voltage | / | 0V(potential group 24VDC) | 0V(potential group 24VDC) | |||||
| Channel output current | / | 0.5A/ch | 0.5A/ch | |||||
| Ioadtype | / | Resistance, sensibility, lamp | Resistance, sensibility, lamp | |||||
| Module indicator | ||||||||
| EtherCat protocol | ProfiNet protocol | EtherNet/IP protocol | ||||||
| PWR | Green; The module power supply is normal. | |||||||
| Red: The power supply of the module is reversed | ||||||||
| I/o | Green: The channel signal is normal | |||||||
| Red: The port power supply is short-circuited | ||||||||
| LINK | Green: The link is normal | |||||||
| Yellow flash: The link is normal and the data communication is normal | ||||||||
| Off: The link is not established | ||||||||
| RUN | Green: indicates the OP status | SF | Red: The module is faulty | MS | Green: The module is normal | |||
| Green slow blinking; SAFEOP status | Blinking green: The module is not configured | |||||||
| Green fast blinking: The Pre-OP status is displayed | BF | Red: Internal error | Red: The module is faulty | |||||
| Off: indicates the Init state | Red blinking: Device name / | NS | Green: The network is normal | |||||
| ERR | Red blinking: A communication error occurs | IP/ | Blinking green: The communication is not established | |||||
| Off: The module is working properly | The module group status is incorrect | Red blinking: The communication is interrupted | ||||||
| Pin definition of the I/O port | ||||||||
| Schematic diagram of power terminal wiring |  |  | ||||||
| IO terminal wiring diagram |  |  |  | |||||
