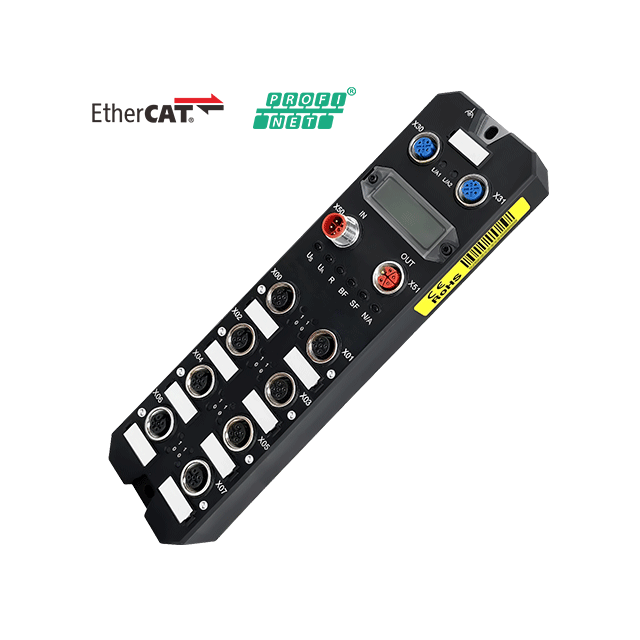

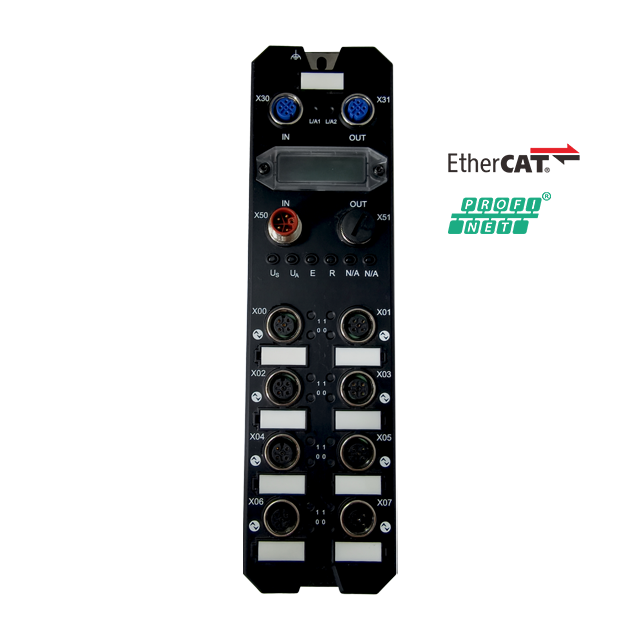

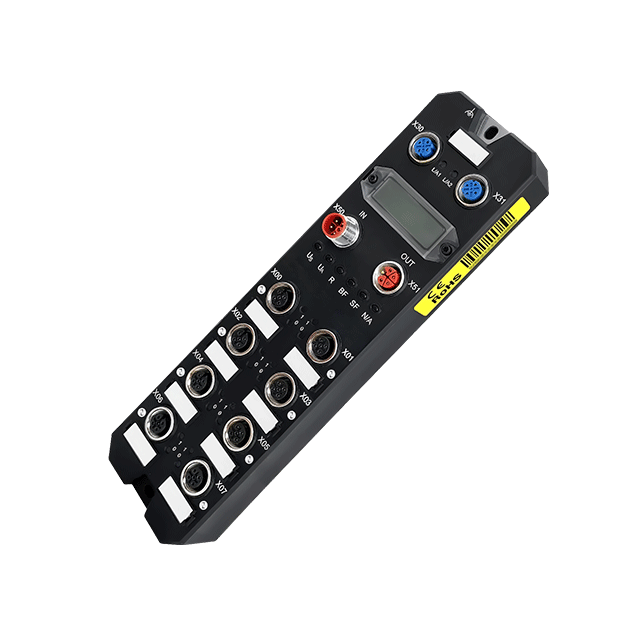

Superisys 8-port CLASS A IO-Link Master is a flagship product designed for high-density, standardized, and intelligent field control needs. It perfectly balances port count, communication performance, cost, and reliability, making it particularly suitable as a local I/O control center for medium to large-scale automation units or stand-alone machines.
| Model | IACM-IOLM8A-ECT | IACM-IOLM8A-PN |
| Communication protocol |  |  |
Shell Material | PBT+GF30% | |
| Color | Black | |
| Product description | IO-LINK master module | |
| 8 Class A port | ||
| IP67 protection class | ||
| I/O connection mode | M12, 5pin hole holder, A code | |
| IO-Link master parameters | ||
| Number of master stations | The maximum configurable 8 ports | |
| Master connection mode | M12, 5-core, A-code, female head | |
| lO-link version | V1.1.2 | |
| Communication rate | COM1:4.8KBps | |
| COM2;38.4KBps | ||
| COM3:230.4KBps | ||
| The port voltage is L+ | type.24VDC(via US) | |
| The port current is L+ | 2A(via US) | |
| ClassB auxiliary voltage | - | |
| ClassB auxiliary voltage | - | |
| Class A | 8port ,X1.….X8 | |
| Class B | - | |
| Master-slave communication distance | ≤20 meters | |
| Master-master communication distance | ≤100meters | |
| Digital input and output parameters | ||
| Number of inputs | 8 way, adaptive | |
| Input port location | X1…X8 | |
| Polarity of input | PNP | |
| Signal "0" voltage | -0.3…5VDC | |
| Signal "1" voltage | 12…30VDC | |
| incoming current | type.5mA(via US) | |
| Number of outputs | 8 way, adaptive | |
| Output port location | X1…X8 | |
| Polarity of input | PNP | |
| current output | Single channel 2A(via UA) | |
| Port protection | Power short circuit protection, power supply port overload protection | |
