Independence and Reliability: Each port operates independently; a failure or maintenance of one port does not affect other ports.

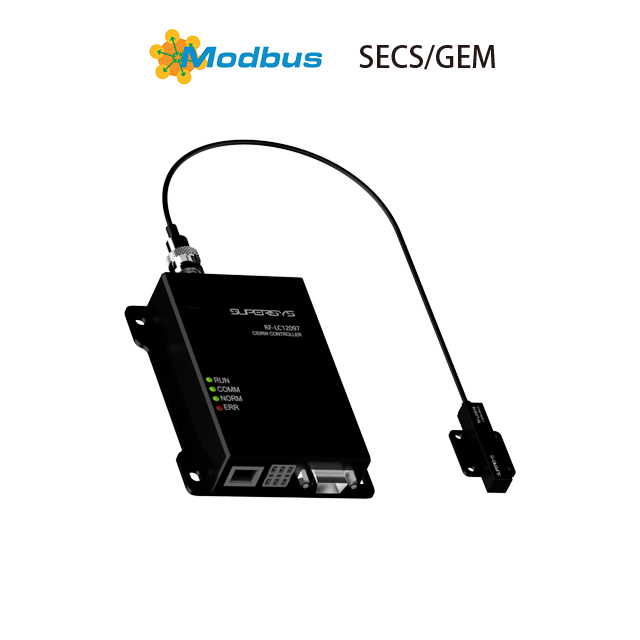

Simple Cabling: The antenna connects directly to a single-channel reader in a nearby control cabinet, simplifying the wiring.
Cost Optimization: For devices with only 1 ports, using a single-channel reader is more economical than using a multi-channel reader.
The system applies to the following SEMI standards:
SEMI E99 Carrier ID read/write standard
SEMI E37 High-speed SECS Messaging Service Common Service (HSMS)
SEMI E5 Device Communication Standard 2 Message Content (SECS II)
SEMI E4 Device Communication Standard 1 Message Content (SECS I)
| Frequency | 134.2 KHz |
| Protocol | ISO 11784/11785 |
| Voltage | 9-30VDC |
| Average current | ＜0.2A@24VDC |
| Indicator lights | 4*LED |
| Antenna port | 1 |
| Antenna interface | BNC female |
| Communication Interface | Ethernet, RS485,RS232 |
| Communication Protocol | SECS ,Modbus TCP,Modbus RTU |
Shell material | Aluminium Alloy |
| Memory temperature | -40°C To +85°C |
| Operating Temperature | -25°C To +70°C |
| Dimensions | 120*97*27.5Mm |
| Frequency | 134.2 KHz |
| Shock Resistance | 2 Mm (f= 5…29.5 Hz ) , EN 60068-2-67 Gn (f= 29.5…150 Hz) , EN 60068-2-6 |
| Application | Access Control, Animal Tracking, Inventory Management |
| Waterproof | IP20, EN 60529 |
| Rohs | 2011/65/EU , 2015/863/EU |
Independence and Reliability: Each port operates independently; a failure or maintenance of one port does not affect other ports.
Simple Cabling: The antenna connects directly to a single-channel reader in a nearby control cabinet, simplifying the wiring.
Cost Optimization: For devices with only 1 ports, using a single-channel reader is more economical than using a multi-channel reader.
The system applies to the following SEMI standards:
SEMI E99 Carrier ID read/write standard
SEMI E37 High-speed SECS Messaging Service Common Service (HSMS)
SEMI E5 Device Communication Standard 2 Message Content (SECS II)
SEMI E4 Device Communication Standard 1 Message Content (SECS I)
| Frequency | 134.2 KHz |
| Protocol | ISO 11784/11785 |
| Voltage | 9-30VDC |
| Average current | ＜0.2A@24VDC |
| Indicator lights | 4*LED |
| Antenna port | 1 |
| Antenna interface | BNC female |
| Communication Interface | Ethernet, RS485,RS232 |
| Communication Protocol | SECS ,Modbus TCP,Modbus RTU |
Shell material | Aluminium Alloy |
| Memory temperature | -40°C To +85°C |
| Operating Temperature | -25°C To +70°C |
| Dimensions | 120*97*27.5Mm |
| Frequency | 134.2 KHz |
| Shock Resistance | 2 Mm (f= 5…29.5 Hz ) , EN 60068-2-67 Gn (f= 29.5…150 Hz) , EN 60068-2-6 |
| Application | Access Control, Animal Tracking, Inventory Management |
| Waterproof | IP20, EN 60529 |
| Rohs | 2011/65/EU , 2015/863/EU |
