The system applies to the following SEMI standards:
SEMI E99 Carrier ID read/write standard
SEMI E37 High-speed SECS Messaging Service Common Service (HSMS)
SEMI E5 Device Communication Standard 2 Message Content (SECS II)
SEMI E4 Device Communication Standard 1 Message Content (SECS I)
134.2K frequency, support for IS011784, IS011785 protocol • Support for Texas Instruments (TI) manufactured RI-TRP-DR2B.
RI-TRP-WVR2B tag ID
RS232, RS485, Ethernet communication
SECS protocol, MODBUS RTU and MODBUSTCP protocol

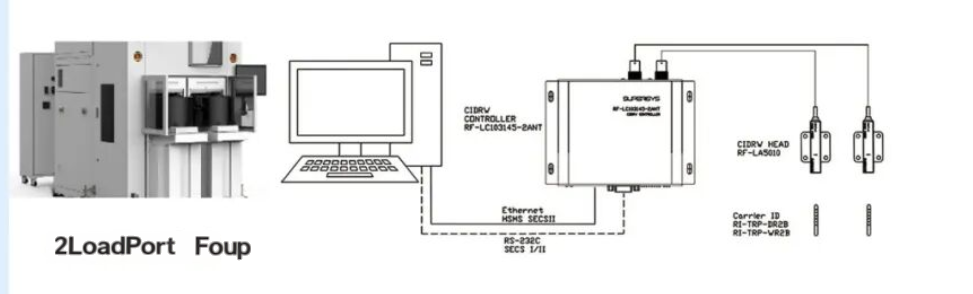

CIDRW controller is available in various models, can support 1, 2, 4, 16 CIDRW read head connection
| Working Mode | HDX |
| Working Frequency | 134.2Khz |
| Wireless Protocols | ISO11784, ISO11785 |
| Supply voltage | 9-30VDC |
| Average current | ＜0.1A@24VDC |
| Indicator Lights | 4pcs LED+2Pcs Antenna LED |
No. of antenna ports | 2 |
| Antenna interface type | BNC Female |
| Communication interface | Ethernet,RS485,RS232 |
| Material | Aluminium Alloy |
| Communication protocol | SECS ,Modbus TCP, Modbus RTU |
| Communication interface | Ethernet, RS485,RS232 |
| Fixed | 4*M4 Screw |
| Operating Temperature | -25°C -- +70°C |
| Storage temperature | -40℃-- +85℃ |
| Dimensions | 103*114.5*28.5Mm |
| Frequency | 134.2 KHz |
| Humidity | 5%-95%RH (No condensation) |
| Shock Resistance | 2 Mm (f= 5…29.5 Hz ) , EN 60068-2-6 7 Gn (f= 29.5…150 Hz) , EN 60068-2-6 |
| Electrostatic discharge immunity(ESD) | IEC61000-4-2 |
| RoHS | 2011/65/EU. 2015/863/EU |

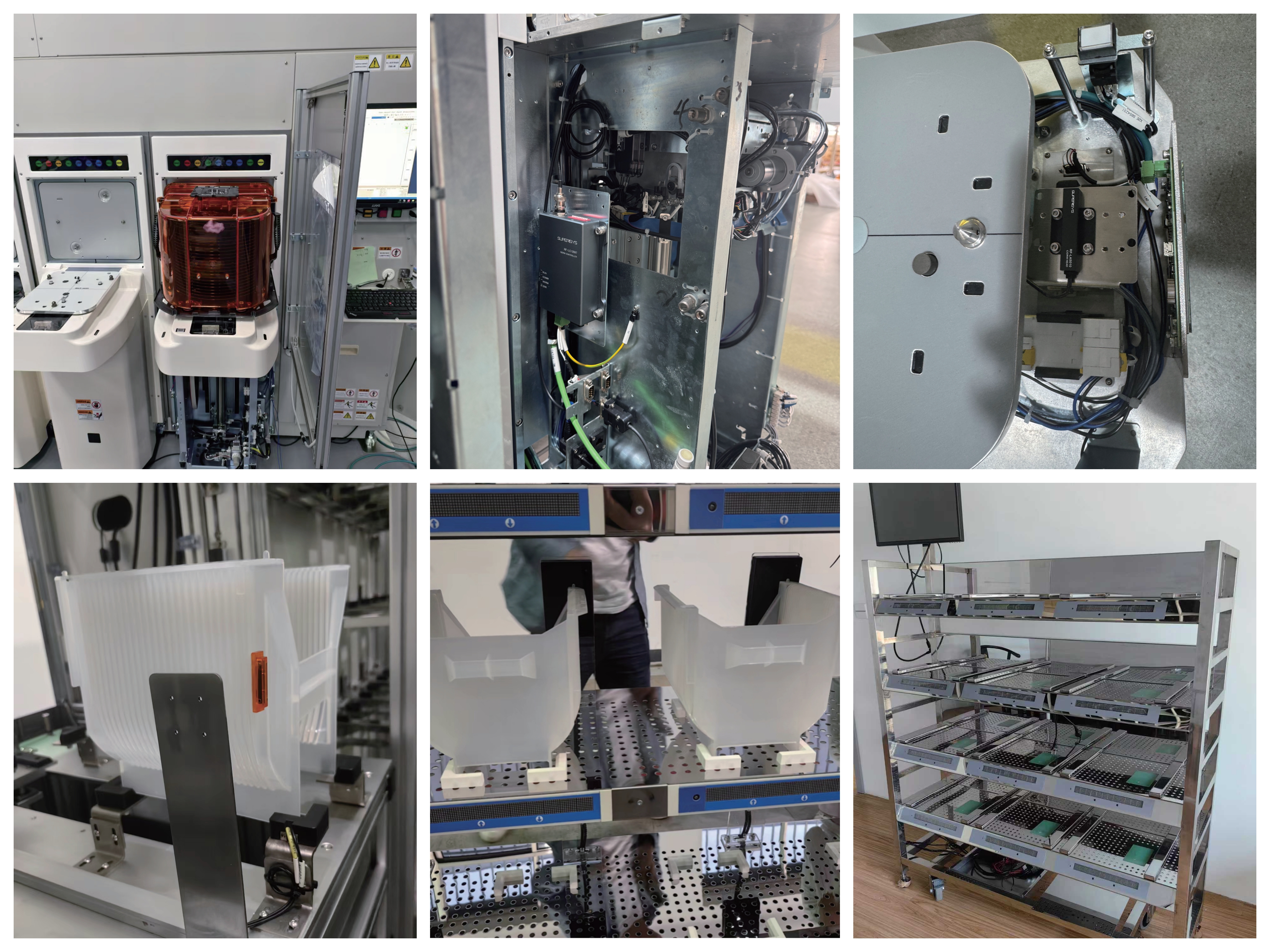

| Application | Access Control, Animal Tracking, Inventory Management |
| Waterproof | IP20, EN 60529 |
| RoHS | 2011/65/EC, 2015/863/EU |
