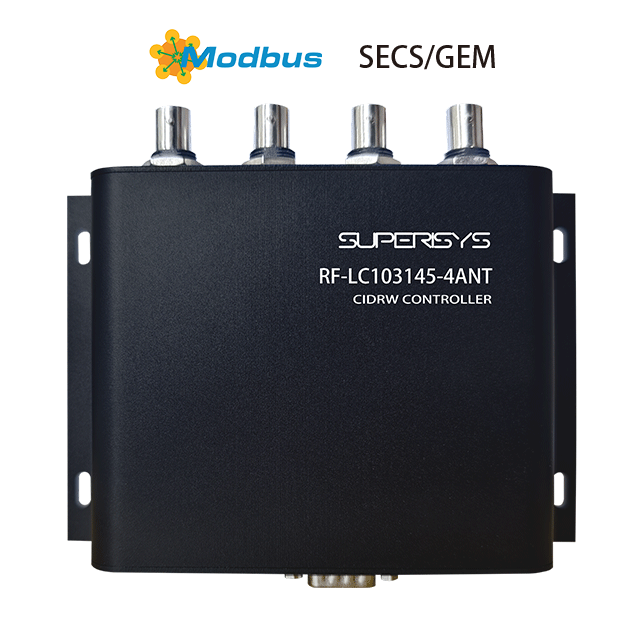

Low Frequency 4 Gateway CIDRW Controller for Semiconductor Support Multiple readers connected

Applications

Semiconductor wafer cassettes are transported using automated overhead cranes, while the LoadPort wafer loading device enables rapid docking of wafer cassettes between the overhead crane and production equipment.

• E-Rack Foup identificaiton

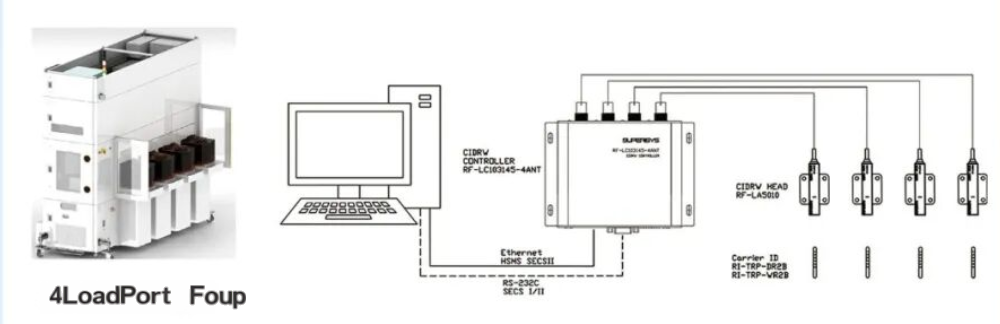

• Loadport: Foup Identification

• Foup Stocker: Foup Identification

• AMR/AGV

• OHB: Foup Identificaiton

• OHB: Station Identification

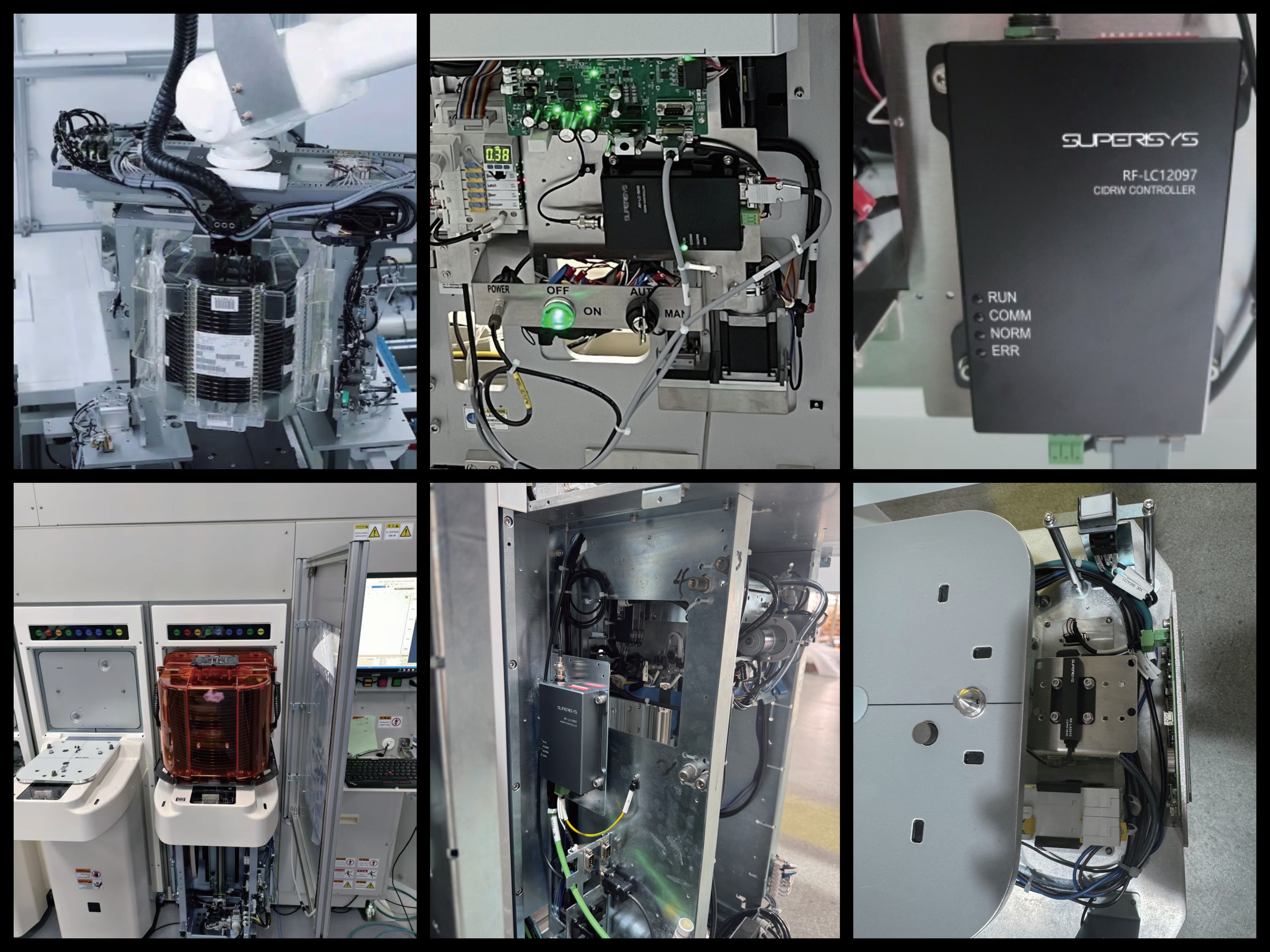

RFID products are used in the semiconductor industry across all stages of  production, transportation, and storage:

A: Production Process Traceability - The semiconductor CIDRW reader can quickly and accurately identify the  production information on the TI glass capsule tag on the wafer cassette, including manufacturing date, manufacturing process, and product type, enabling full-process tracking and management of the production process

B: Handling Process Identification - A semiconductor CIDRW reader reads the CID tag station information on  the overhead crane track, monitors the crane's real-time position, and plans and dispatches routes based on its  own location, ensuring safe operating distances and transport efficiency.

C: Cassette Storage Management - A semiconductor CIDRW reader, installed in an E-Rack or wafer cassette  stocker, identifies the specific storage time, removal time, and storage location of a wafer cassette in real time. It  can also quickly and accurately locate the storage location of the desired wafer cassette through the management system.
