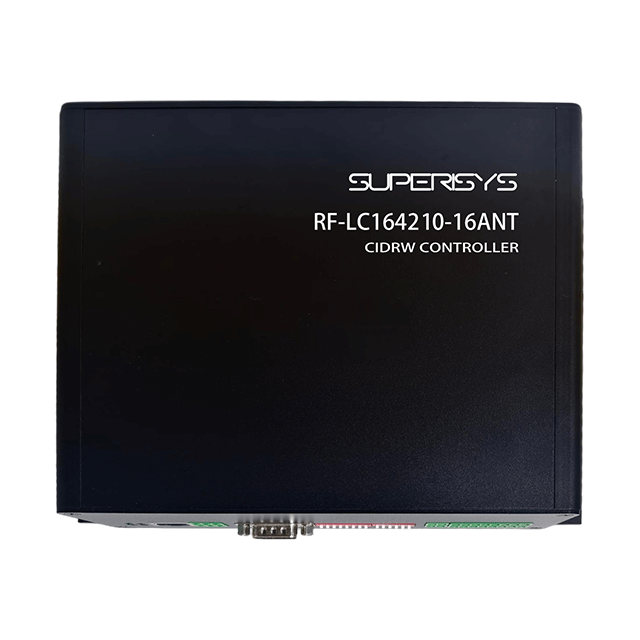

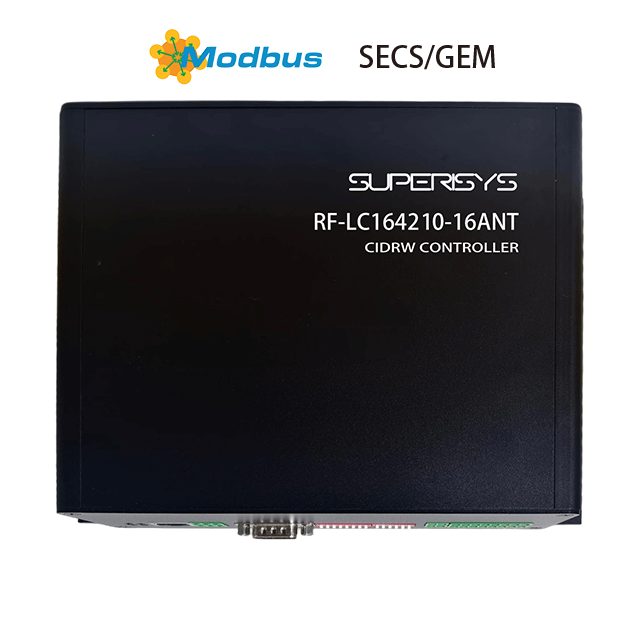

Superisys provides the most critical semiconductor-specific RFID read/write unit for Load Port wafer loading equipment, supporting standard industrial semiconductor SECS and MODBUS protocols. It supports both I and N protocols and multiple combinations such as one-to-one, one-to-two, and one-to-four to identify TI carrier codes on Foup.
| Type | RF-LC103145-16ANT |
| Working Mode | HDX |
| Working Frequency | 134.2Khz |
| Wireless Protocols | ISO11784, ISO11785 |
| Supply voltage | 9-30VDC |
| Average current | ＜0.1A@24VDC |
| Indicator Lights | 4pcs LED+2Pcs Antenna LED |
No. of antenna ports | 16 |
| Antenna interface type | BNC Female |
| Communication interface | Ethernet,RS485,RS232 |
| Material | Aluminium Alloy |
| Color | Black |
| Communication Protocol | SECS ,Modbus TCP, Modbus RTU |
| Fixed | 4*M4 Screw |
| Operating Temperature | -25°C -- +70°C |
| Storage temperature | -40℃-- +85℃ |
| Dimensions | 164*260*65mm |
| Frequency | 134.2 KHz |
| Humidity | 5%-95%RH (No condensation) |
| Shock Resistance | 2 Mm (f= 5…29.5 Hz ) , EN 60068-2-6 7 Gn (f= 29.5…150 Hz) , EN 60068-2-6 |
| Electrostatic discharge immunity(ESD) | IEC61000-4-2 |
| RoHS | 2011/65/EU. 2015/863/EU |
| Application | Access Control, Animal Tracking, Inventory Management |
| Waterproof | IP20, EN 60529 |
Superisys provides the most critical semiconductor-specific RFID read/write unit for Load Port wafer loading equipment, supporting standard industrial semiconductor SECS and MODBUS protocols. It supports both I and N protocols and multiple combinations such as one-to-one, one-to-two, and one-to-four to identify TI carrier codes on Foup.
| Type | RF-LC103145-16ANT |
| Working Mode | HDX |
| Working Frequency | 134.2Khz |
| Wireless Protocols | ISO11784, ISO11785 |
| Supply voltage | 9-30VDC |
| Average current | ＜0.1A@24VDC |
| Indicator Lights | 4pcs LED+2Pcs Antenna LED |
No. of antenna ports | 16 |
| Antenna interface type | BNC Female |
| Communication interface | Ethernet,RS485,RS232 |
| Material | Aluminium Alloy |
| Color | Black |
| Communication Protocol | SECS ,Modbus TCP, Modbus RTU |
| Fixed | 4*M4 Screw |
| Operating Temperature | -25°C -- +70°C |
| Storage temperature | -40℃-- +85℃ |
| Dimensions | 164*260*65mm |
| Frequency | 134.2 KHz |
| Humidity | 5%-95%RH (No condensation) |
| Shock Resistance | 2 Mm (f= 5…29.5 Hz ) , EN 60068-2-6 7 Gn (f= 29.5…150 Hz) , EN 60068-2-6 |
| Electrostatic discharge immunity(ESD) | IEC61000-4-2 |
| RoHS | 2011/65/EU. 2015/863/EU |
| Application | Access Control, Animal Tracking, Inventory Management |
| Waterproof | IP20, EN 60529 |
