RFID-Enabled Gantry Robot System for Heavy Industrial Smart Warehousing

Reliable UHF Identification in Metal-Rich Automation Environments

In heavy manufacturing and bulk material handling environments, traditional forklift- and crane-based operations are being replaced by automated gantry robot systems.

However, one critical challenge remains:
how to achieve stable and deterministic RFID identification in metal-heavy environments without cross-reading interference.

This solution demonstrates a system-level approach combining robotics, industrial RFID, and industrial communication networks.

System Overview

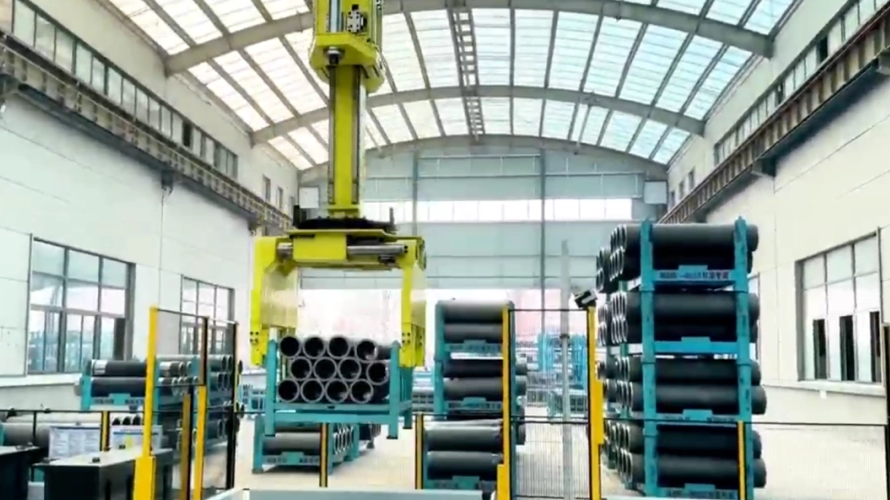

This solution integrates a heavy-duty gantry robot with an industrial RFID identification system to enable fully automated material handling.

The system consists of three core layers:

1. Mechanical Layer

• Heavy-duty gantry robot system

• Servo-driven gripper for material frame handling

• Rack-free warehouse structure (ground rail only)

2. RFID Identification Layer

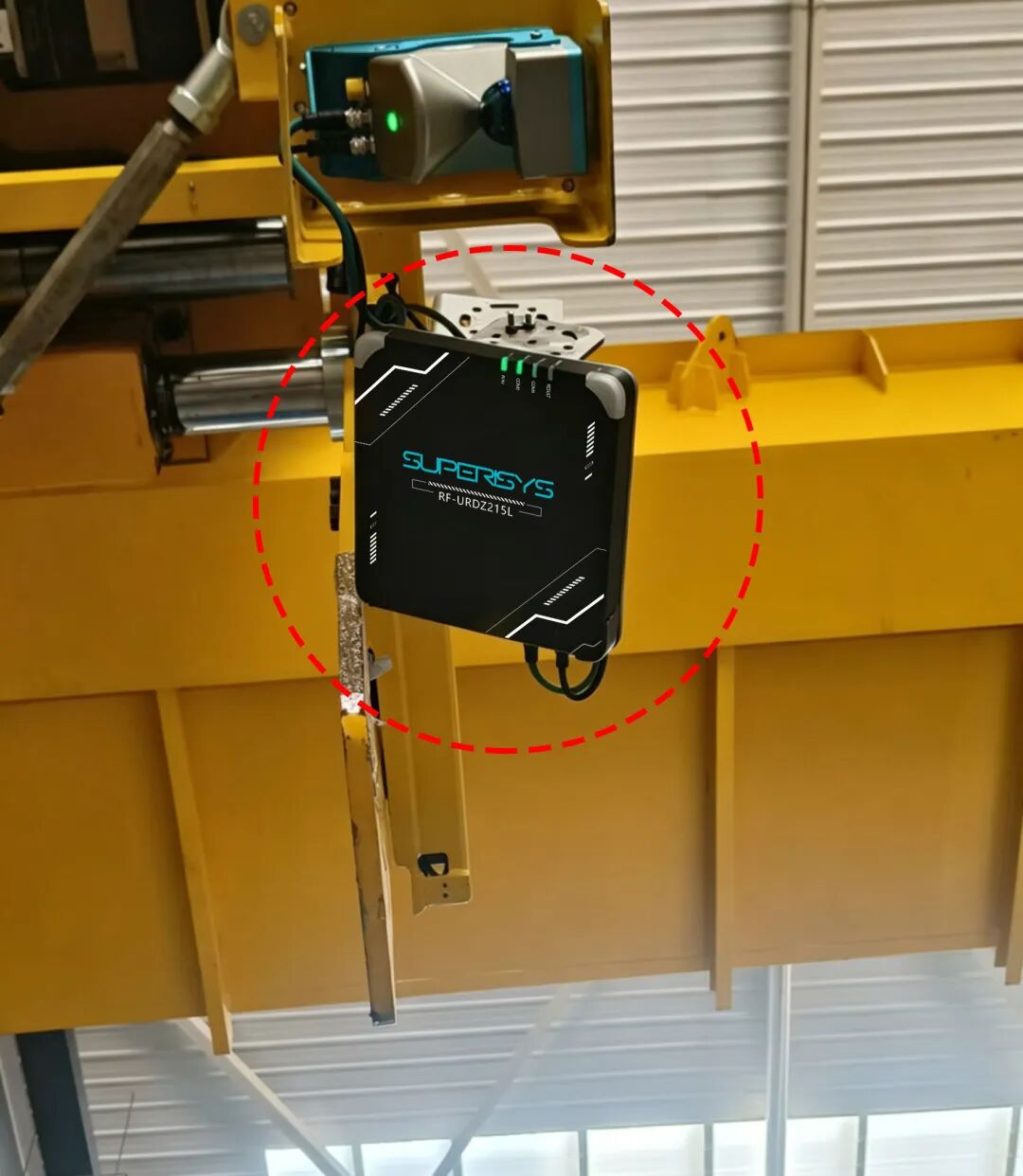

• Industrial UHF RFID reader integrated on robot

• Anti-metal RFID tags installed on material racks

• Real-time identification of material carriers

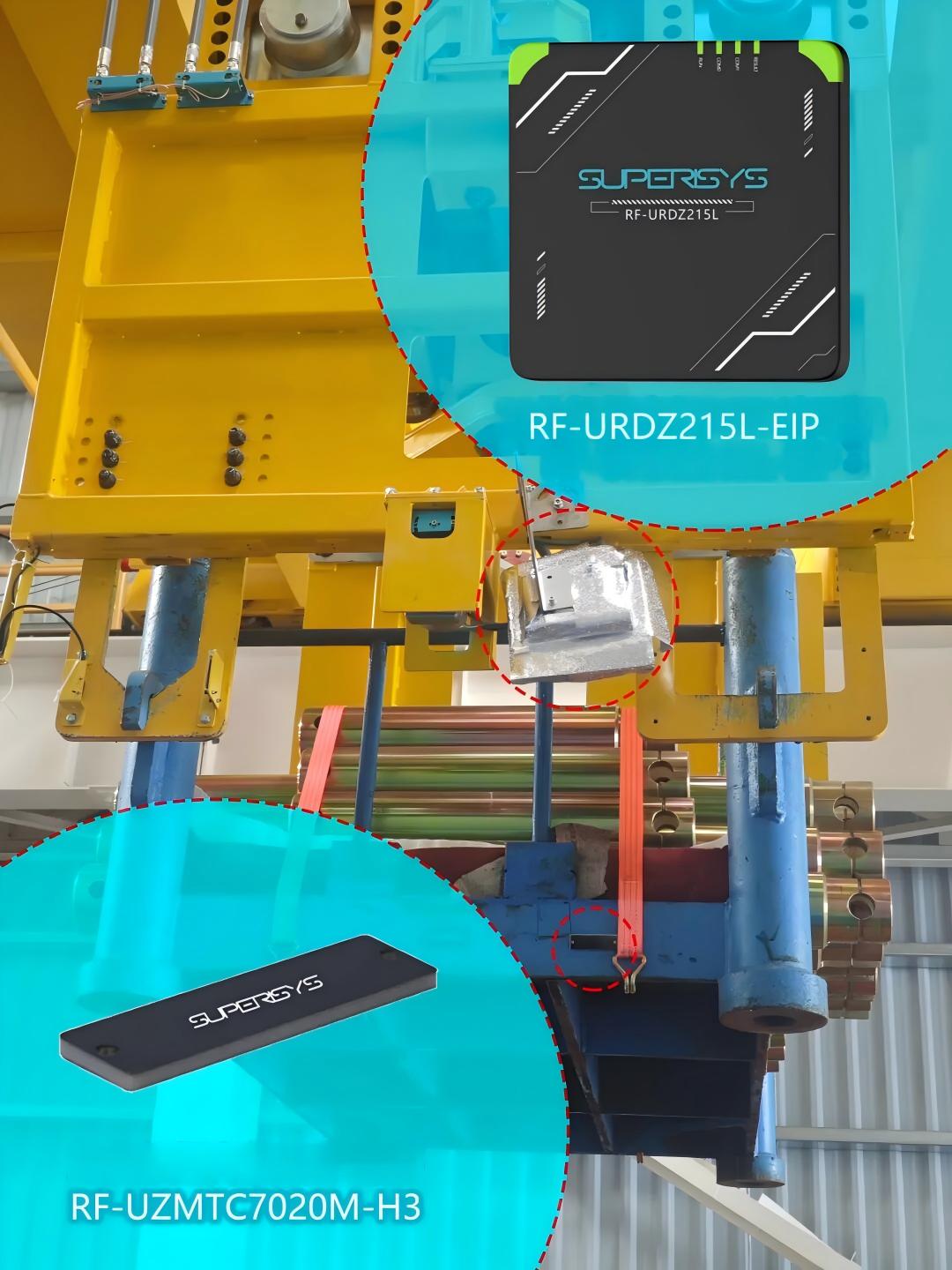

The system uses the RF-URDZ215L-EIP as the core identification unit.

Each material frame is equipped with RF-UZMTC7020M-H3, which serves as a unique digital ID for tracking and control.

3. Control & Communication Layer

• Industrial Ethernet communication (EtherNet/IP / Modbus TCP)

• PLC-based task scheduling

• Real-time data exchange with upper-level systems

Workflow: Fully Automated Closed-Loop System

The system enables a deterministic automation flow:

1. Each material rack is bound with a unique RFID identity

2. Gantry robot moves to the target position

3. RFID reader is activated in a controlled read window

4. Tag ID is captured and transmitted to control system

5. System assigns storage or transport task

6. Robot executes precise handling and positioning

This enables fully automated material flow without manual intervention.

Key Engineering Challenge: UHF Cross-Reading

In metal-intensive environments, UHF RFID systems are highly affected by:

• Signal reflection from metal structures

• Overlapping read zones

• Excessive RF field coverage

• Multiple tag presence in close proximity

Therefore, cross-reading is not a device-level issue, but a system-level design challenge.

Cross-Reading Control Strategy

This solution applies a multi-layer engineering approach:

1. Spatial Read Zone Control

Directional antennas are used to strictly confine the read area to a single material frame position.

2. RF Power Optimization

Transmission power is adjusted to ensure only the target zone is covered, preventing unintended tag activation.

3. Time-Gated Reading

RFID reading is only enabled when the robot reaches a defined position and is stationary.

This ensures consistent and repeatable read conditions.

Key Advantages of the Solution

• No warehouse structural modification required

• Fast deployment using ground rail installation only

• Fully automated material handling process

• Stable RFID identification in metal-heavy environments

• Seamless integration with industrial control systems

• Modular architecture for scalable deployment

Conclusion

By integrating the RF-URDZ215L-EIP into a heavy-duty gantry robot system, RFID is transformed from a simple identification tool into a real-time decision-making layer for industrial automation.

The system demonstrates that reliable UHF RFID performance in complex environments depends on:

spatial design + RF control + system-level logic integration

rather than hardware alone.
