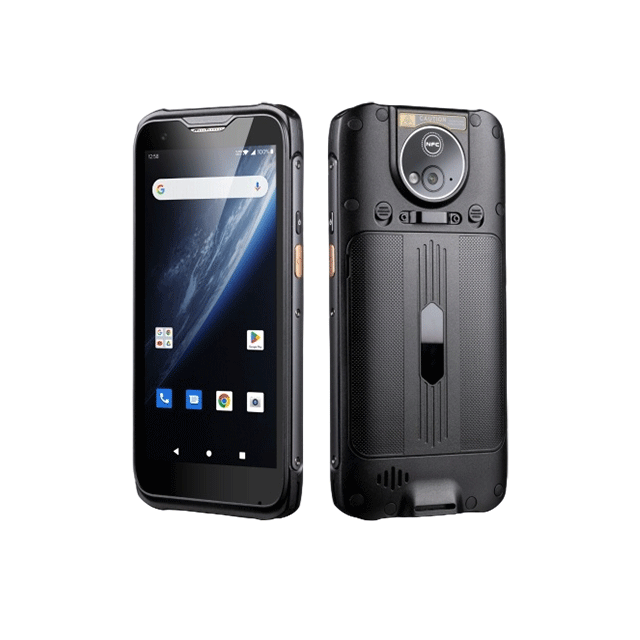

RF-HH series handheld device is an extremely powerful high-performance industrial-grade Android handheld terminal with one-dimensional/two-dimensional barcode scanning, Bluetooth communication, power infrared communication and other functions; can be used for product traceability , production management and other industrial application fields, and can also be applied to water, electricity and gas meter reading and measurement, data collection and operation, on-site service, data collection and recording in the power industry.
HF handheld rfid reader adopts up to eight-core CPU, with main frequency up to 2.0GHz, strong performance, Android12.0 system, large-capacity memory, 5.5-inch high-definition LCD screen, and supports 4G network, 2.4G/5G dual-band WiFi and Bluetooth 5.0;
It adopts up to eight-core CPU, with main frequency up to 2.0GHz, strong performance, Android12.0 system, large-capacity memory, 5.5-inch high-definition LCD screen, and supports 4G network, 2.4G/5G dual-band WiFi and Bluetooth 5.0;
Industry's advanced barcode engine, enjoy high-quality data collection, support 13.56MHz high-frequency RFID, support IS015693 and IS014443, support one-dimensional and two-dimensional barcode scanning, 8-megapixel camera;
Full interface
Equipped with TypeC communication interface, support TF card, PSAM card power grid security encryption card;
Adopting IP65 military three-proof level, outdoor operation is stress-free
IP65 industrial standard, with excellent waterproof and dustproof performance and 1.5-meter drop protection
| product model | RF-HH160 |
| operating system | Android 12.0 |
Size | 160*75*16.4mm |
| Weight | 288(include battery) |
| Touch screen size | 5.5" |
| Screen resolution | 1440*720 |
| Touch screen | Support multi-touch, support gloves or wet hands operation |
| Front camera | 5 megapixels |
| Rear camera | 13 million pixels, flash support |
| Built-in speaker | 2 microphones, 1 for noise cancellation, on the back; 1 speaker; earpiece |
| Battery type | Removable polymer lithium-ion battery |
| Interface type | 5000mAh |
| CPU | Octa-core |
| CPU Speed | 2.0GHz |
| RAM+ROM | 3GB+32GB OR 4GB+64GB |
| Wifi | 802.11a/b/g/n/ac, frequency 2.4G/5G, 5G PA |
| Bluetooth | BT5.0(BLE) |
| 2G/3G/4G | 2G:GSM 3G:WCDMA TD-SCDMA 4G: FDD-LTE TDD-LTE |
| Position | Integrated GPS, BeiDou, GLONASS, Galileo, AGPS |
| Scan code function (optional) | 1D::UPC/EAN,Code128,Code39,Code93,Code11,Interleaved 2of 5, Discrete 2 of 5,Chinese 2 of5, Codabar, MSl, RSS 2D:PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet,US,Planet, UK Postal,Australian Postal, Japan Postal, Dutch Postal (KIX). |
| HF RFID | 13.56Mhz, support 14443A/B;15693 protocol, effective recognition distance 2-4cm |
| High of Drop | All six sides can withstand multiple drops from a height of 1.5 meters onto concrete floors |
| Working temp. | -20-50℃ |
| Memory Temp. | -40-70℃ |
| Humidity | 5%RH-95%RH(no condensation) |
RF-HH series handheld device is an extremely powerful high-performance industrial-grade Android handheld terminal with one-dimensional/two-dimensional barcode scanning, Bluetooth communication, power infrared communication and other functions; can be used for product traceability , production management and other industrial application fields, and can also be applied to water, electricity and gas meter reading and measurement, data collection and operation, on-site service, data collection and recording in the power industry.
HF handheld rfid reader adopts up to eight-core CPU, with main frequency up to 2.0GHz, strong performance, Android12.0 system, large-capacity memory, 5.5-inch high-definition LCD screen, and supports 4G network, 2.4G/5G dual-band WiFi and Bluetooth 5.0;
It adopts up to eight-core CPU, with main frequency up to 2.0GHz, strong performance, Android12.0 system, large-capacity memory, 5.5-inch high-definition LCD screen, and supports 4G network, 2.4G/5G dual-band WiFi and Bluetooth 5.0;
Industry's advanced barcode engine, enjoy high-quality data collection, support 13.56MHz high-frequency RFID, support IS015693 and IS014443, support one-dimensional and two-dimensional barcode scanning, 8-megapixel camera;
Full interface
Equipped with TypeC communication interface, support TF card, PSAM card power grid security encryption card;
Adopting IP65 military three-proof level, outdoor operation is stress-free
IP65 industrial standard, with excellent waterproof and dustproof performance and 1.5-meter drop protection
| product model | RF-HH160 |
| operating system | Android 12.0 |
Size | 160*75*16.4mm |
| Weight | 288(include battery) |
| Touch screen size | 5.5" |
| Screen resolution | 1440*720 |
| Touch screen | Support multi-touch, support gloves or wet hands operation |
| Front camera | 5 megapixels |
| Rear camera | 13 million pixels, flash support |
| Built-in speaker | 2 microphones, 1 for noise cancellation, on the back; 1 speaker; earpiece |
| Battery type | Removable polymer lithium-ion battery |
| Interface type | 5000mAh |
| CPU | Octa-core |
| CPU Speed | 2.0GHz |
| RAM+ROM | 3GB+32GB OR 4GB+64GB |
| Wifi | 802.11a/b/g/n/ac, frequency 2.4G/5G, 5G PA |
| Bluetooth | BT5.0(BLE) |
| 2G/3G/4G | 2G:GSM 3G:WCDMA TD-SCDMA 4G: FDD-LTE TDD-LTE |
| Position | Integrated GPS, BeiDou, GLONASS, Galileo, AGPS |
| Scan code function (optional) | 1D::UPC/EAN,Code128,Code39,Code93,Code11,Interleaved 2of 5, Discrete 2 of 5,Chinese 2 of5, Codabar, MSl, RSS 2D:PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet,US,Planet, UK Postal,Australian Postal, Japan Postal, Dutch Postal (KIX). |
| HF RFID | 13.56Mhz, support 14443A/B;15693 protocol, effective recognition distance 2-4cm |
| High of Drop | All six sides can withstand multiple drops from a height of 1.5 meters onto concrete floors |
| Working temp. | -20-50℃ |
| Memory Temp. | -40-70℃ |
| Humidity | 5%RH-95%RH(no condensation) |
