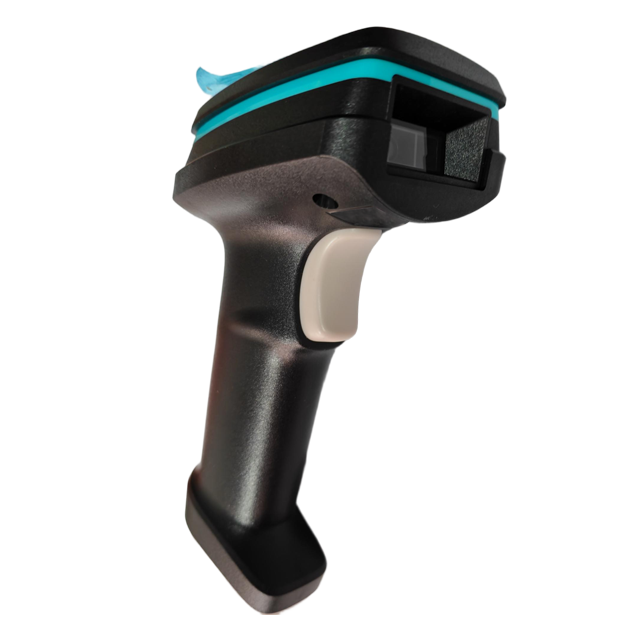

Adopt 1280*800 high-resolution, high-frame-rate image sensor.
It is ergonomically designed, comfortable to operate, and not easy to get tired after long-term operation. It is designed to meet the requirements of industrial environment, and is more durable.
It has multiple communication options, and can quickly replace the data cable. It is plug-and-play and more convenient to use.
IP65 protection level.
| Model | CR-HC9520XD | ||
| light source | LED White light | ||
| Aiming light | Green Dot | ||
| Pixel | 1280*800 | ||
| Working Cuttent | 180mA±5%（Standby）450mA±5%（Max） | ||
| power loss | ＜3W | ||
| frame rate | 120FPS/S | ||
| Communication Interface | RS232C，USB(VirtualCOM，keyboard) | ||
| 2D barcode | Aztec Code; Data Matrix; Maxi Code; QR Code; HAN XIN; Micro QR Code | ||
| Stack Code： | GS1 DataBar Expanded Stacked; GS1 DataBar,Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417 | ||
| Current | Operating (nominal): < 280 mA Standby/idle (nominal): < 130 mA | ||
| Input voltage | 5 VDC (+/- 10%)/500mA | ||
| ESD protection | Contact discharge 8 kV; air discharge 15KV | ||
| Identification Angle | Horizontal, 50°,Vertical 38° | ||
Working temp. | -20-- +60℃ | ||
| Memory temp | -40-- +70℃ | ||
Humidity | 5%-95% | ||
Protection grade | IP65 | ||
| RS-232; USB HID; USB COM;HID POS Choose according to customer needs | |||
Adopt 1280*800 high-resolution, high-frame-rate image sensor.
It is ergonomically designed, comfortable to operate, and not easy to get tired after long-term operation. It is designed to meet the requirements of industrial environment, and is more durable.
It has multiple communication options, and can quickly replace the data cable. It is plug-and-play and more convenient to use.
IP65 protection level.
| Model | CR-HC9520XD | ||
| light source | LED White light | ||
| Aiming light | Green Dot | ||
| Pixel | 1280*800 | ||
| Working Cuttent | 180mA±5%（Standby）450mA±5%（Max） | ||
| power loss | ＜3W | ||
| frame rate | 120FPS/S | ||
| Communication Interface | RS232C，USB(VirtualCOM，keyboard) | ||
| 2D barcode | Aztec Code; Data Matrix; Maxi Code; QR Code; HAN XIN; Micro QR Code | ||
| Stack Code： | GS1 DataBar Expanded Stacked; GS1 DataBar,Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417 | ||
| Current | Operating (nominal): < 280 mA Standby/idle (nominal): < 130 mA | ||
| Input voltage | 5 VDC (+/- 10%)/500mA | ||
| ESD protection | Contact discharge 8 kV; air discharge 15KV | ||
| Identification Angle | Horizontal, 50°,Vertical 38° | ||
Working temp. | -20-- +60℃ | ||
| Memory temp | -40-- +70℃ | ||
Humidity | 5%-95% | ||
Protection grade | IP65 | ||
| RS-232; USB HID; USB COM;HID POS Choose according to customer needs | |||
