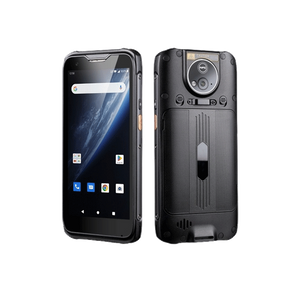

RF-HH series handheld device is an extremely powerful high-performance industrial-grade Android handheld terminal with one-dimensional/two-dimensional barcode scanning, Bluetooth communication, power infrared communication and other functions; can be used for product traceability , production management and other industrial application fields, and can also be applied to water, electricity and gas meter reading and measurement, data collection and operation, on-site service, data collection and recording in the power industry.
It adopts up to eight-core CPU, with main frequency up to 2.0GHz, strong performance, Android12.0 system, large-capacity memory, 5.5-inch high-definition LCD screen, and supports 4G network, 2.4G/5G dual-band WiFi and Bluetooth 5.0;
Industry's advanced barcode engine, enjoy high-quality data collection, support 13.56MHz high-frequency RFID, support IS015693 and IS014443, support one-dimensional and two-dimensional barcode scanning, 8-megapixel camera;
Full interface
Equipped with TypeC communication interface, support TF card, PSAM card power grid security encryption card;
Adopting IP65 military three-proof level, outdoor operation is stress-free
IP65 industrial standard, with excellent waterproof and dustproof performance and 1.5-meter drop protection

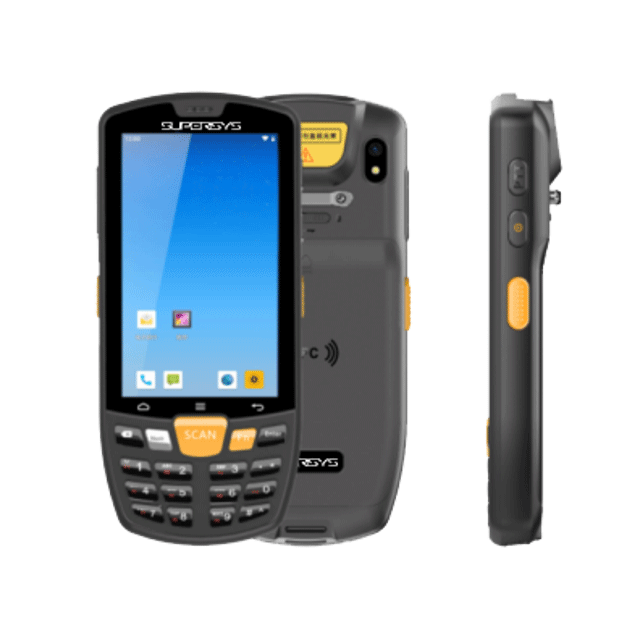

| Product model | RF-HH158 |
| operating system | Android 12.0 |
Size | 157.6*73.7*29mm |
| Weight | 292g(include battery) |
| Touch screen size | 4" |
| Screen resolution | 480*800 |
| Touch screen | Support multi-touch |
| Front camera | 5 megapixels |
| Rear camera | 8MP/13MP, auto focus with flash |
| Built-in speaker | Built-in 8Ω/0.8W waterproof speaker x1 |
| Battery type | Removable polymer lithium-ion battery |
| Interface type | 3.7V/5000mAh |
| CPU | MTK6762-Quad Core |
| CPU Speed | 2.0GHz |
| RAM+ROM | 2GB+16GB OR 3GB+32GB |
| Wifi | 802.11a/b/g/n/ac, frequency 2.4G/5G, 5G PA |
| Bluetooth | BT5.0(BLE) |
| NFC | Support ISO/IEC 14443A protocol, card reading distance: 1-3cm |
| 2G/3G/4G | 2G:GSM 3G:WCDMA TD-SCDMA 4G: FDD-LTE TDD-LTE |
| Position | Integrated GPS, BeiDou, GLONASS |
| Scan code function (optional) | Honeywell HS7&zebra se4710&NLS-CM60&NLS-N1 1D: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5. Discrete 2 of 5, Chinese 2 of5, Codabar, MSl, RSS, etc. 2D: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse MaxicodeQR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse" |
| LF RFID | Support 125K and 134.2K; effective recognition distance 3-5cm |
| HF RFID | 13.56Mhz, support 14443A/B; 15693 protocol, effective identification distance 3-5cm |
| High of Drop | All six sides can withstand multiple drops from a height of 1.5 meters onto concrete floors |
| Working temp. | -10-50℃ |
| Memory Temp. | -20-60℃ |
| Humidity | 5%RH-95%RH(no condensation) |
RF-HH series handheld device is an extremely powerful high-performance industrial-grade Android handheld terminal with one-dimensional/two-dimensional barcode scanning, Bluetooth communication, power infrared communication and other functions; can be used for product traceability , production management and other industrial application fields, and can also be applied to water, electricity and gas meter reading and measurement, data collection and operation, on-site service, data collection and recording in the power industry.
It adopts up to eight-core CPU, with main frequency up to 2.0GHz, strong performance, Android12.0 system, large-capacity memory, 5.5-inch high-definition LCD screen, and supports 4G network, 2.4G/5G dual-band WiFi and Bluetooth 5.0;
Industry's advanced barcode engine, enjoy high-quality data collection, support 13.56MHz high-frequency RFID, support IS015693 and IS014443, support one-dimensional and two-dimensional barcode scanning, 8-megapixel camera;
Full interface
Equipped with TypeC communication interface, support TF card, PSAM card power grid security encryption card;
Adopting IP65 military three-proof level, outdoor operation is stress-free
IP65 industrial standard, with excellent waterproof and dustproof performance and 1.5-meter drop protection
| Product model | RF-HH158 |
| operating system | Android 12.0 |
Size | 157.6*73.7*29mm |
| Weight | 292g(include battery) |
| Touch screen size | 4" |
| Screen resolution | 480*800 |
| Touch screen | Support multi-touch |
| Front camera | 5 megapixels |
| Rear camera | 8MP/13MP, auto focus with flash |
| Built-in speaker | Built-in 8Ω/0.8W waterproof speaker x1 |
| Battery type | Removable polymer lithium-ion battery |
| Interface type | 3.7V/5000mAh |
| CPU | MTK6762-Quad Core |
| CPU Speed | 2.0GHz |
| RAM+ROM | 2GB+16GB OR 3GB+32GB |
| Wifi | 802.11a/b/g/n/ac, frequency 2.4G/5G, 5G PA |
| Bluetooth | BT5.0(BLE) |
| NFC | Support ISO/IEC 14443A protocol, card reading distance: 1-3cm |
| 2G/3G/4G | 2G:GSM 3G:WCDMA TD-SCDMA 4G: FDD-LTE TDD-LTE |
| Position | Integrated GPS, BeiDou, GLONASS |
| Scan code function (optional) | Honeywell HS7&zebra se4710&NLS-CM60&NLS-N1 1D: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5. Discrete 2 of 5, Chinese 2 of5, Codabar, MSl, RSS, etc. 2D: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse MaxicodeQR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse" |
| LF RFID | Support 125K and 134.2K; effective recognition distance 3-5cm |
| HF RFID | 13.56Mhz, support 14443A/B; 15693 protocol, effective identification distance 3-5cm |
| High of Drop | All six sides can withstand multiple drops from a height of 1.5 meters onto concrete floors |
| Working temp. | -10-50℃ |
| Memory Temp. | -20-60℃ |
| Humidity | 5%RH-95%RH(no condensation) |
