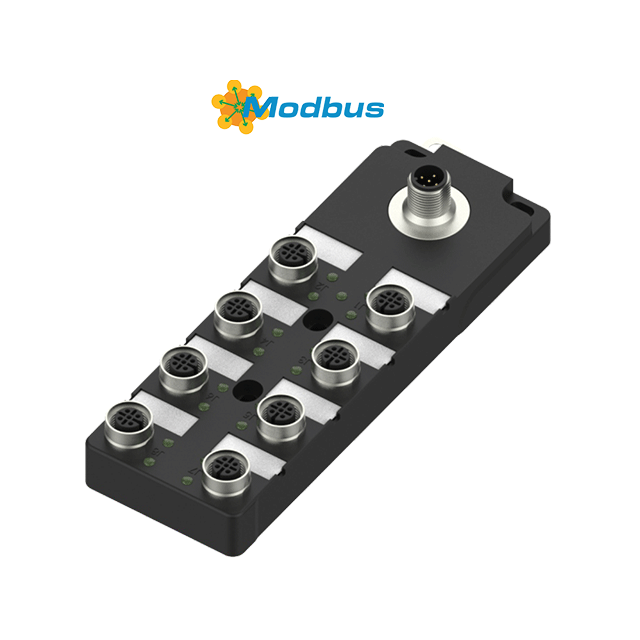

The IO-Link Slave 8-Port 16-Input Module IP67 is a powerful tool for optimizing field signal acquisition. It's more than just a signal "junction box"; it's an intelligent node with digitization, diagnostics, and networking capabilities.
Its value lies in transforming the most tedious and error-prone field wiring work into simple, reliable, and intelligent digital connectivity. It's particularly suitable for scenarios with high sensor density, limited installation space, harsh environments, or moving parts. It's a key component for improving equipment integration, reliability, and maintainability, and a crucial foundation for realizing the concepts of "plug-and-play" and "modular machine design."

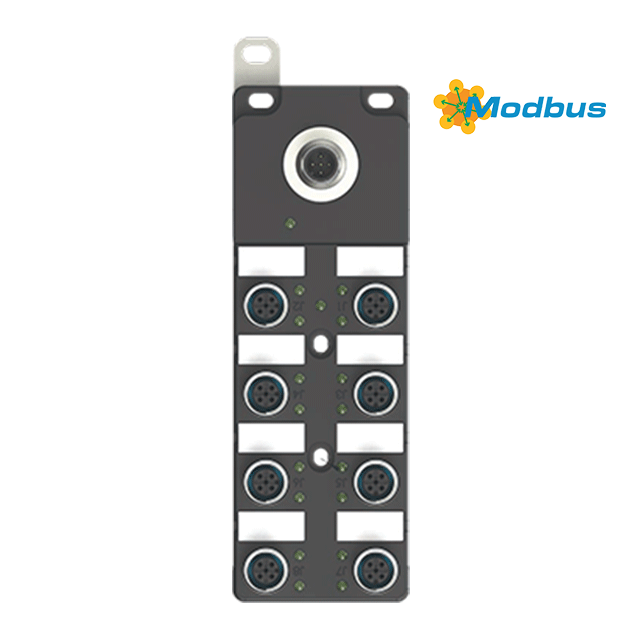

Input capabilities: 8 ports, 16 inputs
High Density: Provides 16 input points within an extremely compact space.
Direct Connectivity: Each M12 port can directly connect to a dual-channel sensor (such as a photoelectric sensor with two independent switch outputs), or connect two single-channel sensors via a hub.
Simplified Wiring: Replaces the complex wiring of the traditional 16 signal lines back to the PLC with a single IO-Link cable (connecting to the master station).
Input Type and Performance
Type: Typically 24V DC digital inputs (DI/PNP), conforming to industry standards.
Diagnostics: Each input should have a status indicator (LED) and be able to detect faults such as short circuits, open circuits, and overloads, and report detailed diagnostic information via the IO-Link protocol.
| Basic Parameter | |||
Shell Material | PA6+GF | ||
| Color | Black | ||
| Product description | IO-LINK Slave module | ||
| IP67 protection class, Epoxy full potting | |||
| I/O connection mode | M12, 5pin hole holder, A code | ||
| Size | 155*53*28.7mm | ||
| Weight | 217g | ||
| Operating tem. | -25℃--70℃ | ||
| Memory Tem. | -40℃--70℃ | ||
| Operating Humidity | 5%-95% | ||
| Memory Humidity | 5%-95% | ||
| Operate pressure | 80Kpa-106Kpa | ||
| I/O port tightening torque | M12:0.5Nm | ||
| Application environment | Conforms to EN-61131 | ||
| Vibration measurement | Conforms to EN-60068-2 | ||
| Impact test | Conforms to EN-60068-27 | ||
| White by drop test | Conforms to EN-60068-32 | ||
| Electromagnetic Compatibility (EMC) | Conforms to EN-61000-4-2,-3,-4 | ||
| Certification | CE, RoHS | ||
| Mounting hole specification | φ4.3mm×4 | ||
| IO-Link Slave parameters | |||
| Type | IACM-DI16P-IOL IACM-DI16PR-IOL IACM-DI16N-IOL IACM-DI16NR-IO | IACM-DO16P-IOL IACM-DO16N-IOL IACM-DO16NR-IOL | |
| lO-Link port number | 1× slave | ||
| lO-Link Process data length | 2 input bytes | ||
| Minimum cycle | 3 ms | ||
| Input. Output quantity | 16 input | ||
| Rated operational voltage | 18--30VDC | ||
| Maximum load current (sensor) | 200mA | - | |
| Maximum load current（actuator） | - | 500mA | |
| Total current UI | ＜1.6A | - | |
| Total current UO | - | ＜2.5A | |
| Indicator Lights | |||
IO Link Run | Green: The communication is down Green flash：Normal communication Red: Communication is interrupted | ||
| PWR | Green: The power supply to the module is Normal Off: The module power supply is not connecte | Green: The power supply to the module is normal Yellow: The auxiliary power supply is not connected | |
| I/O | Green: normal channel signal red: short circuit of port power supply | ||
The IO-Link Slave 8-Port 16-Input Module IP67 is a powerful tool for optimizing field signal acquisition. It's more than just a signal "junction box"; it's an intelligent node with digitization, diagnostics, and networking capabilities.
Its value lies in transforming the most tedious and error-prone field wiring work into simple, reliable, and intelligent digital connectivity. It's particularly suitable for scenarios with high sensor density, limited installation space, harsh environments, or moving parts. It's a key component for improving equipment integration, reliability, and maintainability, and a crucial foundation for realizing the concepts of "plug-and-play" and "modular machine design."
Input capabilities: 8 ports, 16 inputs
High Density: Provides 16 input points within an extremely compact space.
Direct Connectivity: Each M12 port can directly connect to a dual-channel sensor (such as a photoelectric sensor with two independent switch outputs), or connect two single-channel sensors via a hub.
Simplified Wiring: Replaces the complex wiring of the traditional 16 signal lines back to the PLC with a single IO-Link cable (connecting to the master station).
Input Type and Performance
Type: Typically 24V DC digital inputs (DI/PNP), conforming to industry standards.
Diagnostics: Each input should have a status indicator (LED) and be able to detect faults such as short circuits, open circuits, and overloads, and report detailed diagnostic information via the IO-Link protocol.
| Basic Parameter | |||
Shell Material | PA6+GF | ||
| Color | Black | ||
| Product description | IO-LINK Slave module | ||
| IP67 protection class, Epoxy full potting | |||
| I/O connection mode | M12, 5pin hole holder, A code | ||
| Size | 155*53*28.7mm | ||
| Weight | 217g | ||
| Operating tem. | -25℃--70℃ | ||
| Memory Tem. | -40℃--70℃ | ||
| Operating Humidity | 5%-95% | ||
| Memory Humidity | 5%-95% | ||
| Operate pressure | 80Kpa-106Kpa | ||
| I/O port tightening torque | M12:0.5Nm | ||
| Application environment | Conforms to EN-61131 | ||
| Vibration measurement | Conforms to EN-60068-2 | ||
| Impact test | Conforms to EN-60068-27 | ||
| White by drop test | Conforms to EN-60068-32 | ||
| Electromagnetic Compatibility (EMC) | Conforms to EN-61000-4-2,-3,-4 | ||
| Certification | CE, RoHS | ||
| Mounting hole specification | φ4.3mm×4 | ||
| IO-Link Slave parameters | |||
| Type | IACM-DI16P-IOL IACM-DI16PR-IOL IACM-DI16N-IOL IACM-DI16NR-IO | IACM-DO16P-IOL IACM-DO16N-IOL IACM-DO16NR-IOL | |
| lO-Link port number | 1× slave | ||
| lO-Link Process data length | 2 input bytes | ||
| Minimum cycle | 3 ms | ||
| Input. Output quantity | 16 input | ||
| Rated operational voltage | 18--30VDC | ||
| Maximum load current (sensor) | 200mA | - | |
| Maximum load current（actuator） | - | 500mA | |
| Total current UI | ＜1.6A | - | |
| Total current UO | - | ＜2.5A | |
| Indicator Lights | |||
IO Link Run | Green: The communication is down Green flash：Normal communication Red: Communication is interrupted | ||
| PWR | Green: The power supply to the module is Normal Off: The module power supply is not connecte | Green: The power supply to the module is normal Yellow: The auxiliary power supply is not connected | |
| I/O | Green: normal channel signal red: short circuit of port power supply | ||
