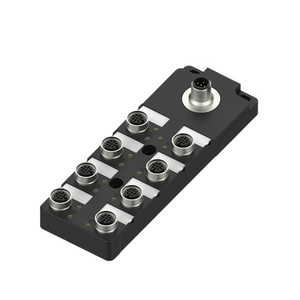

IACM-DO16P-IOL-V
Superisys
| Availability: | |
|---|---|
| Quantity: | |
Powers connected field devices: Can directly power sensors connected to their input points (such as photoelectric switches, proximity switches) and small actuators controlled by their output points (such as indicator lights, pneumatic valve coils).
Simplified cabling: Eliminates the need to run separate power cables from the remote control cabinet for each field device. Simply connect the module's main power supply, and the field devices can obtain power locally, significantly reducing the number and complexity of cables.
Power Management: Typically includes overload and short-circuit protection and can report power failures as diagnostic information.
| Model | IACM-DO16P-IOL- IACM-DO16P-IOL-VRV | IACM-DIO16P-IOL-V IACM-DIO16P-IOL-VR | ||
| Product description | IO-LINK slave module | |||
| 8 x ports | ||||
| IP67 protection rating | ||||
| I/O connection mode | M12, 5pin socket, code A | |||
| IO-Link slave station parameters | ||||
| Number of IO-Link ports | 1x Equipment | |||
| lO-Link Processes the data length | 2 Output bytes | Two input bytes, two output bytes | ||
| Minimum cycle | 3 ms | |||
| Input and output parameters | ||||
| Quantity of input and output | 16-Channel output | 16-Way Adaptive | ||
| Rated operational voltage | 18…30V DC | |||
| Maximum load Current (Sensor) | - | 200 mA | ||
| Maximum load current (sensor) | 2A | |||
| Total current UI | - | <1.6A | ||
| Total current UO | <12A | |||
| Module indicator | ||||
| IO-LINK RUN | Green: The communication is down | |||
| Blinking green: The communication is normal | ||||
| Red: Communication is interrupted | ||||
| PWR | Green: The power supply to the module is normal | |||
| Off: The power supply of the module is not connected | ||||
| I/O | Green: The channel signal is normal | |||
| Red: The port is faulty | ||||
| AUX | Green: The auxiliary power supply is normal | |||
| Red: Auxiliary power supply is reversed | ||||
| Off: The auxiliary power supply is not connected | ||||
| Basic parameters | Shell material | PA6+GF | ||
| Shell color | Black | |||
| level of protection | IP67, epoxy full potting | |||
| Boundary dimension | 155mm×53mm×28.7mm | |||
| Weight | 227g | |||
| Operating temperature | -25℃…70℃ | |||
| Storage/transport temperature | -40℃…85℃ | |||
| Operation humidity | 5%…95% | |||
| Storage/transport humidity | 5%…95% | |||
| Operating atmosphere | 80KPa…106KPa | |||
| Preserve/transport atmospheric pressure | 80KPa…106KPa | |||
| I/O port tightening torque | M12:0.5Nm | |||
| Application environment | Conforms to EN-61131 | |||
| Vibration measurement | Comply with IEC60068-2 | |||
| Impact test | Comply with IEC60068-27 | |||
| Free drop test | Comply with IEC60068-32 | |||
| Electromagnetic Compatibility (EMC) | Comply with IEC61000-4-2,-3,-4 | |||
| Authentication | CE,RoHS | |||
| Mounting hole specification | ∅4.3mmx4 | |||
Powers connected field devices: Can directly power sensors connected to their input points (such as photoelectric switches, proximity switches) and small actuators controlled by their output points (such as indicator lights, pneumatic valve coils).
Simplified cabling: Eliminates the need to run separate power cables from the remote control cabinet for each field device. Simply connect the module's main power supply, and the field devices can obtain power locally, significantly reducing the number and complexity of cables.
Power Management: Typically includes overload and short-circuit protection and can report power failures as diagnostic information.
| Model | IACM-DO16P-IOL- IACM-DO16P-IOL-VRV | IACM-DIO16P-IOL-V IACM-DIO16P-IOL-VR | ||
| Product description | IO-LINK slave module | |||
| 8 x ports | ||||
| IP67 protection rating | ||||
| I/O connection mode | M12, 5pin socket, code A | |||
| IO-Link slave station parameters | ||||
| Number of IO-Link ports | 1x Equipment | |||
| lO-Link Processes the data length | 2 Output bytes | Two input bytes, two output bytes | ||
| Minimum cycle | 3 ms | |||
| Input and output parameters | ||||
| Quantity of input and output | 16-Channel output | 16-Way Adaptive | ||
| Rated operational voltage | 18…30V DC | |||
| Maximum load Current (Sensor) | - | 200 mA | ||
| Maximum load current (sensor) | 2A | |||
| Total current UI | - | <1.6A | ||
| Total current UO | <12A | |||
| Module indicator | ||||
| IO-LINK RUN | Green: The communication is down | |||
| Blinking green: The communication is normal | ||||
| Red: Communication is interrupted | ||||
| PWR | Green: The power supply to the module is normal | |||
| Off: The power supply of the module is not connected | ||||
| I/O | Green: The channel signal is normal | |||
| Red: The port is faulty | ||||
| AUX | Green: The auxiliary power supply is normal | |||
| Red: Auxiliary power supply is reversed | ||||
| Off: The auxiliary power supply is not connected | ||||
| Basic parameters | Shell material | PA6+GF | ||
| Shell color | Black | |||
| level of protection | IP67, epoxy full potting | |||
| Boundary dimension | 155mm×53mm×28.7mm | |||
| Weight | 227g | |||
| Operating temperature | -25℃…70℃ | |||
| Storage/transport temperature | -40℃…85℃ | |||
| Operation humidity | 5%…95% | |||
| Storage/transport humidity | 5%…95% | |||
| Operating atmosphere | 80KPa…106KPa | |||
| Preserve/transport atmospheric pressure | 80KPa…106KPa | |||
| I/O port tightening torque | M12:0.5Nm | |||
| Application environment | Conforms to EN-61131 | |||
| Vibration measurement | Comply with IEC60068-2 | |||
| Impact test | Comply with IEC60068-27 | |||
| Free drop test | Comply with IEC60068-32 | |||
| Electromagnetic Compatibility (EMC) | Comply with IEC61000-4-2,-3,-4 | |||
| Authentication | CE,RoHS | |||
| Mounting hole specification | ∅4.3mmx4 | |||
Maximizes Simplified Wiring: Power distribution, signal acquisition, and control execution are integrated into a single point on-site, replacing dozens of scattered cables with a single communication line and a single main power line.
Reduces Installation and Commissioning Time: Plug-and-play connectors significantly reduce wiring time and error rates. Modular design allows machine units to be pre-assembled and tested.
Enhanced Reliability and Maintainability: IP67 protection ensures stability in harsh environments. Clear channel-level diagnostics enable extremely rapid fault location, and modules can be quickly replaced as a whole.
Enhanced Design Flexibility: Machine design is no longer limited by the location of the control cabinet. I/O points can be placed where they are most needed.
Maximizes Simplified Wiring: Power distribution, signal acquisition, and control execution are integrated into a single point on-site, replacing dozens of scattered cables with a single communication line and a single main power line.
Reduces Installation and Commissioning Time: Plug-and-play connectors significantly reduce wiring time and error rates. Modular design allows machine units to be pre-assembled and tested.
Enhanced Reliability and Maintainability: IP67 protection ensures stability in harsh environments. Clear channel-level diagnostics enable extremely rapid fault location, and modules can be quickly replaced as a whole.
