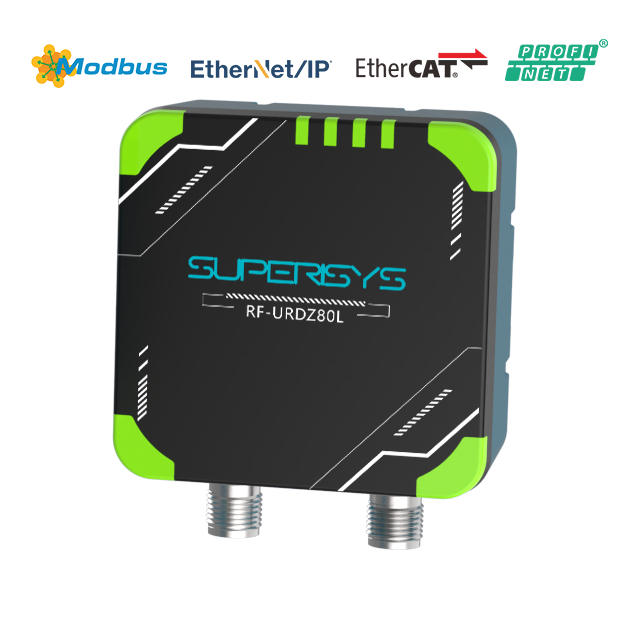

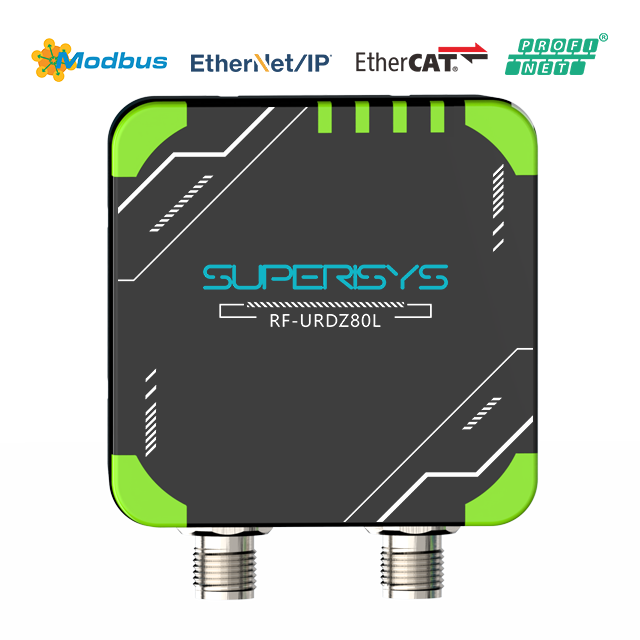

This compact all-in-one UHF RFID reader features a built-in antenna and is designed for reliable short-range identification in industrial environments. With a reading distance of up to 1m, it provides fast and stable tag detection, making it ideal for applications that require precise and controlled reading zones.

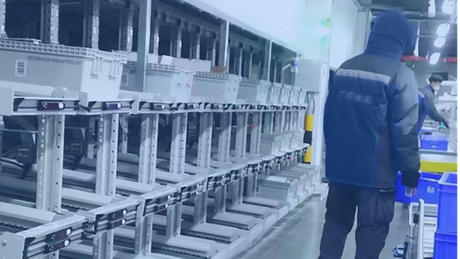

This reader is particularly suitable for conveyor belt identification, production line tracking, and industrial automation applications where durability, accuracy, and space efficiency are critical.
Key Advantages
Compact All-in-One Design – integrated UHF RFID reader with built-in antenna
Reading Distance up to 20 cm – optimized for precise short-range identification
Industrial Protection – rugged IP67-rated housing for harsh environments
Space-Saving Size – ideal for installation in conveyor systems and automated equipment
Reliable Performance – stable and fast tag detection for industrial applications.
Technical Patameters
Model
RF-URDZ80L-R4
RF-URDZ80L-TP
RF-URDZ80L-PN
RF-URDZ80L-EIP
RF-URDZ80L-ECT
Wireless protocol
ISO 18000-6c(Class1 Gen2)
Working frequency
CN：920-925MHz（SRRC） US: 902-928MHz (FCC Part 15)
EU: 868-868MHz
Output power
5-27dBm adjust(Stepping 1dbm)
Read distance
0-1m
Mouted type
M12 5P Acode male
M12 8P Acode male
M12 8P Acode male+M12 4P Dcode female
Communication interface
RS485
Ethernet(Dual network ports)
Communication protocol
Modbus RTU
Modbus TCP
Profinet
Ethernet/IP
EtherCAT
Voltage
9-30V DC
Average current
< 0.3A (24V DC)
Indicator light
4* status LED Light+4 tag indicator led
Size
80*80*38mm
Fixture type
4*M6 screw hole
Canning material
Base: Aluminum alloy Front face: PC+ABS
Shell color
Black
Operating temperature
-25 ~ 60℃
Storage temperature
-40 ~ 85℃
humidity
5% ~ 95%RH(No condensation)
Waterproof and dustproof grade
IP65,EN60529
Vibration resistance
2mm(f=5…29.5Hz) ,EN60068-2-6
7gn(f=29.5…150Hz) ,EN60068-2-6
Certificate
FCC , CE,SRRC,ROHS
Product Description
This compact all-in-one UHF RFID reader features a built-in antenna and is designed for reliable short-range identification in industrial environments. With a reading distance of up to 1m, it provides fast and stable tag detection, making it ideal for applications that require precise and controlled reading zones.
This reader is particularly suitable for conveyor belt identification, production line tracking, and industrial automation applications where durability, accuracy, and space efficiency are critical.
Key Advantages
Compact All-in-One Design – integrated UHF RFID reader with built-in antenna
Reading Distance up to 20 cm – optimized for precise short-range identification
Industrial Protection – rugged IP67-rated housing for harsh environments
Space-Saving Size – ideal for installation in conveyor systems and automated equipment
Reliable Performance – stable and fast tag detection for industrial applications.
