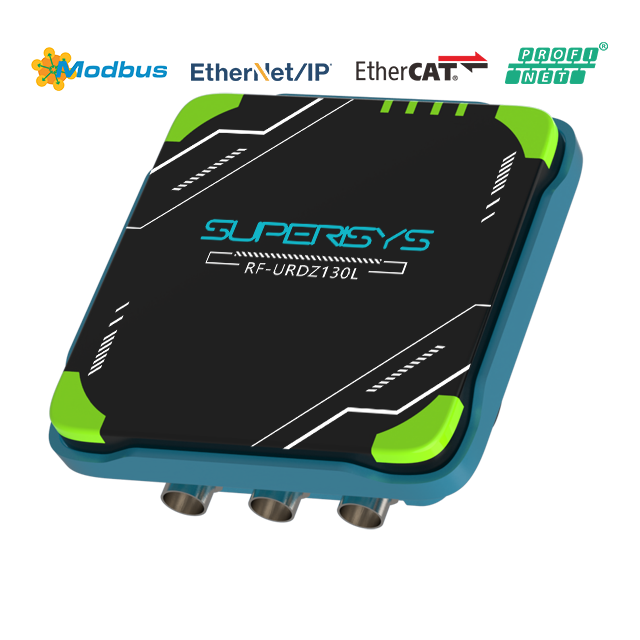

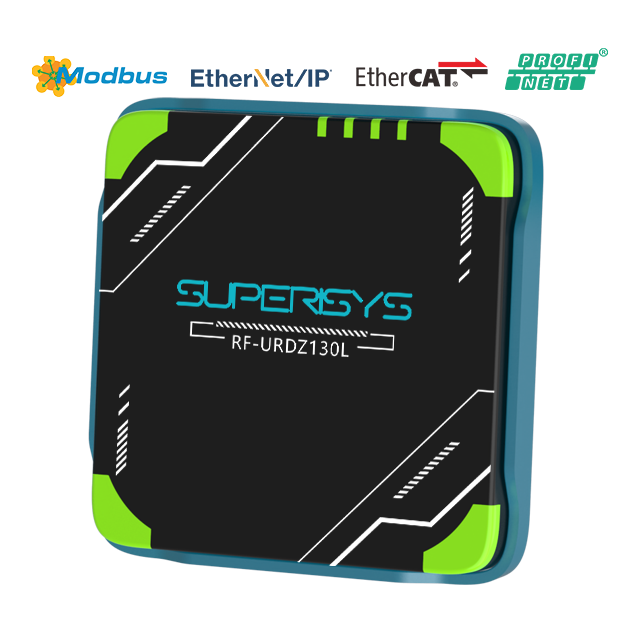

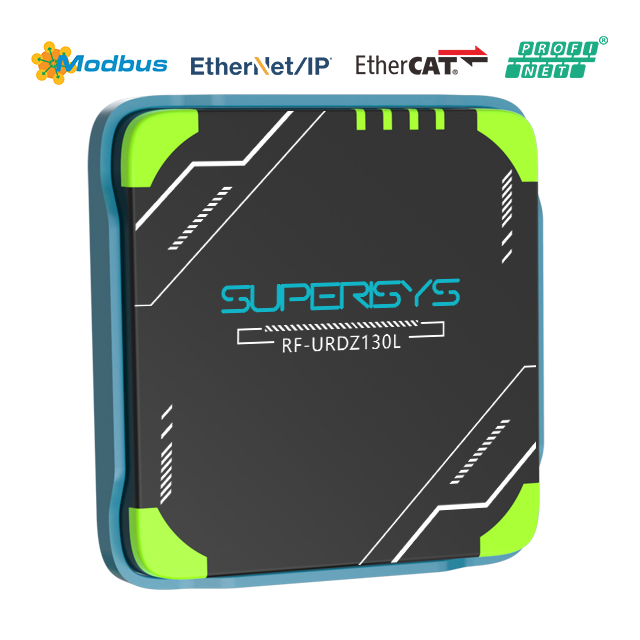

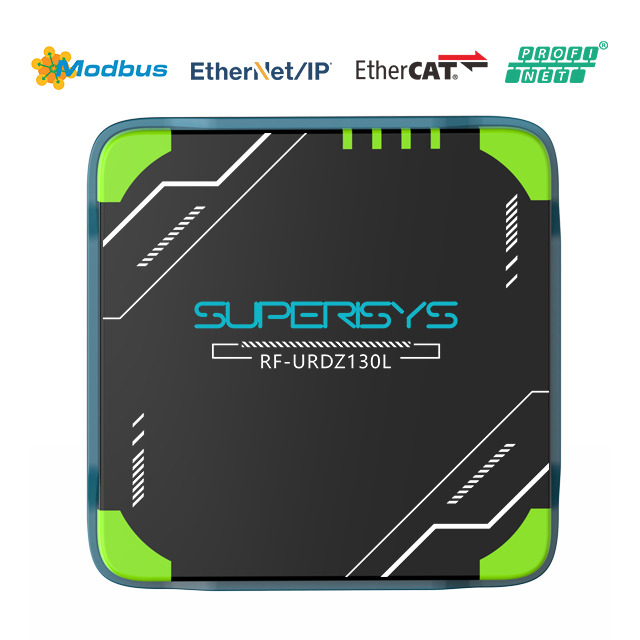

RF-URDZ130L-R4/TP/PN/EIP/ECT
Superisys
| Availability: | |
|---|---|
| Quantity: | |
This industrial UHF RFID reader is designed for reliable identification and tracking in conveyor systems and automated production lines. Featuring an all-in-one integrated design with a built-in antenna, the reader provides a stable reading distance of 0–3 meters, making it ideal for mid-range industrial RFID applications.
With its compact structure and IP65 protection rating, this UHF RFID reader delivers stable performance in harsh environments such as manufacturing plants, warehouses, and automated material handling systems.
The device is widely used as a UHF RFID reader for conveyor systems, enabling real-time identification of products, pallets, trays, and carriers moving along industrial production lines.
0–3 m Reading Range
Reliable mid-range identification for industrial RFID applications.
Integrated UHF RFID Reader with Built-in Antenna with 5dbi
All-in-one design simplifies installation and reduces system complexity.
Industrial IP65 Protection
Dustproof and water-resistant housing for harsh industrial environments.
Compact Industrial Design
Easy integration into conveyor systems, machinery, and automated equipment.
Fast Multi-Tag Identification
Supports efficient RFID tracking in production and logistics processes.
Track products and carriers automatically as they move through conveyor lines.
Enable real-time visibility of items across manufacturing processes.
Use RFID data to guide automated routing and sorting operations.
Identify pallets, trays, and containers in material handling systems.
Support full lifecycle product tracking from assembly to packaging.
| Model | RF-URDZ130L -R4 | RF-URDZ130L-TP | RF-URDZ130L -PN | RF-URDZ130L-EIP | RF-URDZ130L-ECT |
| Wireless protocol | ISO 18000-6c(Class1 Gen2) | ||||
| Working frequency | CN：920-925MHz（SRRC） EU: 868-868MHz | ||||
| Output power | 5-30dBm adjust(Stepping 1dbm) | ||||
| Read distance | 0-3m | ||||
| Mouted type | M12 5P Acode male | M12 8P Acode male | M12 8P Acode male+M12 4P Dcode female | ||
| Communication interface | RS485 | Ethernet(Dual network ports) | |||
| Communication protocol | Modbus RTU | Modbus TCP | Profinet | Ethernet/IP | EtherCAT |
| Voltage | 9-30V DC | ||||
| Average current | < 0.3A (24V DC) | ||||
| Indicator light | 4* status LED Light+4 tag indicator led | ||||
| Size | 130*130*50mm | ||||
| Fixture type | 4*M6 screw hole | ||||
| Canning material | Base: Aluminum alloy Front face: PC+ABS | ||||
| Shell color | Black+blue | ||||
| Operating temperature | -25 ~ 60℃ | ||||
| Storage temperature | -40 ~ 85℃ | ||||
| humidity | 5% ~ 95%RH(No condensation) | ||||
| Waterproof and dustproof grade | IP65,EN60529 | ||||
| Vibration resistance | 2mm(f=5…29.5Hz) ,EN60068-2-6 7gn(f=29.5…150Hz) ,EN60068-2-6 | ||||
| Certificate | FCC , CE,SRRC,ROHS | ||||
