How RFID Read Technology is Transforming Supply Chain Tracking

RFID read technology is reshaping how goods are tracked and managed across the supply chain. Unlike line-of-sight barcode scanning, RFID readers can detect and capture data from many tags simultaneously and at a distance, enabling fast, automated inventory counts, more accurate shipment verification, and continuous visibility from manufacturing through distribution to last-mile delivery. This article explains how RFID read capabilities drive that transformation, what system components are involved, how practical implementations look (including examples using Superisys IACM-P4 gateways and PLC integration), and which operational best practices and diagnostics keep systems reliable.

How RFID Read Works (Fundamentals)

RFID System Building Blocks

An RFID read system is built from three core elements:

1. RFID tags (carriers) — small transponders attached to items. Tags typically include a unique identifier (UID) area and a USER memory area. In many HF tags the UID is 8 bytes and read-only; the USER area is readable/writable depending on tag type and permissions.

2. RFID readers / read heads — devices that emit radio energy and interrogate tags; they receive tag responses and forward data to a controller or gateway.

3. Backend systems — software (WMS/ERP/MES) that receives, stores, and acts on the read data.

Read Process (Basic Flow)

Reader emits RF field (powering passive tags or talking with active tags). Tags respond with their data, which the reader captures. Data is transmitted to backend systems for processing and decision making. This enables real-time tracking and inventory management.

Practical Implementations in Industrial Settings

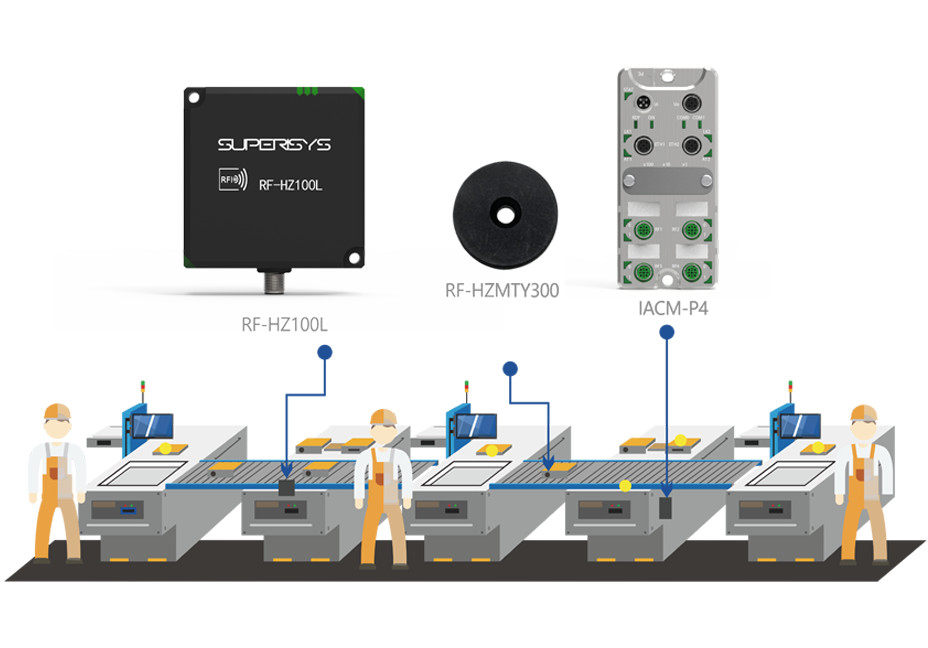

Using Superisys IACM-P4 Gateway and Omron PLCs

The Superisys IACM-P4 gateway connects multiple RFID readers to Omron NX1P2 PLCs using Ethernet/IP. This setup facilitates robust communication, allowing the PLC to process RFID data and integrate it into factory automation workflows.

Hardware Components

The main hardware components in this setup include:
- Omron NX1P2 PLC: Controls and communicates with the RFID gateway.
- Superisys IACM-P4 Gateway: Interfaces with the PLC and RFID readers.
- RFID Readers: Connected to the gateway; read and write RFID tags.
- RFID Tags: Store unique identification (UID) and user data (USER memory).

Software Configuration

Setting up the system involves:
1. Configuring the gateway’s IP address and network settings.
2. Adding the gateway device in Sysmac Studio under Ethernet/IP settings.
3. Mapping I/O memory areas between PLC and gateway.
4. Deploying and testing communication between PLC and gateway.

Benefits of RFID Read Technology in Supply Chain

Improved Inventory Accuracy:
RFID readers can scan multiple tags at once without line-of-sight, significantly reducing human error and time spent on stock counts.

Real-time Visibility:
Continuous monitoring throughout the supply chain enables proactive decision making and faster response to disruptions.

Automation and Efficiency:
Integration with PLCs and WMS systems allows automated triggering of workflows, such as replenishment and shipping.

Enhanced Security:
Unique tag identifiers and encrypted data communication prevent counterfeiting and unauthorized access.

Challenges and Best Practices

Despite its advantages, RFID read systems must address challenges such as interference, tag collision, and environmental factors. Best practices include careful tag selection, proper reader placement, and ongoing system diagnostics.

Conclusion

RFID read technology is revolutionizing supply chain management by providing fast, accurate, and automated tracking capabilities. With reliable hardware like the Superisys IACM-P4 gateway and seamless integration with industrial PLCs, businesses can achieve greater efficiency and visibility. Adopting RFID read technology is a strategic step towards modern, smart supply chain operations.
