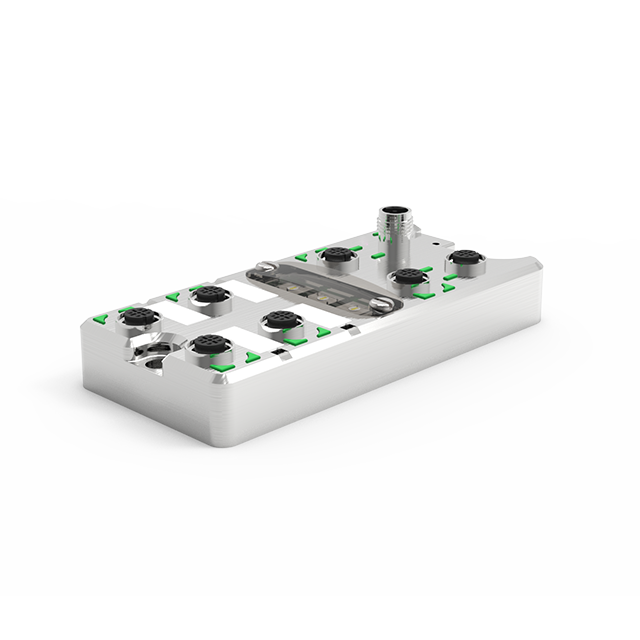

1.The IACM-PX series bus module is an RFID controller that offers standard industrial bus protocols, supporting ProfiNet, EtherCAT, EtherNet/IP, and MODBUS TCP protocols.
2.It includes two M12 T- CODE power supply interfaces, two M12 D-CODE 4-PIN bus interfaces, and either 2 or 4 M12 A-CODE RFID reader and writer interfaces.
3. The housing is made of a sturdy zinc alloy material, featuring wide connection range, strong communication capability, good environmental adaptability, and a high level of protection.
| Model | IACM-P4-PN | IACM-P4-ECT | IACM-P4-EIP | IACM-P4-EN |
| Communication protocol | ProfiNet | EtherCAT | EtherNet/IP | MODBUS TCP |
Shell Material | Aluminum Alloy | |||
| Color | Silver/ Black | |||
| Power supply | Rated voltage | 18~30VDC | ||
| Rated current | Imax<=0.3A@24V(Bus module own current) | |||
| Power supply mode | Independent dual power supply (system power UB, load power UL) | |||
| Power connector | T-CODE male/female 4 pins | |||
| Power protection | With reverse polarity protection, 3000W surge protection | |||
| Communication cable length | Max=100m | |||
| Communication interface | D-CODE M12 female, 4-pin | |||
| Network interface | Both network ports have integrated switch functions and comply with IEE802.3 standards | Single network port | ||
| Network topology | Star topology, tree topology | Star topology | Star topology, tree topology | Star topology |
| Number of RFIDs | 4 independent channels | |||
| RFID interface | A-CODE M12 female, 5-pin | |||
| Load capacity | VOUT=24V±20%,LOUT<=0.7A | |||
| Circuit protection | Power supply anti-reverse polarity, overvoltage and overcurrent protection | |||
| Fault Diagnosis | Supports Fault Diagnosis | |||
| Working temp. | -25°C~+70°C | |||
| Storage temperature | -40°C~+85°C | |||
| Degree of protection | IP67 | |||
| Product certification | FCC CE RoSH2.0 | |||
