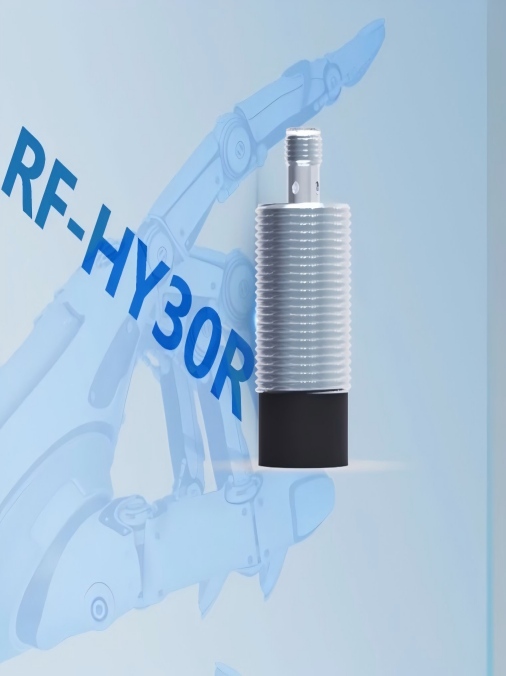

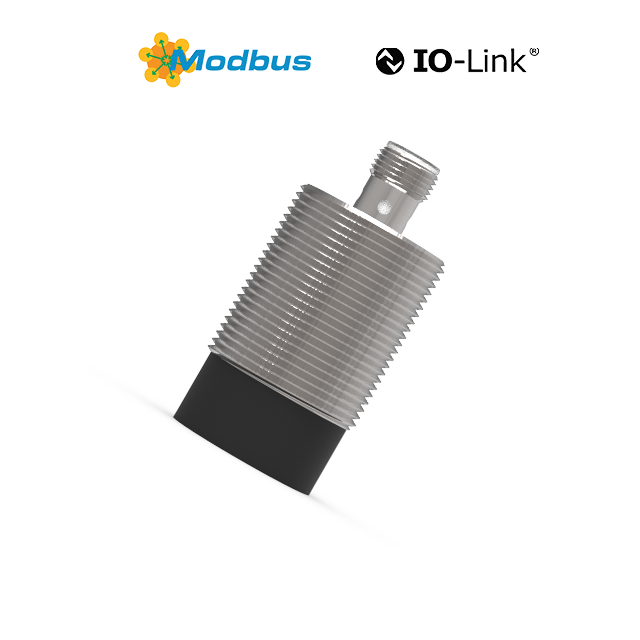

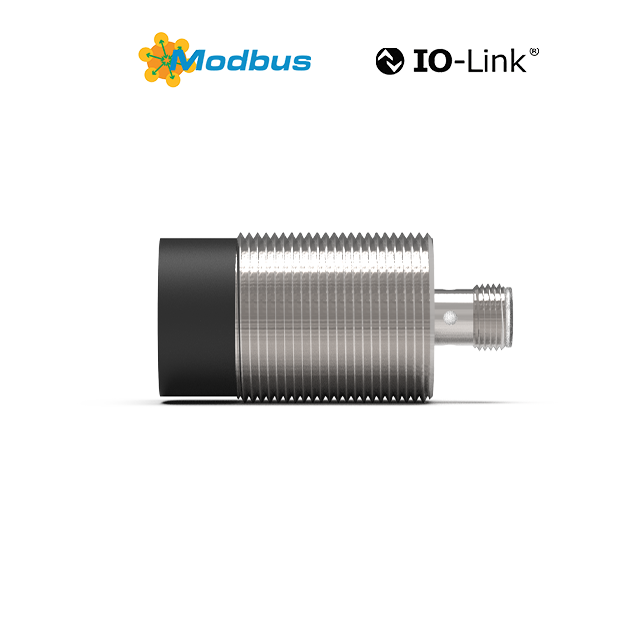

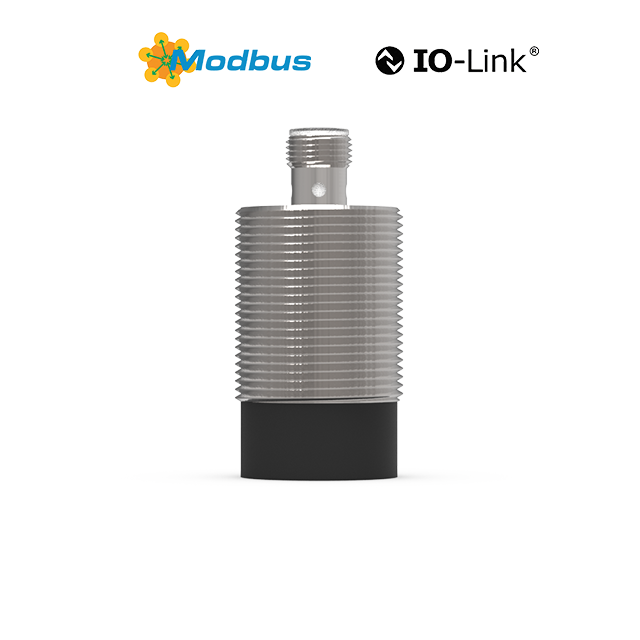

RF-HY30R
Superisys
| Availability: | |
|---|---|
| Quantity: | |
With high RF power, it can identify tags 80 within mm at the longest distance.
Intelligent anti-interference.
Automatic EMD suppression hassuper strong anti-electromagneticinterference ability.
Extreme Data Engine
The self-developed fast algorithmenables high-speed reading andwriting of 2000Bytes of large-capacitytag data within 1300ms, which is 30%faster than the industry standard andredefines the RFlD efficiencybenchmark.

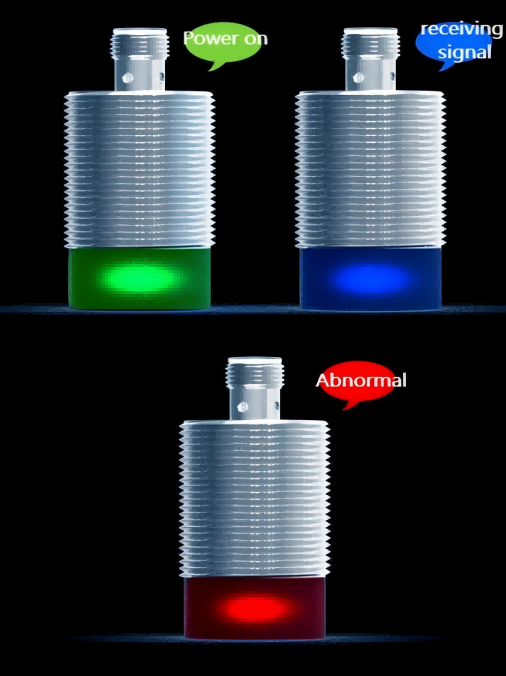

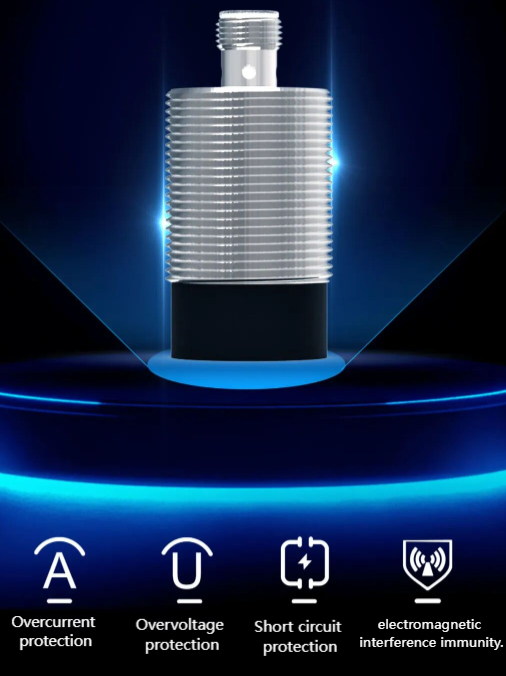

Three colors—red, yellow, and green—allow you to know the reading status at any time.

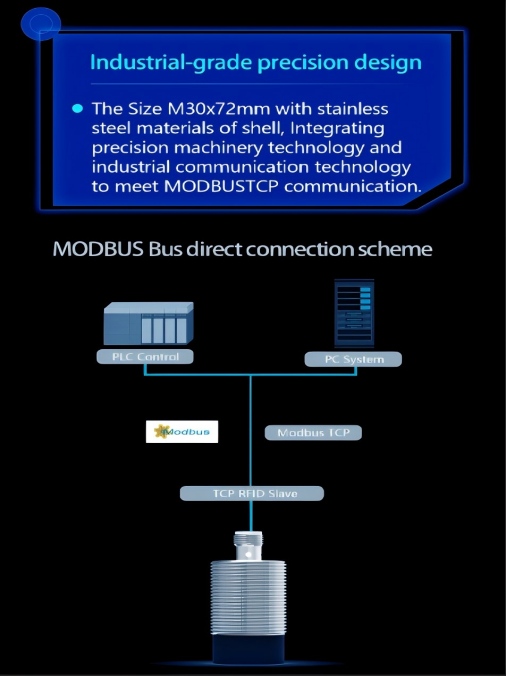

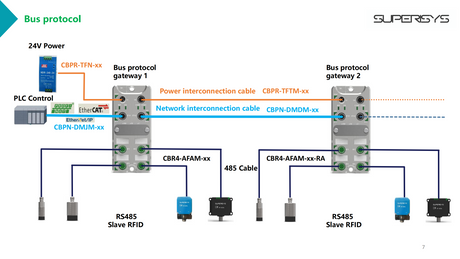

Support RS485,RS232,Ethernet,IO link protocol.
| product model | RF-HY30R-R4 | RF-HY30R-R2 | RF-HY30RE-TP | RF-HY30R-IOL |
| wireless protocol | ISO15693 | |||
| working frequency | 13.56MHz | |||
| output power | 27.5dBm | |||
| wireless speed | 26.48Kbit/s | |||
| Read distance | 0~60mm(Related to the loaded code body) | |||
| communication interface | RS485 | RS232 | Ethernet | IO Link |
| communication protocol | MODBUS RTU | MODBUS RTU | MODBUS TCP | IO-Link V1.1 |
| Communication rate | 9600~115200bit/s | 9600~115200bit/s | 10/100M (Adaptive) | 230.4kbps |
| Input | 9~30VDC | |||
| average current | ＜0.07A@24VDC | |||
| indicator light | 1 LED indicator | |||
| boundary dimension | M30×61mm | M30×61mm | M30×72mm | M30×72mm |
| Product interface | M12 Acode 4PIN male head | M12 Acode 4PIN male head | M12 Acode 8PIN male head | M12 Acode 8PIN male head |
| Installation | Nut fixed, screw tooth M30*1.5 | |||
| Material | Brass plated with nickel +ABS | |||
| Shell color | Silver + Black | |||
| total weight | 65g | 65g | 70g | 70g |
| operating temperature | ~25℃~+70℃ | |||
| storage temperature | ~40℃~+85℃ | |||
| humidity | 5%~95%RH(without condensation) | |||
| Waterproof and dustproof grade | IP67,EN 60529 | |||
| Resistance to vibration | 2 mm (f= 5…29.5 Hz ) , EN 60068-2-6 7 gn (f= 29.5…150 Hz) , EN 60068-2-6 | |||
| Conduction immunity (CS) | 3V, Class A (including main frequency) 10V, Class A (except main frequency) | |||
| Electrostatic discharge immunity ESD | Contact discharge, 8KV, Class A air discharge, 15KV, class A IEC61000-4-2 | |||
| Certificate | FCC CE | |||
| ROHS instruct | 2011/65/EU,2015/863/EU | |||
With high RF power, it can identify tags 80 within mm at the longest distance.
Intelligent anti-interference.
Automatic EMD suppression hassuper strong anti-electromagneticinterference ability.
Extreme Data Engine
The self-developed fast algorithmenables high-speed reading andwriting of 2000Bytes of large-capacitytag data within 1300ms, which is 30%faster than the industry standard andredefines the RFlD efficiencybenchmark.
Three colors—red, yellow, and green—allow you to know the reading status at any time.
Support RS485,RS232,Ethernet,IO link protocol.
| product model | RF-HY30R-R4 | RF-HY30R-R2 | RF-HY30RE-TP | RF-HY30R-IOL |
| wireless protocol | ISO15693 | |||
| working frequency | 13.56MHz | |||
| output power | 27.5dBm | |||
| wireless speed | 26.48Kbit/s | |||
| Read distance | 0~60mm(Related to the loaded code body) | |||
| communication interface | RS485 | RS232 | Ethernet | IO Link |
| communication protocol | MODBUS RTU | MODBUS RTU | MODBUS TCP | IO-Link V1.1 |
| Communication rate | 9600~115200bit/s | 9600~115200bit/s | 10/100M (Adaptive) | 230.4kbps |
| Input | 9~30VDC | |||
| average current | ＜0.07A@24VDC | |||
| indicator light | 1 LED indicator | |||
| boundary dimension | M30×61mm | M30×61mm | M30×72mm | M30×72mm |
| Product interface | M12 Acode 4PIN male head | M12 Acode 4PIN male head | M12 Acode 8PIN male head | M12 Acode 8PIN male head |
| Installation | Nut fixed, screw tooth M30*1.5 | |||
| Material | Brass plated with nickel +ABS | |||
| Shell color | Silver + Black | |||
| total weight | 65g | 65g | 70g | 70g |
| operating temperature | ~25℃~+70℃ | |||
| storage temperature | ~40℃~+85℃ | |||
| humidity | 5%~95%RH(without condensation) | |||
| Waterproof and dustproof grade | IP67,EN 60529 | |||
| Resistance to vibration | 2 mm (f= 5…29.5 Hz ) , EN 60068-2-6 7 gn (f= 29.5…150 Hz) , EN 60068-2-6 | |||
| Conduction immunity (CS) | 3V, Class A (including main frequency) 10V, Class A (except main frequency) | |||
| Electrostatic discharge immunity ESD | Contact discharge, 8KV, Class A air discharge, 15KV, class A IEC61000-4-2 | |||
| Certificate | FCC CE | |||
| ROHS instruct | 2011/65/EU,2015/863/EU | |||
Error Prevention and Traceability in Automated Assembly Lines
Scenario: Automated assembly lines for automotive engines, transmissions, or 3C products (such as mobile phone motherboards).
Implementation:
Implant labels into specific grooves in precision fixtures or trays carrying workpieces.

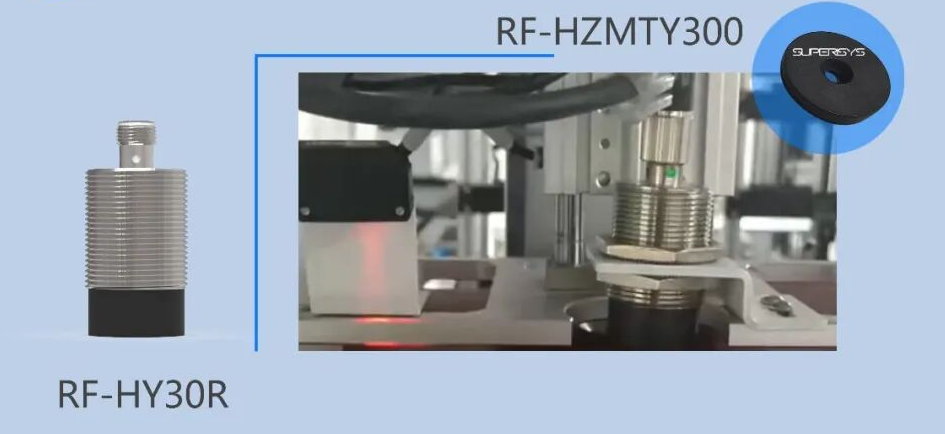

Embeddling the reader at fixed points in multiple critical workstations (such as tightening, gluing, pressing, and inspection stations), ensuring precise alignment of its reading surface with the label on the fixture.
Workflow:
Once the fixture moves to the workstation and is precisely positioned, the reader automatically reads the fixture label, obtaining the unique serial number and assembly instructions for the current product.
Based on this, the system automatically switches the robot program, the torque formula of the tightening gun, or the path parameters of the dispensing machine, ensuring "one item, one parameter".
Upon completion of assembly or testing, a success signal is received, the reader's green light illuminates, and the fixture is released; if an error occurs (such as missing parts), a red light illuminates, and the production line is locked.
| Minimum Order Quantity | one |
| Price | receive bargaining |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Description | RFID read/write head HF, external diameter M30×60mm, 13.56MHz |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
Error Prevention and Traceability in Automated Assembly Lines
Scenario: Automated assembly lines for automotive engines, transmissions, or 3C products (such as mobile phone motherboards).
Implementation:
Implant labels into specific grooves in precision fixtures or trays carrying workpieces.
Embeddling the reader at fixed points in multiple critical workstations (such as tightening, gluing, pressing, and inspection stations), ensuring precise alignment of its reading surface with the label on the fixture.
Workflow:
Once the fixture moves to the workstation and is precisely positioned, the reader automatically reads the fixture label, obtaining the unique serial number and assembly instructions for the current product.
Based on this, the system automatically switches the robot program, the torque formula of the tightening gun, or the path parameters of the dispensing machine, ensuring "one item, one parameter".
Upon completion of assembly or testing, a success signal is received, the reader's green light illuminates, and the fixture is released; if an error occurs (such as missing parts), a red light illuminates, and the production line is locked.
| Minimum Order Quantity | one |
| Price | receive bargaining |
| Delivery Time | 5-8 Work Days |
| Stock | In Stock |
| Description | RFID read/write head HF, external diameter M30×60mm, 13.56MHz |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
