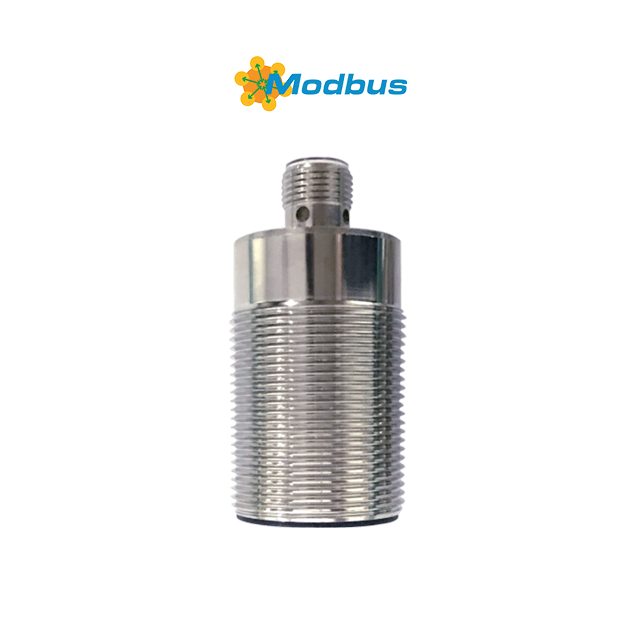

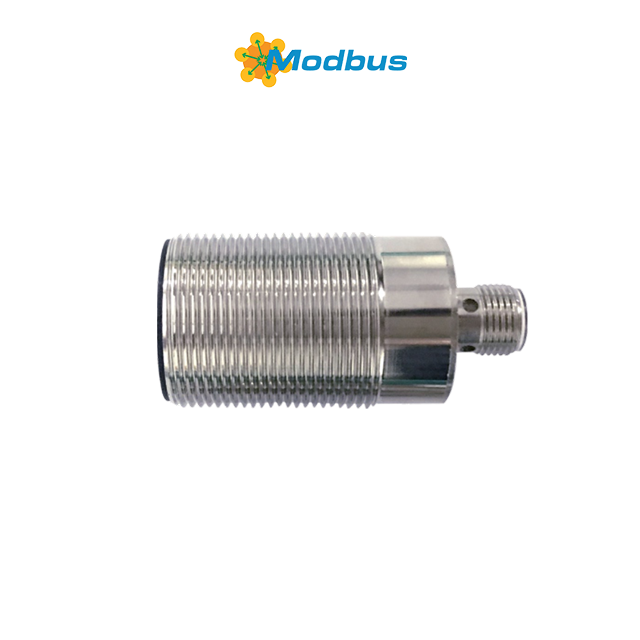

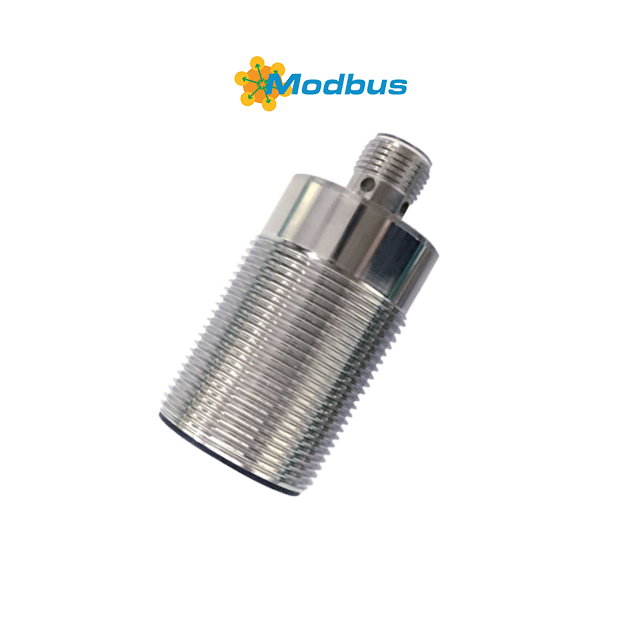

Product introduction
| product model | RF-HY30RE-R4 | RF-HY30RE-R2 |
| wireless protocol | ISO15693/ISO14443A | |
| working frequency | 13.56MHz | |
| output power | 27.5dBm | |
| wireless speed | 26.48Kbit/s | |
| Read distance | 0~30mm(Related to the loaded code body) | |
| communication interface | RS485 | RS232 |
| communication protocol | MODBUS RTU | |
| Communication rate | 9600~115200bit/s | |
| mains input | 9~30VDC | |
| average current | 9~30VDC | |

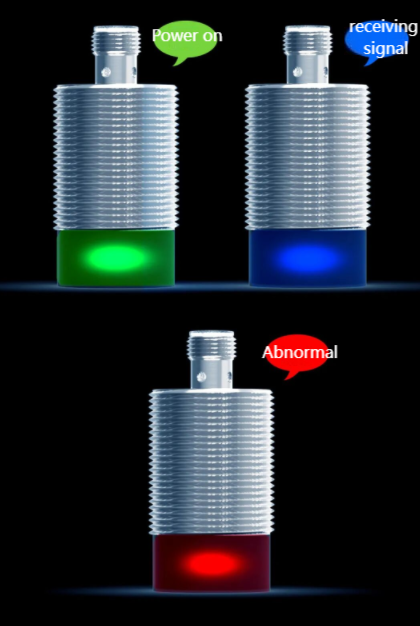

| indicator light | 1 LED indicator | |
| boundary dimension | M30×60mm | |
| Product interface | M12 Acode 4PIN male head | |
| fixture type | Nut fixed, screw tooth M18*1.5 | |
| canning material | Brass plated with nickel +ABS | |
| Shell color | Silver + Black | |
| total weight | 65g | |
| operating temperature | ~25℃~+70℃ | |
| storage temperature | ~25℃~+85℃ | |
| humidity | 5%~95%RH(without condensation) | |
| Waterproof and dustproof grade | IP67,EN 60529 | |
| Resistance to vibration | 2 mm (f= 5…29.5 Hz ) , EN 60068-2-6 7 gn (f= 29.5…150 Hz) , EN 60068-2-6 | |
| Conduction immunity (CS) | 3V, Class A (including main frequency) 10V, Class A (except main frequency) | |
| Electrostatic discharge immunity ESD | Contact discharge, 8KV, Class A air discharge, 15KV, class A IEC61000-4-2 | |
| CE | ETSI EN 301 489-3, ETSI EN 300 330-1, ETSI EN 301 489-1, ETSI EN 300 330-2 | |
| ROHS instruct | 2011/65/EU,2015/863/EU | |
