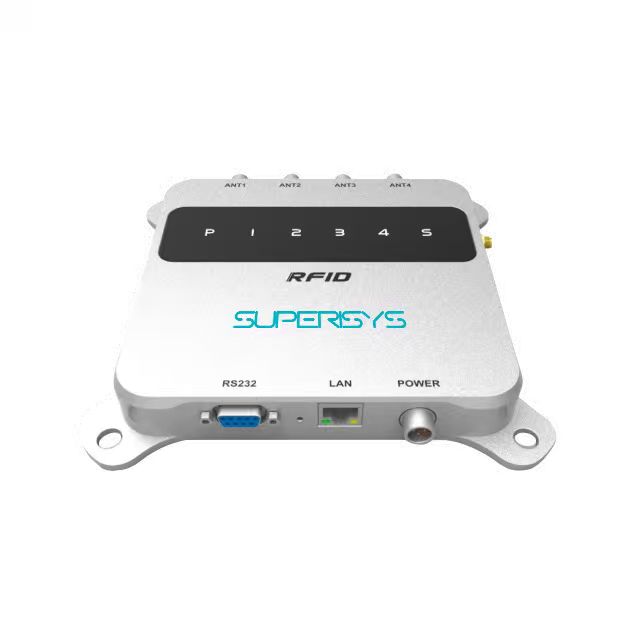

RF-US183-4ANT
Superisys
| Availability: | |
|---|---|
| Quantity: | |
Split-type design:
Reader main unit: Includes core processor, memory, communication module (Bluetooth/Wi-Fi/4G), and power supply. Typically compact for easy installation in control cabinets, walls, or pillars.
4 independent RF ports: Can connect up to 4 external RFID antennas. This is the core of its "4-channel" design, allowing for wider coverage or complex multi-antenna layouts.
Advantages: Extremely high flexibility. The main unit can be placed in a well-ventilated location, while the antennas extend via RF cables to the most needed coverage points (such as doorways, conveyor belts, shelves), with an effective distance of tens of meters (using low-loss cables).
In addition to the RF interface, it is often equipped with a variety of industrial interfaces, such as: GPIO (for connecting indicator lights, alarms, and trigger sensors), RS232/485 (for connecting traditional devices such as PLCs and barcode scanners), and Ethernet port (as a backup or main connection for wired networks).
| Type | RF-US183-4ANT |
| Working frequency | 840-960Mhz |
| Wireless protocol | ISO 18000-6C（Class 1 Gen 2） |
| Output power | 0-30dBm+1dB，Step 1dB |
| Communicatjion interface | RJ45: 10M/100M adaptive network port |
| Communication interface (optional) | Bluetooth: BLE5.2, wireless standard (802.15.1), 2.4GHz WIFI: wireless standard (802.11b/g/n), 2.4GHz, supports Open/WEP/WPA- PSK/WPA2-PSK security mode, AP, STA mode 4G: full network access, standard (TD-LTE/FDD-LTE) |
| Antenna interface | 4 TNC interfaces (male external thread) |
| Power supply voltage | Power supply 9-24V Standard adapter 12V/3A POE power supply (compatible with 802.3af or 802.3at standards) |
| Power consumption | Standby 1.6W Working 10.8W (MAX) |
| Tag reading rate | ＞900 tags/second |
| Read distance | Greater than 10 meters, using 8dbi aluminum antenna The writing distance is about 50% of the reading distance. The specific reading and writing performance depends on the antenna and tag used |
| I/O | 4 input/4 output |
| Installation | 4*M5 screwing |
| Electrostatic Discharge Immunity ESD | Contact discharge: 6KV, EFT: 2KV |
| Shell material | Aluminum Alloy |
| Working temperature | -20-65℃ |
| Storage temperature | -40-85℃ |
| Humidity | 5%-95%RH |
Split-type design:
Reader main unit: Includes core processor, memory, communication module (Bluetooth/Wi-Fi/4G), and power supply. Typically compact for easy installation in control cabinets, walls, or pillars.
4 independent RF ports: Can connect up to 4 external RFID antennas. This is the core of its "4-channel" design, allowing for wider coverage or complex multi-antenna layouts.
Advantages: Extremely high flexibility. The main unit can be placed in a well-ventilated location, while the antennas extend via RF cables to the most needed coverage points (such as doorways, conveyor belts, shelves), with an effective distance of tens of meters (using low-loss cables).
In addition to the RF interface, it is often equipped with a variety of industrial interfaces, such as: GPIO (for connecting indicator lights, alarms, and trigger sensors), RS232/485 (for connecting traditional devices such as PLCs and barcode scanners), and Ethernet port (as a backup or main connection for wired networks).
| Type | RF-US183-4ANT |
| Working frequency | 840-960Mhz |
| Wireless protocol | ISO 18000-6C（Class 1 Gen 2） |
| Output power | 0-30dBm+1dB，Step 1dB |
| Communicatjion interface | RJ45: 10M/100M adaptive network port |
| Communication interface (optional) | Bluetooth: BLE5.2, wireless standard (802.15.1), 2.4GHz WIFI: wireless standard (802.11b/g/n), 2.4GHz, supports Open/WEP/WPA- PSK/WPA2-PSK security mode, AP, STA mode 4G: full network access, standard (TD-LTE/FDD-LTE) |
| Antenna interface | 4 TNC interfaces (male external thread) |
| Power supply voltage | Power supply 9-24V Standard adapter 12V/3A POE power supply (compatible with 802.3af or 802.3at standards) |
| Power consumption | Standby 1.6W Working 10.8W (MAX) |
| Tag reading rate | ＞900 tags/second |
| Read distance | Greater than 10 meters, using 8dbi aluminum antenna The writing distance is about 50% of the reading distance. The specific reading and writing performance depends on the antenna and tag used |
| I/O | 4 input/4 output |
| Installation | 4*M5 screwing |
| Electrostatic Discharge Immunity ESD | Contact discharge: 6KV, EFT: 2KV |
| Shell material | Aluminum Alloy |
| Working temperature | -20-65℃ |
| Storage temperature | -40-85℃ |
| Humidity | 5%-95%RH |
1. Smart Warehousing and Logistics Center
Application: Serves as the core of inbound/outbound access gates. Four ports can connect to 2-4 antennas, creating a comprehensive, blind-spot-free identification portal (left, right, top), ensuring 100% readability regardless of pallet lbel location.
Advantages: Wi-Fi or 4G connectivity eliminates the network cabling cost of adding new portal points in existing warehouses, enabling rapid deployment. Data is synchronized to the cloud-based WMS in real-time via 4G.
2. Flexible Production Line and Workstation Management
Application: On assembly lines, four antennas cover a complex workstation (e.g., different sides of an assembly table), ensuring accurate identification of work-in-process from any direction, triggering corresponding work instructions or data binding.
Advantages: The modular design allows the main unit to be placed inside the production line control cabinet, with the antennas compactly embedded in tooling fixtures for a clean and safe design. Bluetooth facilitates on-site debugging.
3. Mobile and Outdoor Asset Tracking
Applications:
Vehicle-mounted Inventory: Installed on forklifts or inspection vehicles, it reports the location of shelves or asset tags read during movement within the warehouse in real time via 4G, enabling dynamic inventory management.
Container Yards/Port Terminals: Installed on outdoor fixed poles or mobile devices, it remotely identifies and tracks the location and status of containers and trailers via 4G networks.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
1. Smart Warehousing and Logistics Center
Application: Serves as the core of inbound/outbound access gates. Four ports can connect to 2-4 antennas, creating a comprehensive, blind-spot-free identification portal (left, right, top), ensuring 100% readability regardless of pallet lbel location.
Advantages: Wi-Fi or 4G connectivity eliminates the network cabling cost of adding new portal points in existing warehouses, enabling rapid deployment. Data is synchronized to the cloud-based WMS in real-time via 4G.
2. Flexible Production Line and Workstation Management
Application: On assembly lines, four antennas cover a complex workstation (e.g., different sides of an assembly table), ensuring accurate identification of work-in-process from any direction, triggering corresponding work instructions or data binding.
Advantages: The modular design allows the main unit to be placed inside the production line control cabinet, with the antennas compactly embedded in tooling fixtures for a clean and safe design. Bluetooth facilitates on-site debugging.
3. Mobile and Outdoor Asset Tracking
Applications:
Vehicle-mounted Inventory: Installed on forklifts or inspection vehicles, it reports the location of shelves or asset tags read during movement within the warehouse in real time via 4G, enabling dynamic inventory management.
Container Yards/Port Terminals: Installed on outdoor fixed poles or mobile devices, it remotely identifies and tracks the location and status of containers and trailers via 4G networks.
| Parameter | Specification |
| Minimum Order Quantity | one |
| Price | Discuss personally |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000 per day |
